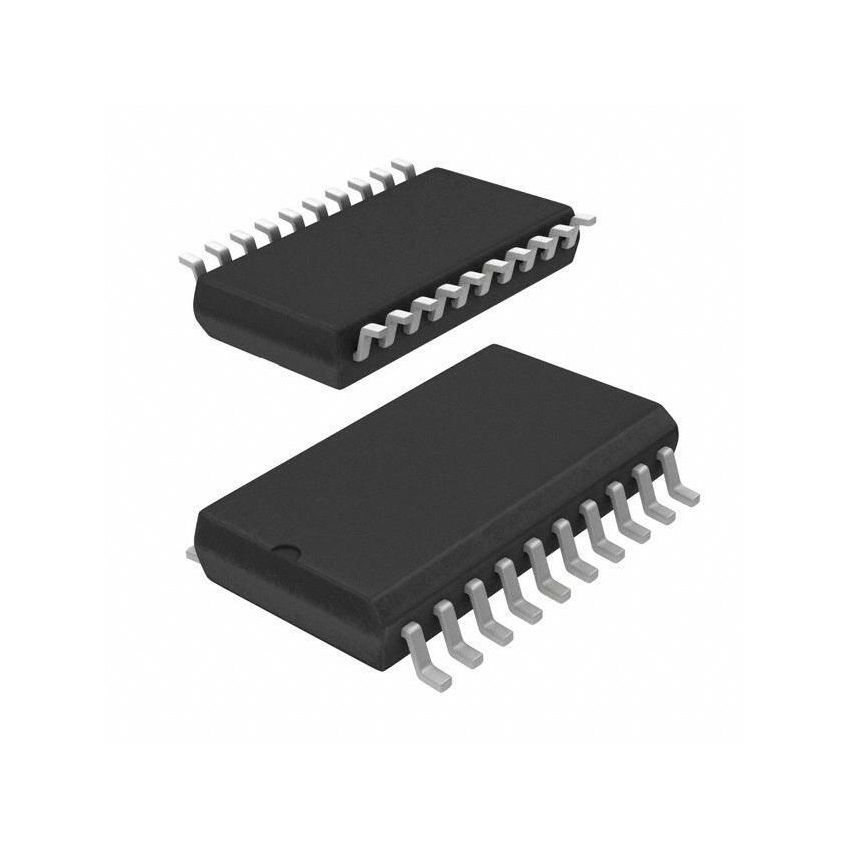

HIP4081AIBZ SMD IC 15 V 2.5 A 530 mW Quad Output Mosfet Driver - SOIC20

The HIP4081AIBZ is a high-frequency, quad MOSFET driver designed to efficiently control N-channel MOSFETs in a variety of power conversion and motor control applications. This SMD (Surface Mount Device) IC, housed in a compact SOIC20 package, operates at a supply voltage of 15V and can deliver a peak output current of 2.5A per channel. With a power dissipation of 530mW, the HIP4081AIBZ is optimized for high-speed switching and minimal power loss, making it an excellent choice for demanding applications such as synchronous rectifiers, DC-DC converters, and motor drivers. Its quad-channel configuration allows for versatile control of multiple MOSFETs, simplifying circuit design and reducing component count.

Key specifications of the HIP4081AIBZ include a wide input voltage range, fast rise and fall times, and integrated bootstrap diodes for high-side gate drive. The device features independent control of each channel, enabling flexible configuration for various applications. Its adaptive dead-time control minimizes body diode conduction, improving efficiency and reducing heat generation. The HIP4081AIBZ also incorporates undervoltage lockout (UVLO) protection to prevent MOSFETs from operating in a partially enhanced state, ensuring reliable and safe operation. The SOIC20 package provides excellent thermal performance and is compatible with standard surface mount assembly techniques.

The HIP4081AIBZ finds extensive use in synchronous rectification circuits, where it drives MOSFETs to improve the efficiency of power supplies and DC-DC converters. In motor control applications, it provides precise control of MOSFETs to regulate motor speed and torque. The quad-channel configuration allows for driving multiple phases of a motor, enabling smooth and efficient operation. Its high switching speed and low propagation delay make it suitable for high-frequency power conversion applications. The HIP4081AIBZ is also used in uninterruptible power supplies (UPS) and other power management systems.

When integrating the HIP4081AIBZ into your circuit, consider its key parameters in relation to your specific application requirements. Ensure that the supply voltage and output current are within the specified limits. Utilize proper layout techniques to minimize parasitic inductance and capacitance, which can affect switching performance. Carefully select the external components, such as gate resistors and bootstrap capacitors, to optimize the driver's performance. The HIP4081AIBZ is a reliable and efficient solution for MOSFET driving, offering a balance of performance and features. Its widespread availability and comprehensive documentation make it a popular choice for both new designs and legacy system upgrades.

In summary, the HIP4081AIBZ is a high-performance quad MOSFET driver in a compact SOIC20 package, designed for efficient control of N-channel MOSFETs in power conversion and motor control applications. Its key features include high switching speed, low propagation delay, and integrated bootstrap diodes. Whether you're designing a synchronous rectifier, DC-DC converter, or motor driver, the HIP4081AIBZ offers a proven solution. Don't compromise on efficiency and performance. Order your HIP4081AIBZ SMD IC today and experience the difference in your power electronic designs!
