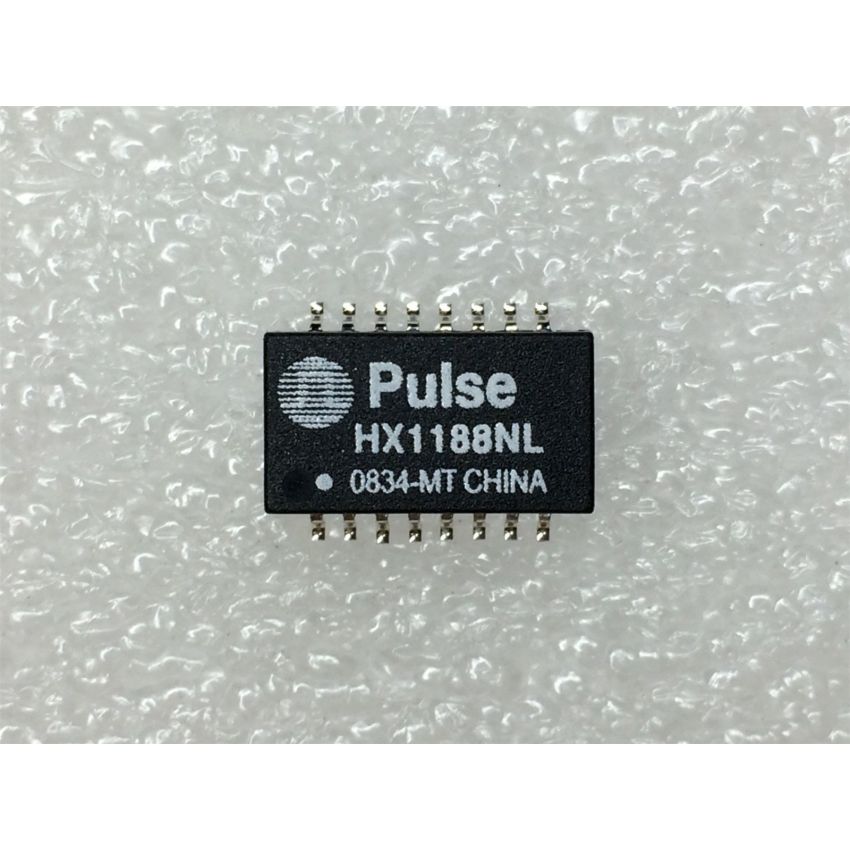

HX1188NL PULSE MODULE XFRMR SGL ETHR LAN 16SOIC

The HX1188NL is a high-performance single-port Ethernet LAN transformer module from Pulse Electronics, packaged in a compact 16-SOIC (Small Outline Integrated Circuit) form factor. This module is specifically designed to provide signal isolation and impedance matching for Ethernet applications, ensuring reliable data transmission and compliance with IEEE 802.3 standards. The HX1188NL is ideal for use in network interface cards (NICs), embedded systems, and industrial Ethernet devices. Its single-port configuration simplifies integration into existing designs, while its small size minimizes board space requirements. The transformer module provides galvanic isolation between the Ethernet PHY (Physical Layer) and the network cable, protecting sensitive electronic components from voltage surges and noise. The HX1188NL features excellent common-mode rejection, which helps to reduce noise and interference, improving signal integrity.

Its low insertion loss ensures that signals are transmitted with minimal attenuation, maximizing network performance. The 16-SOIC package is suitable for surface mount technology (SMT), allowing for automated assembly and high-volume production. The HX1188NL is a popular choice among engineers and designers due to its exceptional performance characteristics and ease of use. It is suitable for both 10/100Base-T Ethernet applications, offering flexibility in network design. The module is also RoHS compliant, ensuring that it meets environmental regulations. Its high isolation voltage provides added protection against voltage spikes and electrical hazards.

This transformer module is a versatile component that can be used in a wide range of Ethernet applications. Its robust construction and reliable performance make it a cost-effective solution for demanding network environments. The HX1188NL is backed by Pulse Electronics' reputation for quality and innovation, ensuring that you are investing in a product that will deliver exceptional performance and long-term reliability. Its comprehensive datasheet provides detailed information on its electrical characteristics and performance specifications, making it easy to integrate into your designs. The HX1188NL is an essential component for any Ethernet network designer or engineer. Enhance your network connectivity with the HX1188NL PULSE MODULE XFRMR SGL ETHR LAN 16SOIC and experience the difference in performance and reliability.

Order yours today and take your network designs to the next level. Add to cart now!
