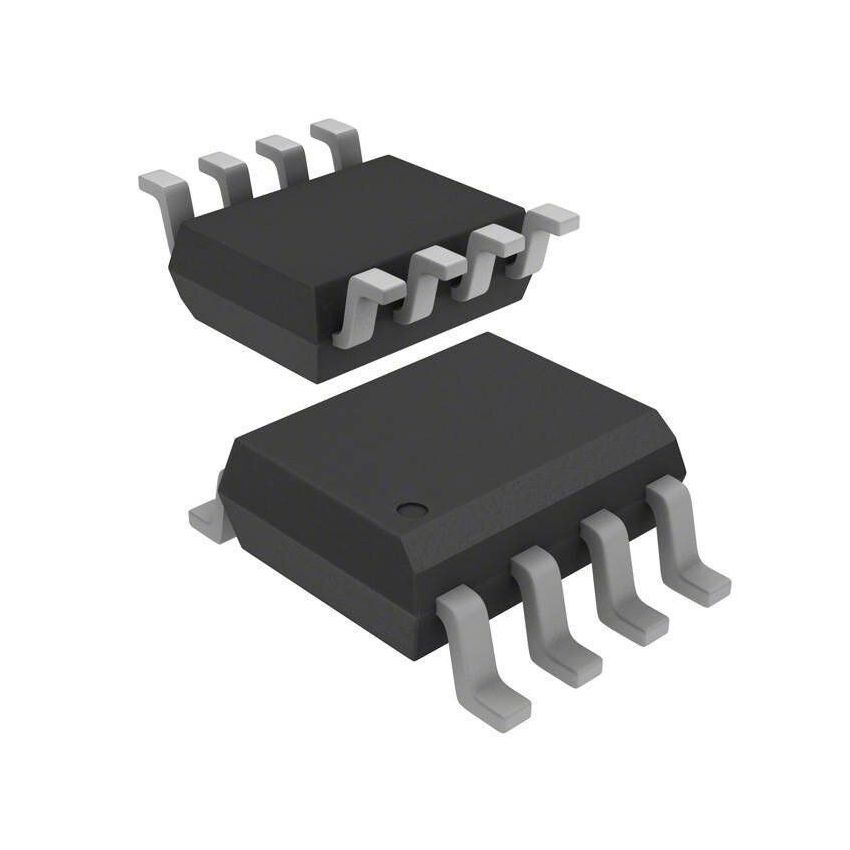

ICL7660AIBA IC REG SWTCHD CAP INV 45MA 8SOIC

The ICL7660AIBA is a monolithic CMOS voltage converter designed to perform simple voltage inversion with minimal external components. Encased in an 8-pin Small Outline Integrated Circuit (SOIC) package, this IC efficiently converts a positive input voltage to a corresponding negative output voltage. It operates as a switched-capacitor voltage inverter, providing a cost-effective and space-saving solution for generating negative voltages in various electronic applications. Its low power consumption and ease of use make it a popular choice for battery-powered devices, portable instruments, and other applications where a negative voltage supply is required.

This voltage converter IC offers a wide range of features that enhance its versatility and ease of use. It operates over a wide input voltage range, typically from 1.5V to 10V, allowing it to be used with various power supply voltages. The ICL7660AIBA requires only two external capacitors for operation, simplifying the design and minimizing the number of external components. It provides a typical output current of 45mA, sufficient for powering many low-power analog and digital circuits. The 8-SOIC package is easy to solder and integrate into surface-mount designs. The IC is designed for low quiescent current.

The ICL7660AIBA finds applications in a variety of electronic circuits where a negative voltage supply is needed. It can be used to generate a negative bias voltage for operational amplifiers, analog-to-digital converters (ADCs), and other analog circuits. It can also be used to create a dual-supply voltage for powering both positive and negative voltage rails in electronic devices. The IC is commonly used in battery-powered instruments, portable devices, and other applications where space and power are limited. It is a versatile component for many designs.

Compared to other voltage inversion techniques, such as using transformers or dedicated DC-DC converters, the ICL7660AIBA offers significant advantages in terms of size, cost, and simplicity. Its compact 8-SOIC package saves valuable board space, allowing for smaller and more compact designs. The low component count reduces the cost of the overall solution. The ease of use simplifies the design process and minimizes the risk of errors. The ICL7660AIBA provides a convenient and efficient way to generate negative voltages in a wide range of applications.

If you're looking for a simple, efficient, and cost-effective way to generate a negative voltage for your next project, the ICL7660AIBA is an excellent choice. Its compact size, low power consumption, and ease of use make it a valuable addition to any electronics toolkit. Whether you're building a battery-powered instrument, a portable device, or an analog circuit, this IC will simplify your design and provide a reliable negative voltage supply. Order your ICL7660AIBA today and experience the convenience and performance of this versatile voltage converter!
