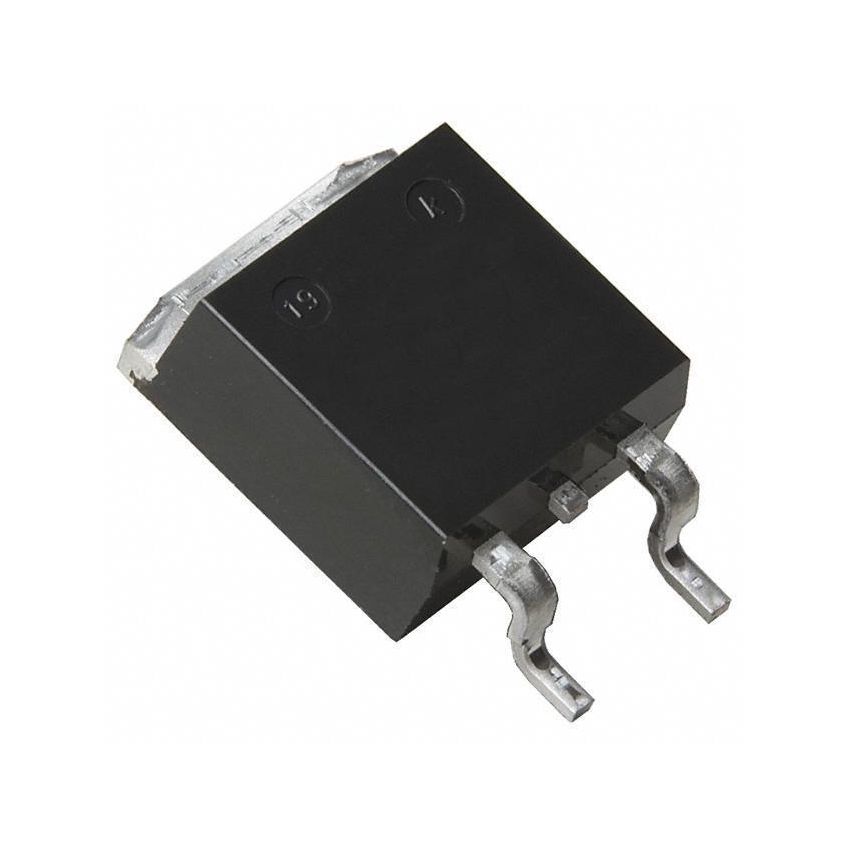

IPB80N06S4L05ATMA2 MOSFET N-CH 60V 80A TO263-3

The IPB80N06S4L05ATMA2 is a high-performance N-channel MOSFET designed for a wide range of power switching applications. Encased in a TO263-3 package, this MOSFET boasts a voltage rating of 60V and a continuous drain current of 80A, making it suitable for demanding applications requiring efficient power management. Its low on-resistance (RDS(on)) minimizes power losses, enhancing overall system efficiency. The IPB80N06S4L05ATMA2 is engineered for superior thermal performance, ensuring reliable operation even under high load conditions. This MOSFET is an excellent choice for synchronous rectification, DC-DC converters, and motor control applications.

This N-channel MOSFET features advanced trench technology, which optimizes its performance characteristics and reduces switching losses. The low gate charge (Qg) enables fast switching speeds, improving efficiency and reducing heat generation. The IPB80N06S4L05ATMA2 is designed to withstand high avalanche energy, providing robust protection against voltage transients. Its lead-free construction complies with environmental regulations, making it a sustainable choice for modern electronic designs. The MOSFET's compact TO263-3 package allows for efficient heat dissipation and easy integration into various circuit layouts.

Key specifications of the IPB80N06S4L05ATMA2 include a drain-source voltage (VDS) of 60V, a continuous drain current (ID) of 80A, and a typical on-resistance (RDS(on)) of 5 mΩ at VGS = 10V. The gate charge (Qg) is typically 25 nC, and the total power dissipation is 107W. The operating temperature range spans from -55°C to +175°C, ensuring reliable performance in harsh environments. The MOSFET's fast switching speed and low on-resistance contribute to its high efficiency and suitability for demanding power applications. Its robust design and comprehensive datasheet make it a dependable choice for engineers and designers.

The IPB80N06S4L05ATMA2 finds applications in various industries, including automotive, industrial, and consumer electronics. It is commonly used in synchronous rectification circuits in power supplies, DC-DC converters for voltage regulation, and motor control systems for efficient energy management. In automotive applications, it can be used in electronic power steering (EPS) systems and other high-current applications. Its high efficiency and reliability make it suitable for use in solar inverters and other renewable energy systems. The IPB80N06S4L05ATMA2 is a versatile and high-performance MOSFET for a wide range of power switching applications.

Enhance your power management solutions with the IPB80N06S4L05ATMA2 MOSFET. Its high current capacity, low on-resistance, and fast switching speed make it an ideal choice for demanding applications. Whether you're designing a synchronous rectifier, DC-DC converter, or motor control system, this MOSFET delivers exceptional performance and reliability. Don't compromise on efficiency and robustness. Order your IPB80N06S4L05ATMA2 today and experience the difference in power management!
