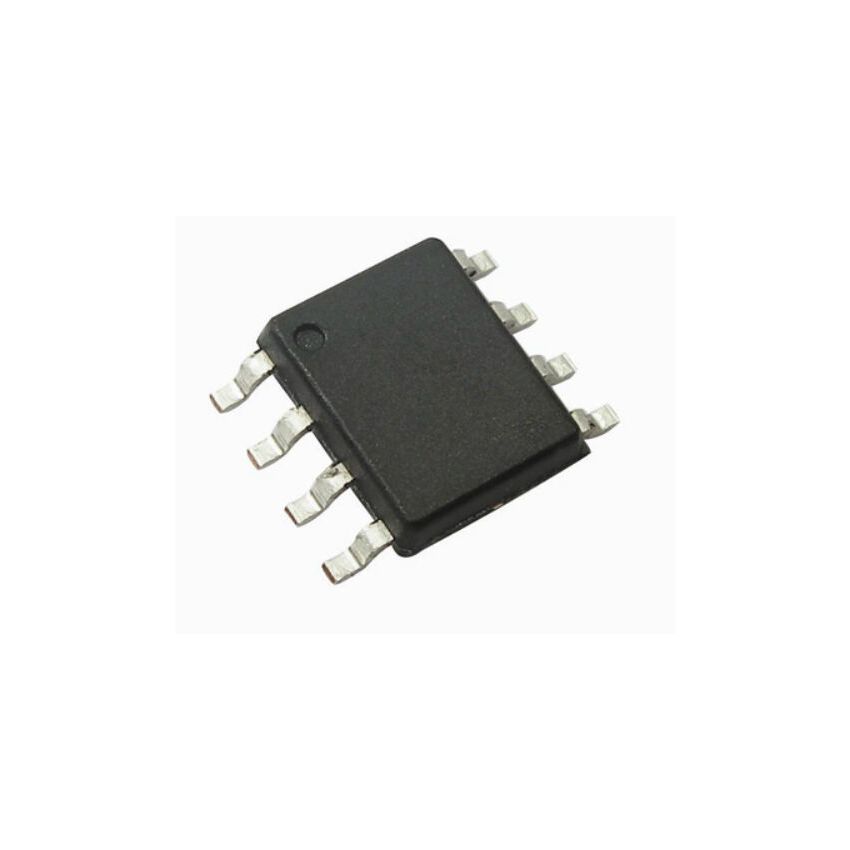

IR2104S SMD INTEGRATED CIRCUIT SOP-8

The IR2104S is a sophisticated high-voltage, high-speed power MOSFET and IGBT driver with independent high and low side referenced output channels. Housed in a compact SOP-8 surface-mount package, this integrated circuit is designed to simplify the complexities of driving half-bridge power topologies. It features proprietary HVIC and latch-immune CMOS technologies that enable a ruggedized monolithic construction, ensuring high reliability in demanding electrical environments. The logic input is compatible with standard CMOS or LSTTL outputs, down to 3.3V logic, making it easy to interface with modern microcontrollers and digital signal processors. The IR2104S is an essential component for designers working on motor drives, high-frequency switching converters, and uninterruptible power supplies (UPS) where precise gate control is required for efficiency and safety.

A key feature of the IR2104S is its floating channel design, which allows it to drive an N-channel power MOSFET or IGBT in the high-side configuration that operates up to 600 volts. This is achieved through an external bootstrap capacitor and diode, providing the necessary gate-to-source voltage even when the high-side switch is floating. The IC also includes an internal dead-time of 520 nanoseconds, which is critical for preventing shoot-through currents in half-bridge configurations. Shoot-through occurs when both the high and low side switches are on simultaneously, potentially causing catastrophic failure of the power stage. By integrating this protection directly into the driver, the IR2104S reduces the complexity of the control software and improves the overall robustness of the power system, allowing for safer and more efficient power conversion.

The SOP-8 package of the IR2104S is ideal for modern, high-density circuit board designs where space is at a premium. Surface-mount technology allows for automated assembly and reduces the overall size of the power module. Despite its small size, the IR2104S provides significant output drive capability, with a typical sourcing current of 130mA and a sinking current of 270mA. This ensures that the power switches can be turned on and off rapidly, minimizing switching losses and allowing for high-frequency operation. The IC also features an under-voltage lockout (UVLO) function for both the high and low side channels. This feature ensures that the MOSFETs are not driven into their linear region if the supply voltage is too low, which prevents excessive heating and potential damage to the power components.

In the world of motor control, the IR2104S is a highly valued component for driving brushless DC (BLDC) motors and stepper motors. Its ability to handle high-side driving makes it easy to implement full-bridge and three-phase bridge circuits. The shutdown input (SD) provides an additional layer of control, allowing the system to disable both outputs instantly in response to a fault signal from a current sensor or thermal monitor. This rapid response is vital for protecting both the motor and the electronics from over-current conditions. For engineers designing electric vehicle drivetrain controllers or industrial robotics, the IR2104S offers a proven and reliable solution that balances performance with integrated protection features. Its high-speed operation also supports advanced pulse-width modulation (PWM) techniques for smooth and efficient motor torque control.

Beyond motor drives, the IR2104S is widely used in Class-D audio amplifiers and induction heating systems. In these applications, high switching speeds and precise timing are essential for achieving high efficiency and low distortion. The IR2104S's low propagation delay ensures that the output stage accurately follows the input signal, maintaining the integrity of the power conversion process. The device's high-voltage capability also makes it suitable for solar inverters and grid-tie systems, where it can safely manage the high DC bus voltages. Its robust design is resistant to the high dV/dt transients that are common in these high-power switching environments, ensuring long-term stability and reducing the need for extensive external filtering or snubber circuits. This makes the IR2104S a cost-effective and space-saving choice for green energy solutions.

When you choose the IR2104S for your project, you are selecting a gate driver that is trusted by engineers worldwide for its performance and reliability. We provide genuine IR2104S ICs that are manufactured to the highest standards, ensuring that your power stages operate exactly as designed. Whether you are building a custom power converter, a high-performance motor driver, or a specialized audio system, this SOP-8 gate driver will provide the precision and protection you need. Our store offers competitive pricing and fast shipping to keep your development timeline on track. Enhance your power electronics designs with the IR2104S and experience the benefits of integrated dead-time control and high-side floating channel technology. Order now to secure this essential component for your next high-performance switching application and take your power management to the next level.
