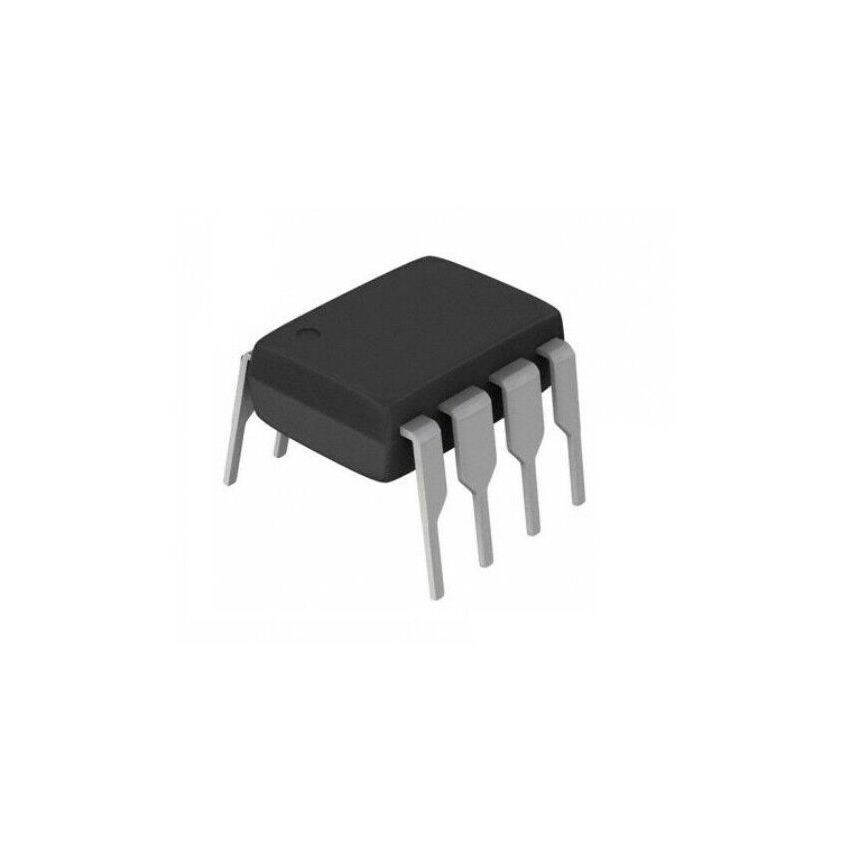

IR2117 INTEGRATED CIRCUIT MOSFET DRIVER SGL-CH 8-DIP

The IR2117 is a high-voltage, high-speed power MOSFET driver integrated circuit, designed to drive a single N-channel MOSFET in a half-bridge configuration. Encased in an 8-pin Dual In-Line Package (8-DIP), this IC provides a robust and efficient solution for driving power MOSFETs in a variety of applications, including motor control, power supplies, and lighting ballasts. The IR2117 features a floating channel designed for bootstrap operation, allowing it to drive a high-side N-channel MOSFET with a voltage that can exceed the supply voltage. This is achieved by using a bootstrap capacitor to charge the gate of the high-side MOSFET. The IC also includes a gate drive voltage clamp, which limits the gate voltage to a safe level, protecting the MOSFET from overvoltage damage. The IR2117 operates from a wide supply voltage range, typically from 10V to 20V, making it suitable for a variety of power supply applications.

Its high-speed switching capability, with typical rise and fall times of less than 100ns, allows for efficient operation at high frequencies. The IC also includes undervoltage lockout (UVLO) protection, which prevents the MOSFET from being driven when the supply voltage is too low, protecting the MOSFET from damage. The IR2117 is commonly used in applications such as motor control, power supplies, and lighting ballasts. Its high-voltage capability, high-speed switching, and robust protection features make it an excellent choice for demanding power MOSFET driving applications. When designing with the IR2117, it is important to carefully select the external components, such as the bootstrap capacitor and the gate resistor, to ensure optimal performance and stability. The datasheet provides detailed information on component selection, as well as recommended operating conditions.

Additionally, proper layout techniques should be used to minimize noise and ensure stable operation. The IR2117 offers a cost-effective and reliable solution for driving power MOSFETs in a variety of applications. Its high-voltage capability, high-speed switching, and robust protection features make it a versatile choice for a variety of electronic systems. Enhance your power MOSFET driving capabilities with the IR2117 INTEGRATED CIRCUIT MOSFET DRIVER SGL-CH 8-DIP. Order yours today and experience the difference in performance and reliability!
