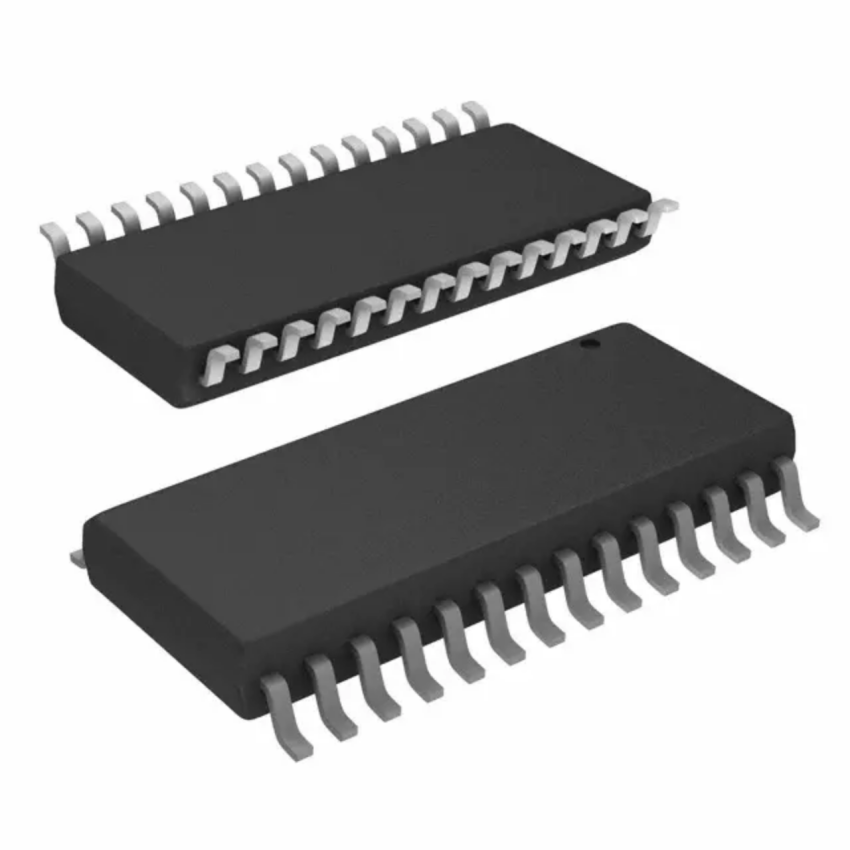

IR2136S IC GATE DRVR HALF-BRIDGE 28SOIC

The IR2136S is a robust and highly integrated high-voltage gate driver IC designed for driving three-phase half-bridge configurations. Encased in a compact 28SOIC package, this gate driver offers a comprehensive solution for motor control applications, power inverters, and other high-power switching systems. Its advanced features include overcurrent protection, undervoltage lockout, and shoot-through prevention, ensuring reliable and safe operation of power electronic circuits. The IR2136S simplifies the design process by integrating multiple functions into a single chip, reducing component count and board space.

This half-bridge gate driver is specifically designed to drive MOSFETs and IGBTs, providing the necessary gate drive voltage and current for efficient switching. The IR2136S incorporates high-side and low-side drivers, each capable of delivering substantial current to quickly switch power devices. Its floating channel design allows for bootstrap operation, enabling the high-side driver to operate at voltages significantly above the supply voltage. The device's input logic is compatible with standard CMOS and LSTTL logic levels, facilitating easy interfacing with microcontrollers and other control circuits.

The IR2136S is widely used in applications such as motor drives, uninterruptible power supplies (UPS), and industrial automation systems. Its robust protection features safeguard the power devices from damage due to overcurrent or undervoltage conditions. The device's high noise immunity ensures reliable operation in harsh industrial environments. The IR2136S's compact size and integrated features make it an ideal choice for space-constrained applications. Its ability to drive both MOSFETs and IGBTs provides flexibility in selecting the appropriate power devices for a given application.

Key features of the IR2136S include its three-phase half-bridge configuration, overcurrent protection, undervoltage lockout, and shoot-through prevention. Its high-side and low-side drivers provide ample current for efficient switching of power devices. The device's floating channel design enables bootstrap operation, and its input logic is compatible with standard CMOS and LSTTL levels. Whether you're designing a motor drive, UPS, or industrial automation system, the IR2136S provides a reliable and cost-effective solution for driving power devices.

Ready to optimize your power electronic designs? The IR2136S IC gate driver is the perfect choice for driving three-phase half-bridge configurations with precision and safety. With its integrated protection features and high-current drive capability, this IC ensures reliable operation in demanding applications. Don't settle for less – order your IR2136S today and experience the difference! Click here to purchase now and take your projects to the next level!
