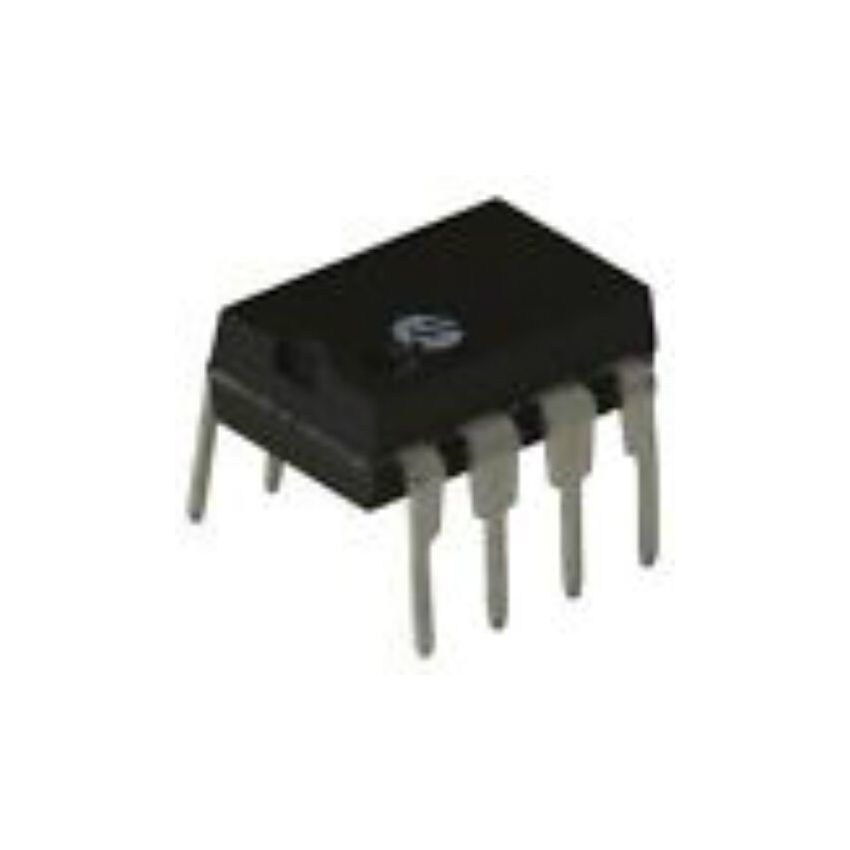

IR2153 INTEGRATED CIRCUIT DIP-8

The IR2153 integrated circuit, available in a DIP-8 (Dual In-line Package), is a self-oscillating half-bridge gate driver IC widely used in ballast and power supply applications. This IC simplifies the design of compact and efficient lighting and power conversion systems. Its DIP-8 packaging allows for easy integration into various circuit designs, including breadboards, PCBs (Printed Circuit Boards), and prototyping platforms. The IR2153's integrated features, such as internal oscillator, dead-time control, and high-side driver, contribute to its popularity in energy-efficient lighting and power supply designs.

Examining the specifications of the IR2153, it's crucial to consider its operating voltage range, switching frequency, and output drive capability. These parameters determine the circuit's compatibility with different power supply voltages and load requirements. The IR2153's internal oscillator provides a stable and adjustable switching frequency, allowing for optimization of the power conversion efficiency. Furthermore, its dead-time control feature prevents shoot-through in the half-bridge, ensuring reliable operation. Understanding these specifications is paramount for engineers seeking to leverage the IR2153's full potential in their power conversion designs.

The benefits of utilizing the IR2153 extend beyond its technical specifications. Its ease of use and readily available documentation simplify the design process, reducing development time and costs. The DIP-8 package allows for straightforward soldering and connection, minimizing the risk of errors during assembly. Moreover, the IR2153's integrated features reduce the number of external components required, resulting in a more compact and cost-effective design. Its self-oscillating capability eliminates the need for an external oscillator, further simplifying the design process.

Considering the diverse use cases of the IR2153, it finds application in electronic ballasts for fluorescent lamps, compact fluorescent lamps (CFLs), and LED lighting. It is also used in off-line power supplies, DC-DC converters, and other power conversion applications. In electronic ballasts, it drives the high-frequency switching of the lamp, providing efficient and reliable lighting. In power supplies, it generates the necessary gate drive signals for the power MOSFETs or IGBTs, enabling efficient power conversion. Its adaptability makes it a valuable component in a wide range of lighting and power supply applications.

In conclusion, the IR2153 integrated circuit in DIP-8 packaging offers a compelling combination of performance, reliability, and ease of use. Its versatile design and robust specifications make it an ideal choice for ballast and power supply applications. Whether you're a seasoned power electronics engineer or a hobbyist, the IR2153 can help you achieve your design goals efficiently and effectively. Don't miss out on the opportunity to enhance your lighting and power supply projects with this exceptional integrated circuit. Add the IR2153 to your cart today and experience the difference!
