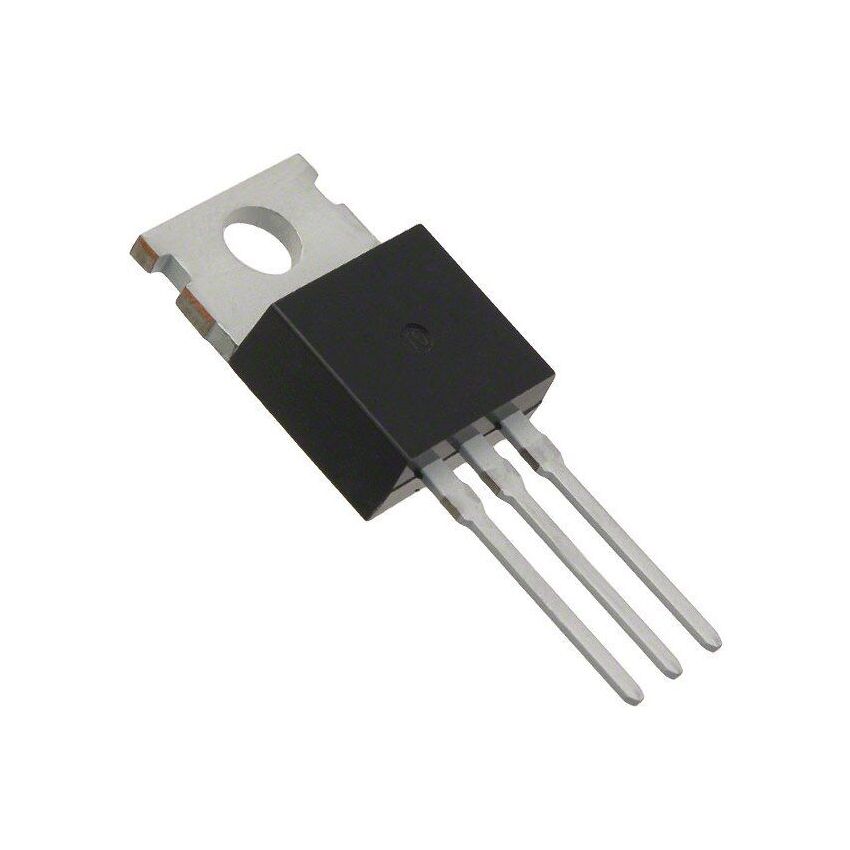

IRF522 V-MOS Power MOSFET (TO-220, 100V, 8A, 60W)

FAQs for Products

1. For which types of power switching applications is the IRF522 V-MOS Power MOSFET (TO-220, 100V, 8A, 60W) most ideally suited, considering its voltage and current ratings?

   The IRF522 V-MOS Power MOSFET (TO-220, 100V, 8A, 60W) is exceptionally well-suited for a broad range of medium-power switching applications where its 100V drain-source voltage and 8A continuous drain current are appropriate. Its robust design makes it an excellent choice for DC-DC converters, particularly in automotive systems (12V/24V applications), and for power management in industrial control systems. It performs reliably in motor control circuits, such as brushed DC motor drivers, where its switching speed and power handling capabilities are beneficial. Furthermore, the IRF522 V-MOS Power MOSFET is frequently employed in various power supply designs, including switch-mode power supplies (SMPS) and uninterruptible power supplies (UPS) for driving inductive loads. Its 60W power dissipation rating, combined with the TO-220 package, allows for effective thermal management in these demanding environments, ensuring stable and efficient operation.

2. What are the critical thermal management considerations when operating the IRF522 V-MOS Power MOSFET (TO-220, 100V, 8A, 60W) at its maximum 60W power dissipation?

   Operating the IRF522 V-MOS Power MOSFET (TO-220, 100V, 8A, 60W) at or near its maximum 60W power dissipation requires careful thermal management to prevent overheating and ensure long-term reliability. The TO-220 package, while robust, necessitates an adequate heatsink. Key considerations include selecting a heatsink with a sufficiently low thermal resistance (typically specified in °C/W) to keep the junction temperature below its maximum rating (e.g., 150°C). Thermal interface material (TIM) like thermal paste or pads must be used between the IRF522's tab and the heatsink to minimize thermal impedance. Forced air cooling might be necessary for higher ambient temperatures or continuous maximum load. It's crucial to calculate the total thermal resistance from junction to ambient (Rthja) and ensure it allows for safe operation at the expected power losses, which are a combination of conduction and switching losses for the IRF522 V-MOS Power MOSFET.

3. What are the typical gate drive voltage requirements for the IRF522 V-MOS Power MOSFET (TO-220, 100V, 8A, 60W) to ensure optimal switching performance and minimize conduction losses?

   To achieve optimal switching performance and minimize conduction losses for the IRF522 V-MOS Power MOSFET (TO-220, 100V, 8A, 60W), a gate-source voltage (Vgs) typically between 10V and 15V is recommended for full enhancement. While its threshold voltage (Vgs(th)) might be around 2V to 4V, driving the gate with a voltage significantly above this threshold is crucial to fully turn on the MOSFET channel and achieve the specified low on-resistance (RDS(on)). A lower gate drive voltage can result in higher RDS(on), leading to increased power dissipation and reduced efficiency. For dynamic switching applications, a robust gate driver circuit capable of sourcing and sinking sufficient current is essential to quickly charge and discharge the gate capacitance of the IRF522 V-MOS Power MOSFET, thereby minimizing switching losses and ensuring fast transitions between on and off states.

4. How does the RDS(on) of the IRF522 V-MOS Power MOSFET (TO-220, 100V, 8A, 60W) impact its efficiency in high-current applications, and what should be considered for minimizing power losses?

   The on-resistance (RDS(on)) of the IRF522 V-MOS Power MOSFET (TO-220, 100V, 8A, 60W) is a critical parameter directly impacting its efficiency, especially in high-current applications. When the MOSFET is fully turned on, it acts like a resistor, and power is dissipated as heat according to the formula P_loss = I_D^2 * RDS(on). A higher RDS(on) will result in greater conduction losses and reduced overall efficiency for the circuit. To minimize these power losses, it's crucial to ensure the IRF522 V-MOS Power MOSFET is driven with an adequate gate-source voltage (typically 10-15V) to achieve its minimum specified RDS(on). Additionally, operating the MOSFET within its specified current limits and considering the temperature dependence of RDS(on) (which generally increases with temperature) are vital. For applications demanding extreme efficiency, selecting a MOSFET with an even lower RDS(on) or using multiple IRF522s in parallel might be considered, though proper current sharing would be paramount.

5. Is the IRF522 V-MOS Power MOSFET (TO-220, 100V, 8A, 60W) suitable for high-frequency switching applications, and what parameters affect its switching performance?

   The IRF522 V-MOS Power MOSFET (TO-220, 100V, 8A, 60W) is generally suitable for moderate-to-high frequency switching applications, typically up to a few hundred kHz, depending on the specific circuit design and thermal constraints. Its suitability is primarily governed by its gate charge (Qg) and internal capacitances (Ciss, Coss, Crss). A lower gate charge allows for faster charging and discharging of the gate, leading to quicker turn-on and turn-off times and reduced switching losses. The input capacitance (Ciss) dictates how much current the gate driver needs to supply. For optimal high-frequency performance, a robust gate driver capable of rapidly sourcing and sinking the required gate current is essential. While the IRF522 V-MOS Power MOSFET offers good switching characteristics for many applications, for extremely high-frequency (MHz range) or very low-loss requirements, newer generation MOSFETs with significantly reduced gate charge values might offer superior performance.

6. What are the characteristics and limitations of the intrinsic body diode in the IRF522 V-MOS Power MOSFET (TO-220, 100V, 8A, 60W), especially for inductive load applications?

   The IRF522 V-MOS Power MOSFET (TO-220, 100V, 8A, 60W) features an intrinsic body diode that is an inherent part of its structure, formed between the source and drain. This diode conducts when the drain-source voltage becomes negative, providing a path for current flow, which is particularly useful for clamping voltage spikes from inductive loads (e.g., motors, solenoids) during turn-off. While convenient, this body diode has specific characteristics and limitations. Its forward voltage drop (Vsd) is typically higher than that of a dedicated Schottky diode, leading to higher conduction losses when it's actively conducting. More critically, its reverse recovery time (trr) can be relatively slow, meaning it takes time for the diode to turn off after conducting, potentially causing power losses and EMI issues in high-frequency applications. For demanding inductive load applications, especially at higher switching frequencies, it is often recommended to use an external fast-recovery or Schottky diode in parallel with the IRF522 V-MOS Power MOSFET to improve overall efficiency and reliability.

7. What features contribute to the ruggedness and reliability of the IRF522 V-MOS Power MOSFET (TO-220, 100V, 8A, 60W) in demanding environments, such as its avalanche energy rating?

   The IRF522 V-MOS Power MOSFET (TO-220, 100V, 8A, 60W) is designed with inherent ruggedness, making it a reliable choice for demanding applications. A key contributing factor is its specified avalanche energy rating (EAS), which indicates its ability to withstand transient voltage spikes above its breakdown voltage without sustaining damage. This capability is crucial in applications with inductive loads, where sudden current interruptions can generate significant voltage surges. The robust TO-220 package itself contributes to mechanical durability and facilitates efficient heat dissipation, which is vital for long-term reliability in varying thermal conditions. Furthermore, V-MOS technology, known for its strong gate oxide and resistance to electrostatic discharge (ESD) compared to some other MOSFET technologies, enhances its resilience. These features collectively ensure that the IRF522 V-MOS Power MOSFET can reliably operate in environments prone to voltage transients and thermal stress, contributing to the overall stability and longevity of the electronic system.
