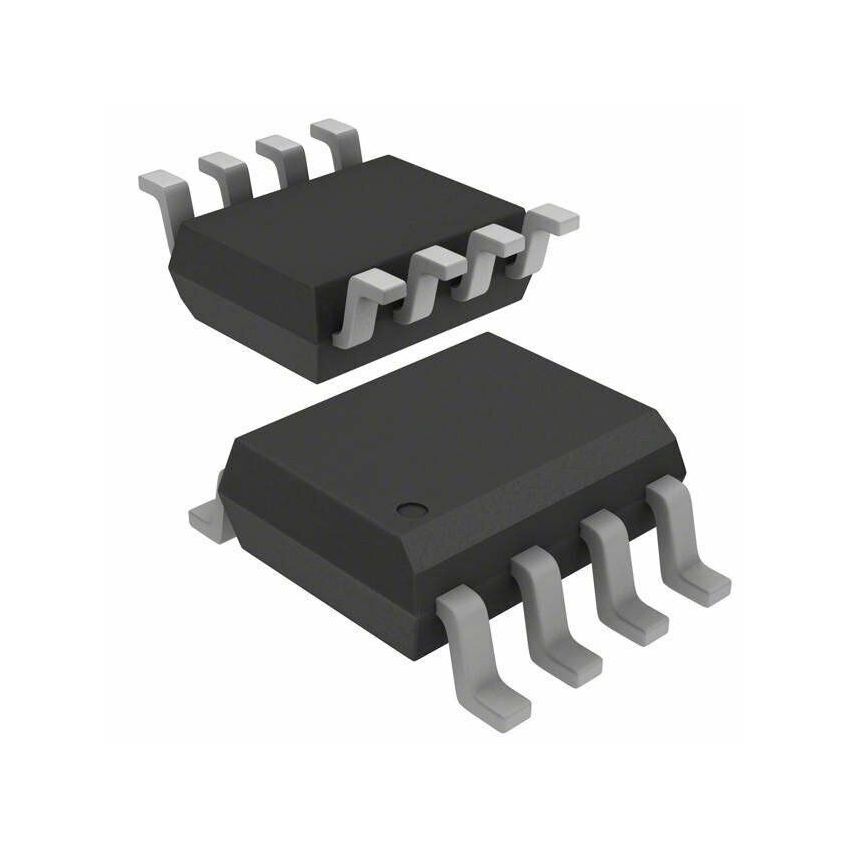

IRF7309 Dual N/P-Channel MOSFET Transistor, 3 A, 4 A, 30 V HEXFET, 8-Pin SOIC

The IRF7309 is a versatile Dual N/P-Channel MOSFET Transistor, offering both N-channel and P-channel MOSFETs in a single 8-Pin SOIC package. This integrated solution simplifies circuit design and reduces component count in a variety of power management applications. With a voltage rating of 30V and current ratings of 3A (N-channel) and 4A (P-channel), the IRF7309 is well-suited for load switching, power conversion, and motor control applications. Its HEXFET technology ensures efficient operation and low on-resistance, contributing to improved system performance. The IRF7309 is an excellent choice for designers seeking a compact and versatile MOSFET solution. Explore its potential in your next power electronics project.

Key features of the IRF7309 include its dual N/P-channel configuration, which allows for both high-side and low-side switching in a single package. This simplifies circuit design and reduces the number of components required. The low on-resistance (RDS(on)) of both the N-channel and P-channel MOSFETs minimizes power loss and enhances efficiency. The fast switching speed of the IRF7309 allows for high-frequency operation, making it suitable for modern switching power supplies and converters. Furthermore, its avalanche energy rating provides added protection against voltage spikes and transient events, ensuring the robustness of your circuits. Consider this MOSFET for your next power management or motor control application.

The 8-Pin SOIC package is a small surface-mount package that offers excellent thermal performance for its size. It allows for efficient heat transfer from the device to the printed circuit board (PCB), preventing overheating and ensuring long-term reliability. The IRF7309's pinout is standard and well-documented, facilitating easy integration into existing and new designs. The compact size of the SOIC package also allows for higher component density, enabling smaller and more compact designs. This is particularly important in portable devices and other space-constrained applications. The SOIC package is also easy to solder and assemble, making it a popular choice for both prototyping and production.

The IRF7309 is particularly well-suited for load switching applications, where the N-channel MOSFET can be used for low-side switching and the P-channel MOSFET can be used for high-side switching. This allows for flexible and efficient control of power to various loads in a system. The IRF7309 is also suitable for use in power conversion circuits, such as DC-DC converters, where the N-channel and P-channel MOSFETs can be used to create efficient switching topologies. Its low on-resistance minimizes conduction losses, improving the overall efficiency of the converter. Consider the IRF7309 for your next load switching or power conversion application.

In summary, the IRF7309 Dual N/P-Channel MOSFET Transistor is a versatile and efficient solution for a wide range of power management applications. Its dual N/P-channel configuration, low on-resistance, and compact SOIC package make it an excellent choice for demanding designs. Whether you're building a load switch, a power converter, or a motor control circuit, the IRF7309 provides the performance and reliability you need. Don't miss out on this opportunity to enhance your electronic designs. Order your IRF7309 MOSFET today and experience the difference in performance and efficiency.
