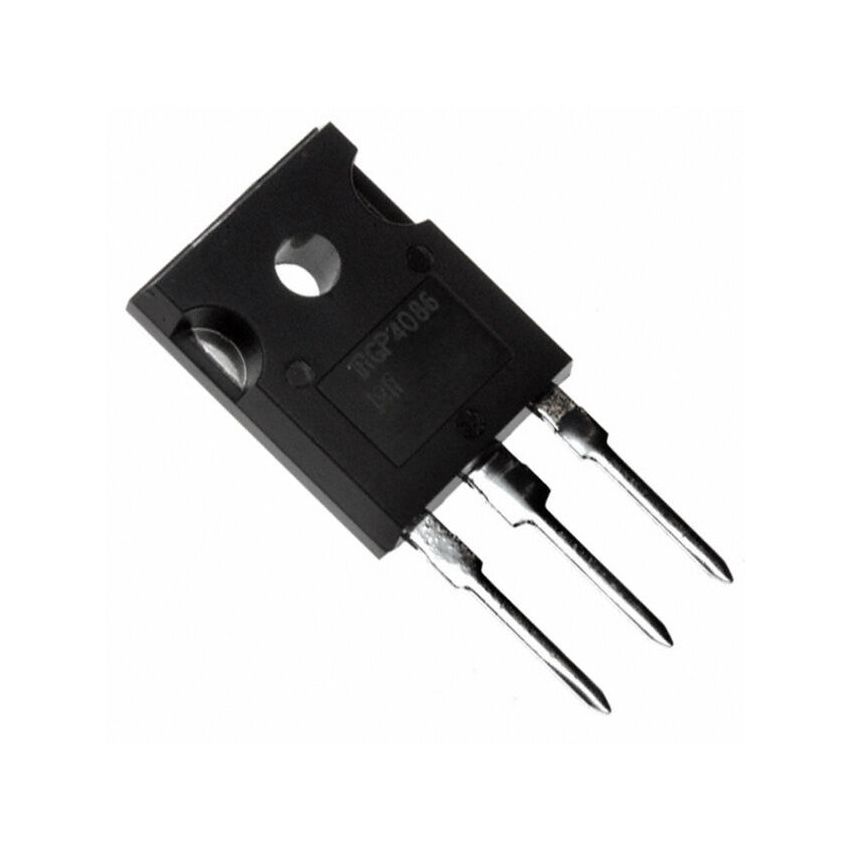

IRGP4086 600V 70A IGBT Transistor TO-247

FAQs for Products

1. What makes the IRGP4086 600V 70A IGBT Transistor TO-247 ideal for Plasma Display Panel (PDP) sustain circuits?

   The IRGP4086 600V 70A IGBT Transistor TO-247 is specifically engineered for high-speed, high-current switching applications like those found in Plasma Display Panel (PDP) technology. Its primary advantage lies in its optimized low collector-to-emitter saturation voltage (Vce(on)), which significantly reduces conduction losses during operation. In PDP sustain boards, the component must handle rapid energy recovery cycles and high repetitive peak currents. The IRGP4086 600V 70A IGBT Transistor TO-247 excels here due to its high pulsed collector current rating (Icm) of up to 210A, allowing it to manage the intense capacitive discharge loads typical of these systems. Furthermore, its rugged design ensures long-term reliability under the high-stress thermal conditions often encountered in display electronics. When replacing components in these circuits, using this specific IGBT ensures that the timing and power delivery remain within the original manufacturer's specifications, preventing premature failure of the sustain board or the panel itself.

2. How does the switching speed of the IRGP4086 600V 70A IGBT Transistor TO-247 impact overall system efficiency?

   Switching efficiency is a critical factor for the IRGP4086 600V 70A IGBT Transistor TO-247, as it determines how much energy is lost as heat during the transition between 'on' and 'off' states. This IGBT features an extremely low gate charge (Qg), which allows for faster switching transitions even when driven by standard gate driver ICs. By minimizing the time the transistor spends in the linear region—where power dissipation is at its peak—the IRGP4086 600V 70A IGBT Transistor TO-247 reduces total switching losses. This is particularly beneficial in high-frequency applications, typically ranging from 20kHz to 50kHz, where cumulative losses can lead to thermal runaway if not managed. The fast fall time of this device ensures that the turn-off transition is crisp, reducing the 'tail current' effect often seen in older IGBT technologies. For engineers and technicians, this means smaller heatsinks can potentially be used, and the overall power density of the inverter or power supply module can be increased without sacrificing reliability.

3. What are the gate drive requirements for the IRGP4086 600V 70A IGBT Transistor TO-247 to ensure full saturation?

   To achieve optimal performance from the IRGP4086 600V 70A IGBT Transistor TO-247, providing a robust gate drive signal is essential. While the gate-to-emitter threshold voltage (Vge(th)) is typically between 3.0V and 5.0V, this is only the point where the device begins to conduct. For full saturation and to achieve the lowest possible Vce(on), a gate drive voltage (Vge) of 15V is strongly recommended. Operating the IRGP4086 600V 70A IGBT Transistor TO-247 with insufficient gate voltage can cause it to operate in the active region, leading to excessive heat and immediate failure under load. Additionally, designers should consider the gate resistor (Rg) value; a resistor that is too large will slow down the switching speed and increase losses, while a value too small might cause ringing or oscillations due to parasitic inductance. Ensuring a clean, high-current drive signal capable of quickly charging the input capacitance (Cies) of approximately 2930pF is vital for maintaining the high-speed switching characteristics that this IGBT is known for.

4. Does the IRGP4086 600V 70A IGBT Transistor TO-247 include an internal co-packaged diode for inductive loads?

   It is important to note that the IRGP4086 600V 70A IGBT Transistor TO-247 is a discrete IGBT and does not typically include an internal ultra-fast recovery anti-parallel diode. In many switching applications involving inductive loads, such as motor drives or certain transformer-coupled circuits, a freewheeling diode is necessary to protect the transistor from high-voltage spikes caused by back-EMF when the device turns off. If you are using the IRGP4086 600V 70A IGBT Transistor TO-247 in a circuit that requires a diode, you must pair it with an external ultra-fast, soft-recovery diode to prevent reverse-bias damage. However, in its primary application within PDP sustain and energy recovery circuits, the circuit topology often dictates the placement of specific diodes elsewhere, which is why this IGBT is optimized purely for switching performance without the added capacitance of an internal diode. Always verify your specific circuit schematic to determine if an external diode is required to protect the IRGP4086 600V 70A IGBT Transistor TO-247 during operation.

5. What thermal management practices are recommended for the IRGP4086 600V 70A IGBT Transistor TO-247 in high-power designs?

   Effective thermal management is paramount for the IRGP4086 600V 70A IGBT Transistor TO-247, as it is rated for a maximum power dissipation (Pd) of approximately 160 Watts at a case temperature of 25°C. To maintain this level of performance, the TO-247 package must be securely mounted to a high-quality heatsink. We recommend using a high-conductivity thermal grease or a high-performance phase-change material to minimize the thermal resistance between the transistor's metal tab and the heatsink surface. Because the IRGP4086 600V 70A IGBT Transistor TO-247 often operates in high-current environments, even a small increase in contact resistance can lead to localized overheating. Ensure that the mounting screw is tightened to the manufacturer's recommended torque (typically around 0.8 to 1.0 Nm) to provide consistent pressure. In applications where multiple units of the IRGP4086 600V 70A IGBT Transistor TO-247 are used, forced-air cooling or larger extruded aluminum heatsinks may be necessary to keep the junction temperature (Tj) well below the 150°C maximum limit for long-term stability.

6. Can the IRGP4086 600V 70A IGBT Transistor TO-247 be used as a replacement for other 600V IGBTs in SMPS applications?

   The IRGP4086 600V 70A IGBT Transistor TO-247 can often serve as a high-performance replacement for other 600V IGBTs, provided the specifications are carefully matched. When considering a substitution, you must ensure that the IRGP4086 600V 70A IGBT Transistor TO-247 meets or exceeds the original component's continuous collector current (Ic) and pulsed current (Icm) ratings. One of the standout features of this device is its low Vce(on), which may actually improve the efficiency of an older Switch Mode Power Supply (SMPS) design. However, because this part is optimized for PDP applications, its switching characteristics (like turn-off delay and fall time) are very fast. You should verify that the existing gate drive circuit can handle the gate charge requirements and that the lack of an internal diode (if the original part had one) is addressed with an external component. The TO-247 package is a standard size, making it physically compatible with most high-power PCB layouts designed for discrete power transistors, allowing for a straightforward mechanical installation.

7. How does the Short Circuit Safe Operating Area (SCSOA) of the IRGP4086 600V 70A IGBT Transistor TO-247 protect the circuit?

   The IRGP4086 600V 70A IGBT Transistor TO-247 is designed with a robust Safe Operating Area (SOA), which is a critical specification for industrial and consumer electronics. The SCSOA defines the transistor's ability to withstand a short-circuit condition for a brief period (typically measured in microseconds) before the protection circuitry shuts the system down. For the IRGP4086 600V 70A IGBT Transistor TO-247, this ruggedness is essential in preventing catastrophic failure during fault conditions, such as a load short or a shoot-through event in a half-bridge configuration. While the device is highly durable, it is always best practice to implement active over-current protection in your driver stage. This ensures that if the IRGP4086 600V 70A IGBT Transistor TO-247 encounters a current level beyond its 70A continuous rating or its 210A pulsed rating, the system can react quickly enough to prevent the junction temperature from exceeding safe limits. This inherent durability makes the IRGP4086 600V 70A IGBT Transistor TO-247 a preferred choice for repair professionals and designers who prioritize system longevity.
