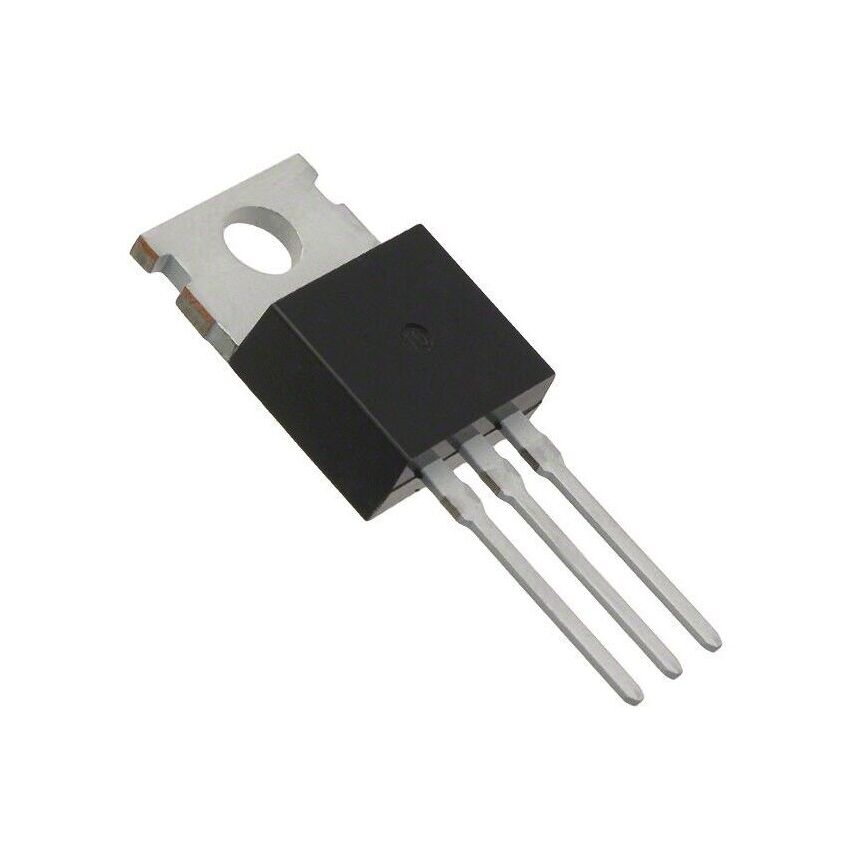

IRL1404 MOSFET N-CH 40V 160A TO220AB

The IRL1404 is a high-performance N-channel MOSFET designed for demanding power switching applications requiring high current and efficiency. Encased in a TO220AB package, this MOSFET offers excellent thermal characteristics and is well-suited for applications where heat dissipation is critical. With a voltage rating of 40V and a continuous current capability of 160A, the IRL1404 delivers exceptional power handling capabilities. Its advanced design minimizes on-resistance, contributing to improved efficiency and reduced heat generation. The IRL1404 is an ideal choice for automotive applications, DC-DC converters, and motor control systems.

This MOSFET incorporates advanced features such as a logic-level gate drive, which simplifies the gate drive circuitry and allows for direct interfacing with microcontrollers and other low-voltage logic devices. The low gate charge reduces the drive power required, further enhancing efficiency. The IRL1404's robust design ensures reliable operation even under harsh conditions. Its high avalanche ruggedness provides protection against voltage transients, enhancing system reliability. The IRL1404 is designed for ease of use and integration into existing systems, making it a popular choice among engineers and designers.

The IRL1404 finds applications in a wide range of power electronics, including automotive systems, DC-DC converters, motor drives, and power supplies. Its high current and voltage ratings make it suitable for high-power applications. The MOSFET's low on-resistance contributes to improved efficiency and reduced heat generation in these applications. The IRL1404's logic-level gate drive simplifies the design of gate drive circuits, reducing component count and cost. It is a reliable and cost-effective solution for demanding power switching needs.

Key specifications of the IRL1404 include a drain-source voltage (Vds) of 40V, a continuous drain current (Id) of 160A, and an on-resistance (Rds(on)) of 4.0 milliohms. Its gate charge (Qg) is typically 50 nC, and its avalanche energy (EAS) is 175 mJ. The MOSFET's TO220AB package provides excellent thermal performance and simplifies mounting. The IRL1404 is compliant with RoHS standards, ensuring environmental friendliness. Its robust design and high-quality components ensure long-term reliability and performance.

In summary, the IRL1404 MOSFET is a high-performance and reliable solution for demanding power switching applications. Its high current and voltage ratings, low on-resistance, and logic-level gate drive make it ideal for a wide range of power electronics. Whether you are designing an automotive system, a DC-DC converter, a motor drive, or a power supply, the IRL1404 provides exceptional performance and reliability. Upgrade your power switching capabilities today with the IRL1404. Order now and experience the difference in performance and efficiency.
