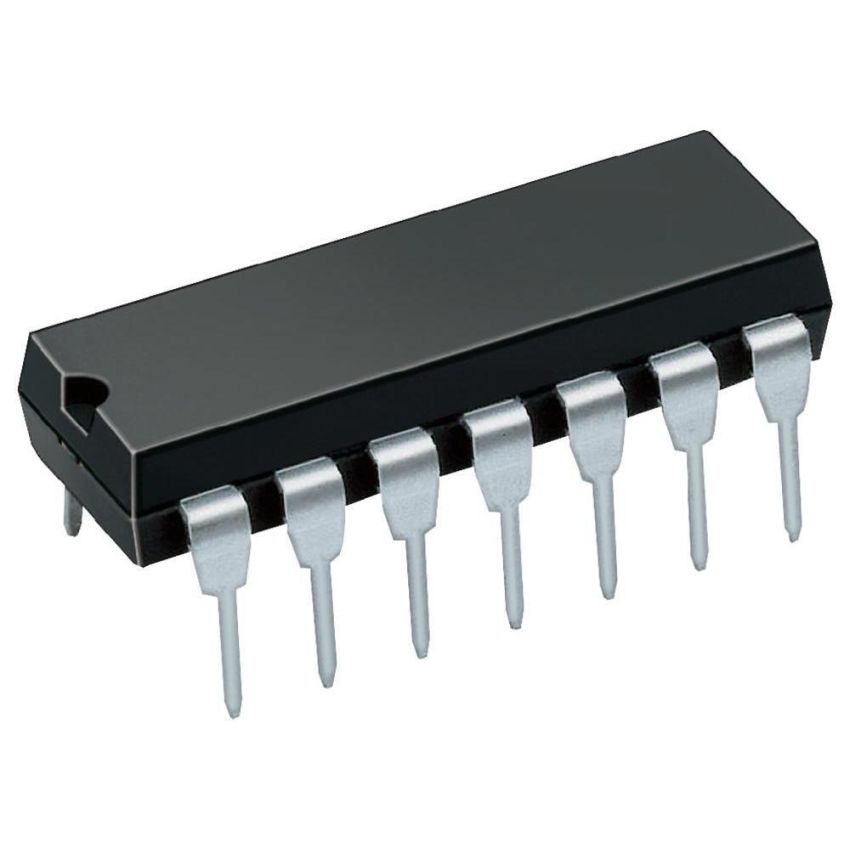

IRS21864PBF High and Low Side Gate Driver IC DIP-14

FAQs for Products

1. What are the primary advantages of the 4A source and sink current capability in the IRS21864PBF High and Low Side Gate Driver IC DIP-14?

   The IRS21864PBF High and Low Side Gate Driver IC DIP-14 is specifically engineered for high-power applications where driving large power MOSFETs or IGBTs is required. Its robust 4A source and 4A sink peak output current capability is a standout feature for professional power electronics designers. This high current drive allows the IC to quickly charge and discharge the gate capacitance of power switches, which significantly reduces the time spent in the linear region during switching transitions. By minimizing the duration of the Miller plateau, the IRS21864PBF High and Low Side Gate Driver IC DIP-14 effectively lowers switching losses and reduces thermal stress on the power components. This makes it an exceptional choice for high-frequency DC-DC converters and high-performance motor drives where efficiency and thermal management are critical. Furthermore, the high sink current ensures a firm hold on the gate during high dv/dt events, preventing accidental turn-on due to parasitic capacitance, thereby enhancing the overall reliability of the power stage in demanding industrial environments.

2. How does the floating channel design of the IRS21864PBF High and Low Side Gate Driver IC DIP-14 simplify high-side gate driving?

   The IRS21864PBF High and Low Side Gate Driver IC DIP-14 features a sophisticated floating channel design that is fully operational up to +600V. This architecture is essential for half-bridge and full-bridge topologies because it allows the high-side driver to 'float' on the switching node (Vs). In practical terms, the IRS21864PBF High and Low Side Gate Driver IC DIP-14 eliminates the need for bulky and expensive isolated power supplies or pulse transformers to drive the high-side switch. Instead, a simple bootstrap circuit consisting of a diode and a capacitor is used to provide the necessary gate-to-source voltage. This significantly reduces PCB footprint and bill-of-materials (BOM) costs. When the low-side switch is active, the bootstrap capacitor charges from the Vcc supply; when the high-side switch needs to turn on, the floating channel references this stored charge. The IRS21864PBF High and Low Side Gate Driver IC DIP-14 is designed to handle the high-voltage offsets and rapid voltage swings associated with this node, providing a seamless and integrated solution for high-voltage power conversion.

3. Does the IRS21864PBF High and Low Side Gate Driver IC DIP-14 include internal dead-time and shoot-through protection?

   Yes, the IRS21864PBF High and Low Side Gate Driver IC DIP-14 is designed with integrated safety features to protect the power stage, most notably a fixed internal dead-time. In half-bridge configurations, 'shoot-through' occurs if both the high-side and low-side switches are conductive simultaneously, creating a direct short across the DC bus. The IRS21864PBF High and Low Side Gate Driver IC DIP-14 prevents this catastrophic failure by implementing a 500ns (typical) dead-time, ensuring a mandatory delay between the turning off of one switch and the turning on of the other. This internal logic ensures that even if the input signals overlap due to controller errors or noise, the driver maintains a safe transition period. For experienced engineers, this built-in protection simplifies the firmware or PWM logic requirements of the microcontroller. Additionally, the IRS21864PBF High and Low Side Gate Driver IC DIP-14 features matched propagation delays for both channels, typically within 20ns, which ensures symmetrical switching and further optimizes the efficiency of the power conversion process by maintaining precise control over the switching intervals.

4. What makes the noise immunity of the IRS21864PBF High and Low Side Gate Driver IC DIP-14 suitable for electrically noisy environments?

   The IRS21864PBF High and Low Side Gate Driver IC DIP-14 is built with advanced high-voltage IC (HVIC) technology that provides exceptional dV/dt immunity. In high-power switching environments, rapid voltage transitions at the switching node can generate significant electromagnetic interference (EMI) and transient spikes. The IRS21864PBF High and Low Side Gate Driver IC DIP-14 is specifically designed to be immune to negative transient voltages that often occur at the Vs pin during inductive load switching. It can typically withstand negative transients down to -5V without latching up or causing erroneous output states. Furthermore, the logic inputs of the IRS21864PBF High and Low Side Gate Driver IC DIP-14 are Schmitt-triggered, providing high noise margins and preventing spurious triggering from low-level noise on the control lines. This level of robustness is vital for industrial motor controls and high-density power supplies where electrical noise is a constant challenge. By utilizing the IRS21864PBF High and Low Side Gate Driver IC DIP-14, designers can achieve stable and predictable gate drive performance even in the most unforgiving electromagnetic conditions.

5. What are the logic compatibility and supply voltage requirements for the IRS21864PBF High and Low Side Gate Driver IC DIP-14?

   The IRS21864PBF High and Low Side Gate Driver IC DIP-14 offers versatile logic compatibility, making it easy to interface with a wide range of controllers. Its input logic is compatible with standard CMOS and LSTTL outputs, supporting voltage levels down to 3.3V. This allows the IRS21864PBF High and Low Side Gate Driver IC DIP-14 to be driven directly by modern low-voltage microcontrollers, DSPs, or FPGAs without the need for external level shifters. Regarding the power supply, the IC operates with a Vcc (gate drive supply) range of 10V to 20V. This range is ideal for ensuring that MOSFETs or IGBTs are driven with sufficient gate-to-source voltage to achieve their lowest Rds(on) or Vce(sat), thereby maximizing efficiency. The IRS21864PBF High and Low Side Gate Driver IC DIP-14 also includes Undervoltage Lockout (UVLO) protection on both the Vcc and Vbs (high-side bootstrap) channels. This ensures that the driver does not attempt to switch the power devices if the supply voltage is too low to guarantee fully enhanced conduction, protecting the system from overheating and potential failure due to high-impedance operation.

6. Why is the DIP-14 package version of the IRS21864PBF High and Low Side Gate Driver IC DIP-14 preferred in certain industrial applications?

   While surface-mount components are common in consumer electronics, the IRS21864PBF High and Low Side Gate Driver IC DIP-14 in its Dual In-line Package (DIP-14) remains a preferred choice for many industrial and heavy-duty power electronics applications. The through-hole DIP-14 package offers superior mechanical stability, making it more resistant to mechanical stress and vibration compared to smaller SMD variants. This is particularly important in motor drive units or power tools where physical durability is a requirement. Additionally, the IRS21864PBF High and Low Side Gate Driver IC DIP-14 in a DIP-14 package is much easier to work with during the prototyping phase, as it can be used with breadboards or sockets without needing specialized soldering equipment. From a thermal perspective, the larger lead frame of the DIP-14 package can provide slightly better heat dissipation into the PCB through the pins in certain layouts. For maintenance and repair of industrial equipment, the IRS21864PBF High and Low Side Gate Driver IC DIP-14 allows for easier desoldering and replacement in the field, reducing downtime for critical power systems and infrastructure.

7. What considerations should be taken for the bootstrap capacitor selection when using the IRS21864PBF High and Low Side Gate Driver IC DIP-14?

   Selecting the correct bootstrap capacitor is critical for the reliable operation of the IRS21864PBF High and Low Side Gate Driver IC DIP-14. This capacitor provides the energy required to turn on the high-side switch and must maintain sufficient voltage throughout the entire 'on' period. When designing with the IRS21864PBF High and Low Side Gate Driver IC DIP-14, the capacitor value must be calculated based on the gate charge (Qg) of the MOSFET/IGBT, the switching frequency, and the maximum duty cycle. A common rule of thumb is that the bootstrap capacitance should be at least 10 to 15 times the equivalent gate capacitance of the power switch. It is highly recommended to use low-ESR ceramic capacitors (such as X7R dielectric) placed as close as possible to the Vb and Vs pins of the IRS21864PBF High and Low Side Gate Driver IC DIP-14 to minimize parasitic inductance. Furthermore, the bootstrap diode paired with the IC must be an ultra-fast recovery type with a voltage rating exceeding the maximum DC bus voltage. Proper selection ensures that the IRS21864PBF High and Low Side Gate Driver IC DIP-14 delivers consistent gate drive performance without suffering from voltage droop or high-side under-voltage lockout issues.
