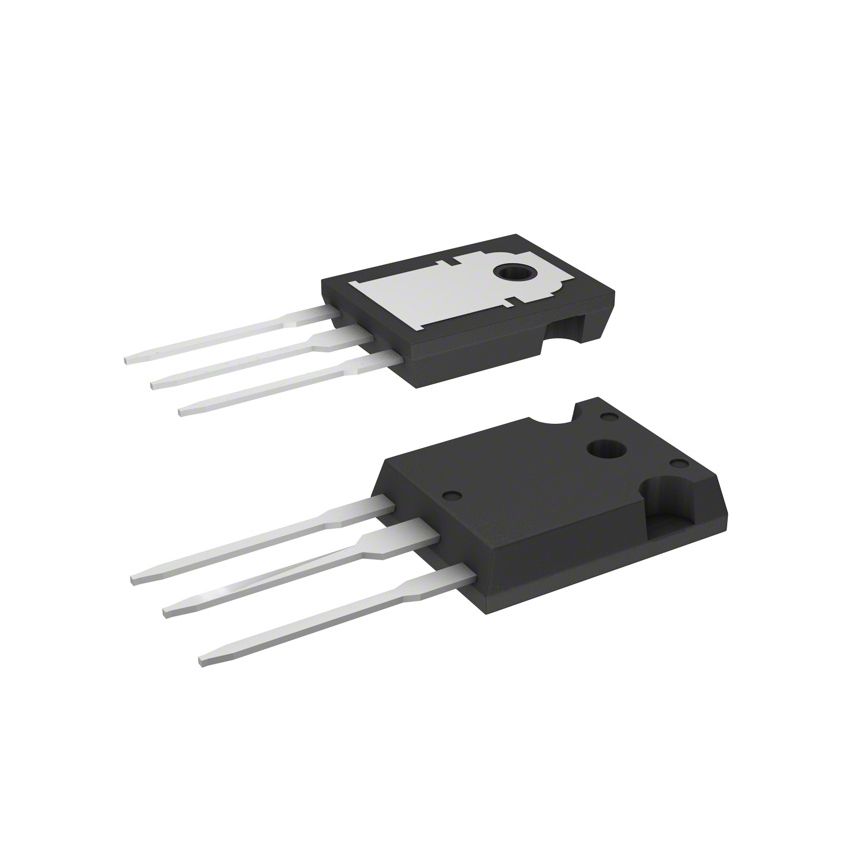

IXGH15N120CD1 IGBT 1200V 30A TO-247AD

The IXGH15N120CD1 Insulated Gate Bipolar Transistor (IGBT) represents a significant advancement in power semiconductor technology, offering a robust solution for high-voltage, high-current switching applications. This device, housed in a TO-247AD package, is engineered for optimal thermal performance and ease of integration into various circuit designs. With a voltage rating of 1200V and a continuous current rating of 30A, the IXGH15N120CD1 is well-suited for demanding applications such as motor drives, uninterruptible power supplies (UPS), and induction heating systems. Its advanced design minimizes switching losses, contributing to improved energy efficiency and reduced heat dissipation.

Key features of the IXGH15N120CD1 include its high blocking voltage capability, allowing it to withstand substantial voltage spikes and surges, ensuring reliable operation in harsh electrical environments. The device's low saturation voltage (VCE(sat)) minimizes conduction losses, further enhancing its efficiency. The TO-247AD package provides excellent thermal conductivity, facilitating efficient heat removal and enabling the IGBT to operate at higher power levels. Furthermore, the IGBT incorporates a fast recovery diode, which reduces switching losses and improves overall system performance. This combination of features makes the IXGH15N120CD1 a versatile and dependable choice for power electronics applications.

The IXGH15N120CD1 finds applications in a wide array of industrial and commercial settings. In motor drives, it enables precise control of motor speed and torque, leading to improved energy efficiency and reduced wear and tear on mechanical components. In UPS systems, it provides reliable power backup during grid outages, ensuring uninterrupted operation of critical equipment. Induction heating systems benefit from the IGBT's high-frequency switching capabilities, enabling efficient and precise heating of materials. Moreover, the IXGH15N120CD1 is also used in welding equipment, power factor correction circuits, and renewable energy systems, such as solar inverters and wind turbine converters.

When selecting an IGBT, it's crucial to consider factors such as voltage and current ratings, switching speed, thermal resistance, and package type. The IXGH15N120CD1 excels in all these areas, offering a compelling combination of performance, reliability, and ease of use. Its robust design and advanced features make it a suitable choice for both new designs and replacements in existing systems. By incorporating the IXGH15N120CD1 into your power electronic circuits, you can achieve improved energy efficiency, reduced heat dissipation, and enhanced system performance. Its ability to handle high voltage and current levels, coupled with its fast switching speed, makes it a valuable asset in a wide range of applications.

Upgrade your power electronics designs with the IXGH15N120CD1 IGBT. Experience the benefits of its high voltage and current capabilities, fast switching speed, and robust TO-247AD package. Improve the efficiency and reliability of your motor drives, UPS systems, induction heating equipment, and other power electronic applications. Order your IXGH15N120CD1 IGBT today and take your designs to the next level. Don't miss out on this opportunity to enhance the performance and efficiency of your power electronic systems. Purchase now and experience the difference!
