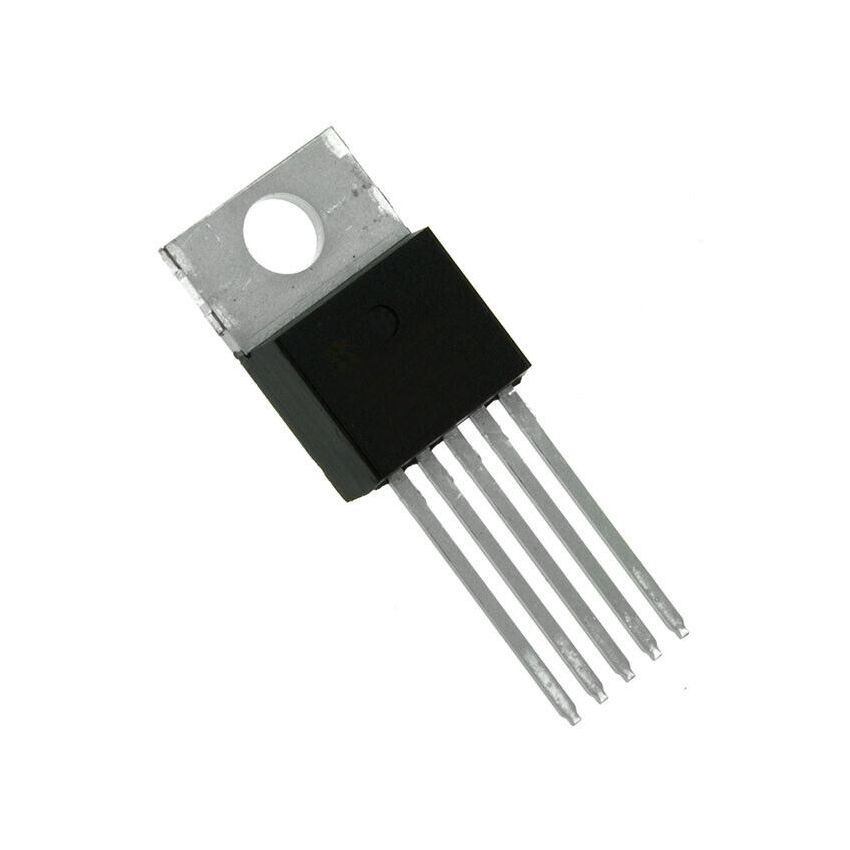

KA5H0265 FAIRCHILD INTEGRATED CIRCUIT TO-220-5L

The KA5H0265 is a highly integrated, current-mode PWM power switch from Fairchild Semiconductor, designed for offline flyback converter applications. Encased in a TO-220-5L package, this integrated circuit offers a compact and efficient solution for power supply designs requiring high performance and reliability. The KA5H0265 incorporates a SenseFET, which simplifies the design process and reduces the external component count. Its primary function is to regulate the output voltage by modulating the switching frequency of the internal MOSFET, ensuring stable and reliable power delivery across a wide range of load conditions. The KA5H0265 integrates several key features that enhance its performance and reliability. These include a built-in soft-start function, which minimizes stress on the power components during startup, extending their lifespan and enhancing system reliability.

Over-voltage protection (OVP), over-current protection (OCP), and over-temperature protection (OTP) mechanisms are also integrated, safeguarding the power supply and connected devices from potential damage due to abnormal operating conditions. The KA5H0265's current-mode control architecture provides excellent line regulation and load regulation, ensuring a stable output voltage even with variations in input voltage or load current. This makes it suitable for a wide range of applications, including AC-DC adapters, battery chargers, and auxiliary power supplies. The high level of integration reduces the external component count, simplifying the design process and minimizing the overall cost of the power supply. Furthermore, the TO-220-5L package allows for efficient heat dissipation, contributing to the device's long-term reliability. The KA5H0265 is optimized for low standby power consumption, meeting stringent energy efficiency requirements.

This is achieved through advanced design techniques that minimize quiescent current and switching losses. The device also incorporates frequency jittering, which helps to reduce electromagnetic interference (EMI) and simplify compliance with regulatory standards. The KA5H0265 is a versatile and reliable solution for modern power supply designs, offering a combination of high performance, comprehensive protection features, and energy efficiency. Its compact size and ease of use make it an ideal choice for a wide range of applications. Whether you're designing a power adapter for consumer electronics or an auxiliary power supply for industrial equipment, the KA5H0265 provides the performance and reliability you need. Upgrade your power supply design with the KA5H0265 Fairchild Integrated Circuit TO-220-5L today and experience the difference in performance and reliability.

Order now to take advantage of its advanced features and simplify your design process.
