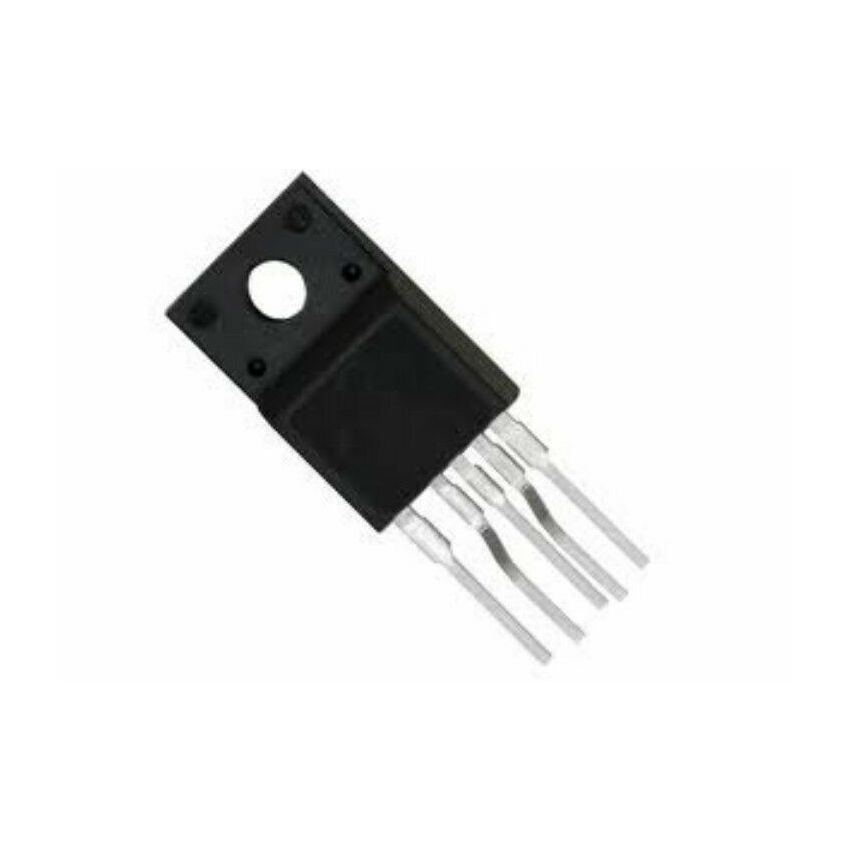

KA5S12656 FSC POWER SWTICH INTEGRATED CIRCUIT TO220F'"

The KA5S12656 is a highly integrated FSC (Fairchild Semiconductor) power switch, designed to provide a compact and efficient solution for power supply applications. Encased in a TO220F package, this integrated circuit combines a power MOSFET with a pulse-width modulation (PWM) controller, streamlining the design process and reducing the overall component count. This integration leads to improved reliability and simplified manufacturing, making it an ideal choice for various power conversion needs. Its robust design ensures stable performance even under demanding operating conditions, contributing to the longevity of the end product. The KA5S12656 is engineered to meet stringent energy efficiency standards, helping to minimize power consumption and reduce environmental impact.

Key features of the KA5S12656 include built-in protection mechanisms such as over-voltage protection (OVP), over-current protection (OCP), and thermal shutdown. These safeguards prevent damage to the IC and the surrounding circuitry, ensuring safe and reliable operation. The integrated PWM controller offers precise control over the switching frequency and duty cycle, allowing for optimized performance and reduced electromagnetic interference (EMI). The TO220F package provides excellent thermal dissipation, enabling the device to operate at higher power levels without overheating. This makes it suitable for applications requiring high power density and efficient heat management. The device also incorporates soft-start functionality to minimize stress on components during startup.

The KA5S12656 finds applications in a wide range of power supply designs, including adapters, chargers, and auxiliary power supplies for consumer electronics, industrial equipment, and white goods. Its high efficiency and compact size make it particularly well-suited for space-constrained applications where minimizing board footprint is crucial. The integrated protection features enhance the reliability of power supplies, reducing the risk of failure and extending the lifespan of the powered devices. Furthermore, the KA5S12656's ability to meet stringent energy efficiency standards makes it a popular choice for eco-friendly power supply designs. Its ease of use and reduced component count simplify the design process, saving time and resources for engineers.

With its integrated design, robust protection features, and efficient performance, the KA5S12656 offers a compelling solution for power supply designers seeking a reliable and cost-effective power switch. Its TO220F package ensures easy mounting and effective heat dissipation, while the built-in PWM controller provides precise control over the power conversion process. The device's wide range of applications and compliance with energy efficiency standards make it a versatile choice for various power supply needs. The KA5S12656 simplifies the design process, reduces component count, and enhances the overall reliability of power supplies, making it an excellent choice for modern electronic devices. Upgrade your power supply design today with the KA5S12656 and experience the benefits of integrated power switching technology.
