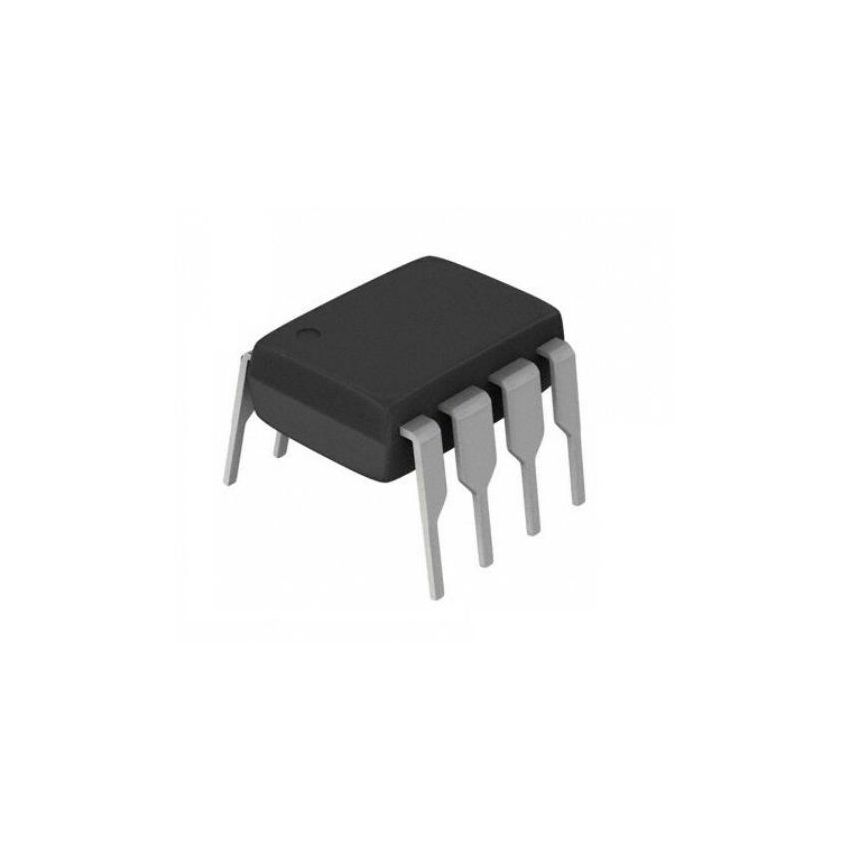

LD7550BBN INTEGRATED CIRCUIT DIP-8

The LD7550BBN is a highly integrated current-mode PWM (Pulse Width Modulation) controller designed for offline flyback converter applications. This integrated circuit is ideal for power supplies in various electronic devices, including adapters, chargers, and auxiliary power sources. Housed in a DIP-8 (Dual In-line Package) package, the LD7550BBN is easy to prototype and integrate into existing circuit designs. Its comprehensive feature set and robust performance make it a reliable and cost-effective solution for power management needs. The LD7550BBN is a popular choice for its efficiency and ease of use in power supply designs.

This PWM controller features a built-in oscillator, slope compensation, and current sensing circuitry, simplifying the design process and reducing the need for external components. The current-mode control provides excellent line regulation and load regulation, ensuring a stable output voltage under varying input and output conditions. The DIP-8 package allows for easy through-hole mounting and soldering, making it suitable for both prototyping and mass production. With its comprehensive protection features, including over-voltage protection (OVP), over-current protection (OCP), and over-temperature protection (OTP), the LD7550BBN ensures safe and reliable operation of the power supply. Consider this IC for your next power supply project.

The LD7550BBN excels in applications where a compact and efficient power supply is required. It is commonly used in AC-DC adapters for powering various electronic devices, such as smartphones, tablets, and laptops. Its current-mode control provides excellent performance and stability, ensuring a reliable power source for these devices. Furthermore, the LD7550BBN is widely used in auxiliary power supplies for industrial equipment, providing a stable and regulated voltage for control circuits and other critical components. Its comprehensive protection features make it ideal for these demanding applications. The LD7550BBN is also a popular choice for LED lighting applications, providing a constant current source for driving LEDs.

Beyond its technical specifications, the LD7550BBN offers several practical benefits that simplify the design process and reduce overall costs. Its ease of use simplifies the design process, reducing development time and costs associated with complex power supply designs. The integrated features minimize the need for external components, reducing the overall component count and board space. The DIP-8 package allows for easy through-hole mounting, simplifying assembly and reducing manufacturing costs. Moreover, the LD7550BBN is widely available and competitively priced, making it an accessible solution for a wide range of applications. Its reliability and performance have made it a popular choice among engineers and hobbyists alike.

In summary, the LD7550BBN is a versatile and reliable current-mode PWM controller that provides a comprehensive solution for offline flyback converter applications. Its integrated features, robust performance, and comprehensive protection features make it an ideal choice for a wide range of power supply designs. Whether you're designing an AC-DC adapter, an auxiliary power supply, or an LED lighting driver, the LD7550BBN is a dependable solution. Don't compromise on power supply efficiency and reliability – add the LD7550BBN to your cart today and experience the difference a quality PWM controller can make!
