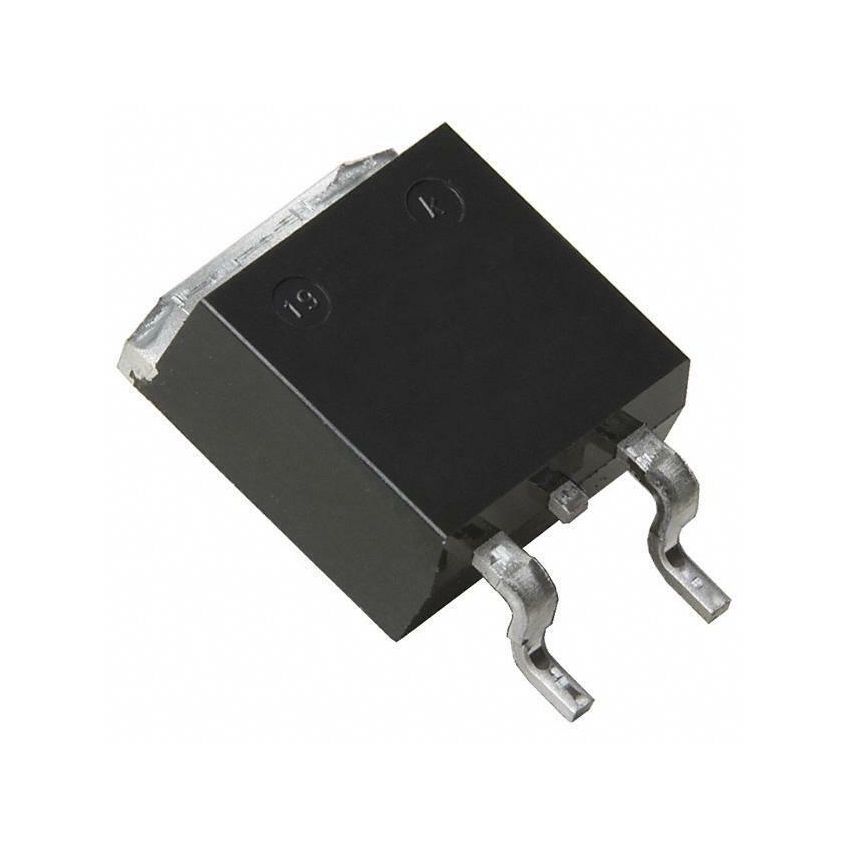

LM1117DTX-ADJ/NOPB IC REG LIN POS ADJ 800MA TO252-

The LM1117DTX-ADJ/NOPB is a low dropout (LDO) linear regulator designed to provide a stable and adjustable positive voltage output. This integrated circuit is capable of delivering up to 800mA of current, making it suitable for a wide range of applications requiring regulated power. Housed in a TO252-3 package, it offers excellent thermal performance and is easy to mount on a printed circuit board. The adjustable output voltage feature allows for flexibility in design, enabling the user to set the desired voltage level using external resistors. This LDO regulator is ideal for post-regulation in switching power supplies, battery chargers, and microprocessor power supplies.

Key features of the LM1117DTX-ADJ/NOPB include a low dropout voltage, typically 1.2V at 800mA, which ensures efficient operation even with a small difference between the input and output voltages. The adjustable output voltage ranges from 1.25V to near the input voltage, providing versatility for various application requirements. Built-in thermal shutdown and current limiting protection circuits enhance the reliability and robustness of the device, preventing damage from over-temperature and over-current conditions. The device is also designed to be stable with low ESR ceramic capacitors, further simplifying the design process and reducing the overall cost of the application.

This linear regulator is commonly used in applications such as powering microcontrollers, FPGAs, and other digital circuits. Its low noise characteristics make it suitable for sensitive analog circuits as well. The LM1117DTX-ADJ/NOPB can also be employed in battery-powered devices, where efficiency and low quiescent current are critical. The TO252-3 package provides a compact footprint and efficient heat dissipation, making it a preferred choice for space-constrained applications. Its adjustable output and robust protection features make it a versatile and reliable solution for various power regulation needs.

The LM1117 series is known for its simplicity and ease of use. With minimal external components required, it offers a cost-effective solution for linear regulation. The adjustable output voltage is set by two external resistors, allowing designers to fine-tune the output voltage to meet specific requirements. The device's stability with ceramic capacitors eliminates the need for bulky electrolytic capacitors, reducing the overall size and cost of the power supply. The LM1117DTX-ADJ/NOPB is a popular choice for both new designs and replacements in existing systems.

In summary, the LM1117DTX-ADJ/NOPB IC regulator offers a reliable and efficient solution for linear voltage regulation. Its adjustable output, low dropout voltage, and robust protection features make it suitable for a wide range of applications. The TO252-3 package provides excellent thermal performance and ease of mounting. Whether you are designing a power supply for a microcontroller, a battery charger, or any other application requiring a stable and adjustable voltage, the LM1117DTX-ADJ/NOPB is an excellent choice. Add this versatile component to your cart today and experience reliable power regulation in your next project.
