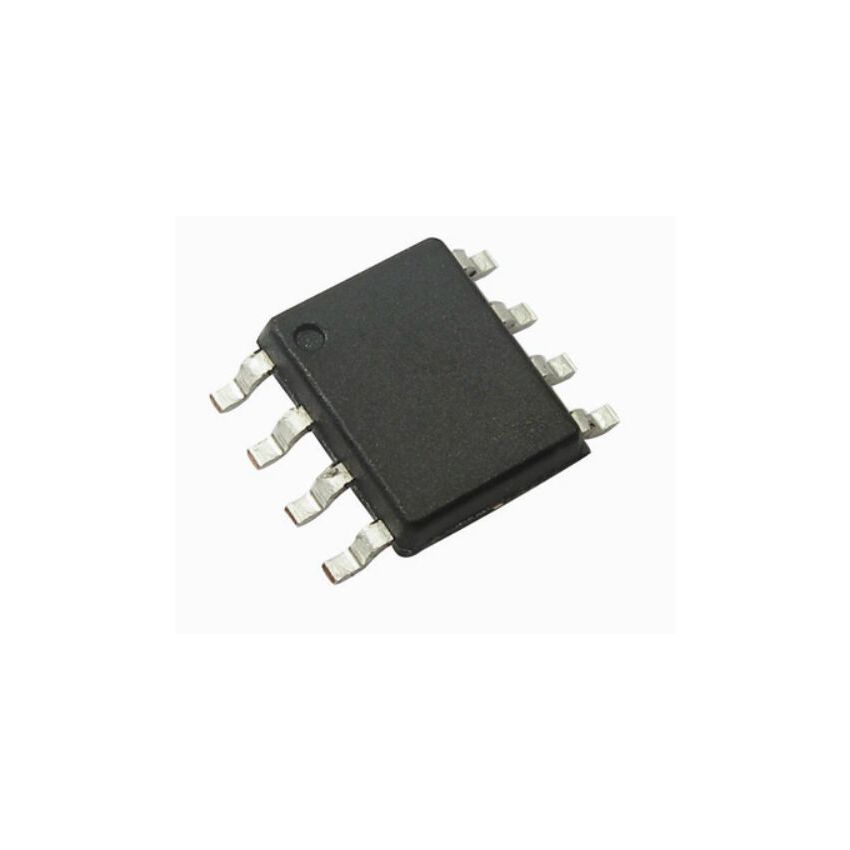

LM2931CM LDO Voltage Regulator SOP-8

FAQs for Products

1. What is the typical dropout voltage of the LM2931CM LDO Voltage Regulator SOP-8, and why is it important for my application?

   The LM2931CM LDO Voltage Regulator SOP-8 is characterized by its precision low-dropout voltage, which is a critical specification for maximizing efficiency, particularly in battery-powered systems. While specific typical values depend on the load current and temperature, LDOs in this family typically exhibit dropout voltages in the range of 100mV to 600mV for output currents up to 100mA. A low dropout voltage means that the LM2931CM can maintain its regulated output voltage even when the input voltage is only slightly higher than the desired output. This capability extends the operational life of batteries by allowing the system to draw power from the battery for a longer duration as its voltage declines. It also minimizes power dissipation, reducing heat generation and contributing to overall system efficiency, which is vital for compact SMD designs like those utilizing the SOP-8 package.

2. How does the quiescent current of the LM2931CM LDO Voltage Regulator SOP-8 impact battery life in portable designs?

   The quiescent current (Iq) of the LM2931CM LDO Voltage Regulator SOP-8 refers to the current consumed by the regulator itself when no load is applied or when the load is very light. For portable and battery-powered devices, a low quiescent current is paramount because it directly impacts the standby power consumption and, consequently, the battery life. The LM2931CM is engineered with a low Iq, typically in the microampere range. This minimal current draw ensures that the regulator itself does not significantly drain the battery when the system is in idle or sleep modes. By minimizing power consumption during periods of low activity, the LM2931CM LDO Voltage Regulator SOP-8 helps extend the operational runtime of battery-powered devices, making it an excellent choice for power-sensitive applications where battery longevity is a key design consideration.

3. What input and output capacitor considerations are crucial for ensuring stable operation of the LM2931CM LDO Voltage Regulator SOP-8?

   For stable operation of the LM2931CM LDO Voltage Regulator SOP-8, appropriate input and output capacitors are essential. A ceramic input capacitor, typically 0.1µF to 1µF, placed close to the VIN pin, helps filter transient noise from the input supply and improves line regulation. The output capacitor is even more critical for stability, transient response, and noise reduction. For the LM2931CM, a low ESR (Equivalent Series Resistance) ceramic capacitor, usually in the range of 1µF to 10µF, is generally recommended. The ESR value is crucial; too low or too high can affect stability. Always refer to the specific datasheet for the recommended capacitance range and ESR limits. Proper placement, minimizing trace length between the output capacitor and the regulator's output/ground pins, is also vital for optimal performance and stability.

4. What are the available output voltage options for the LM2931CM LDO Voltage Regulator SOP-8, or is it an adjustable regulator?

   The LM2931CM LDO Voltage Regulator SOP-8 is primarily available as a fixed-output voltage regulator, designed for simplicity and reliability in common power supply applications. While the base LM2931 series can include both fixed and adjustable versions, the 'CM' suffix often indicates a specific fixed-output variant, or it might refer to the package type within a series that offers multiple fixed voltages. Common fixed output voltages for this family typically include 3.3V and 5V, which are widely used in digital and analog circuits. For precise information on the exact fixed output voltage of a specific LM2931CM part, it is crucial to consult the complete part number (e.g., LM2931CM-3.3 for 3.3V output) and its corresponding datasheet. This ensures you select the correct LM2931CM LDO Voltage Regulator SOP-8 variant for your desired system voltage.

5. Given its SOP-8 package, what thermal management considerations should be applied when using the LM2931CM LDO Voltage Regulator SOP-8 in demanding applications?

   The SOP-8 package of the LM2931CM LDO Voltage Regulator SOP-8 is compact, which is excellent for space-constrained SMD designs, but it requires careful thermal management in demanding applications. The power dissipated by the regulator (Pd) is calculated as (Vin - Vout) * Iout + (Vin * Iq). This heat must be efficiently transferred away from the device to prevent the junction temperature (Tj) from exceeding its maximum rating. For the LM2931CM, integrating sufficient copper pour on the PCB connected to the ground plane (typically pin 4 and 5 for SOP-8) can act as a heatsink. Spreading the heat over a larger copper area significantly improves thermal resistance. In high-current or high-input-to-output differential voltage applications, derating the output current or considering external heatsinking on the PCB becomes essential to maintain the LM2931CM LDO Voltage Regulator SOP-8 within its safe operating area and ensure long-term reliability.

6. What integrated protection features does the LM2931CM LDO Voltage Regulator SOP-8 offer to enhance system reliability?

   The LM2931CM LDO Voltage Regulator SOP-8 incorporates several robust integrated protection features designed to enhance system reliability and safeguard both the regulator and the downstream circuitry. Key among these are thermal shutdown and current limiting. Thermal shutdown protection automatically disables the regulator if its internal junction temperature exceeds a safe operating limit, preventing damage from excessive power dissipation. Once the temperature drops to a safe level, the regulator typically resumes operation. Current limiting, or short-circuit protection, prevents damage by restricting the output current to a safe maximum level during an overload or short-circuit condition. These features make the LM2931CM LDO Voltage Regulator SOP-8 a reliable choice for critical applications, providing an extra layer of defense against common fault conditions in electronic systems.

7. For which specific types of power-sensitive and battery-powered applications is the LM2931CM LDO Voltage Regulator SOP-8 particularly well-suited?

   The LM2931CM LDO Voltage Regulator SOP-8 is exceptionally well-suited for a wide array of power-sensitive and battery-powered applications due to its low dropout voltage, low quiescent current, and stable output. Its ability to efficiently regulate voltage with minimal input-to-output differential makes it ideal for extending battery life in portable electronics such as handheld meters, remote sensors, and IoT (Internet of Things) nodes. It's also a strong candidate for automotive applications, where stable power supplies are crucial, and its robust design often includes features like reverse battery protection (depending on the specific variant). Furthermore, its compact SOP-8 package makes the LM2931CM LDO Voltage Regulator SOP-8 perfect for space-constrained designs in industrial control systems, medical devices, and other low-power embedded systems where reliable and efficient voltage regulation is paramount.
