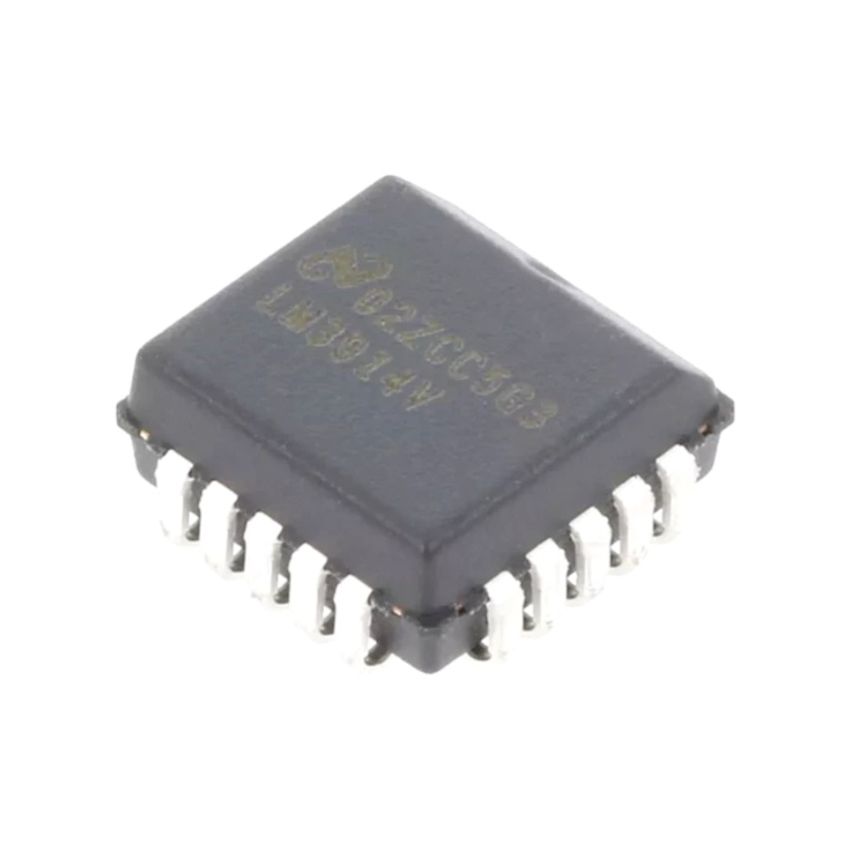

LM3914V IC: driver; display controller; PLCC20; 30mA; 1.35÷25VDC *NEW*

The LM3914V Dot/Bar Display Driver IC is a premium monolithic integrated circuit designed to provide a highly accurate visual representation of analog signal levels. This brand-new component is the gold standard for engineers and developers who require a reliable, high-performance display controller for linear signals. Unlike traditional digital displays that might require complex programming and interfacing, the LM3914V operates on a purely analog basis, driving a sequence of ten LEDs in response to the input voltage. This makes it an indispensable tool for creating real-time indicators where immediate visual feedback is essential. Whether you are designing a high-end audio console, a precision medical instrument, or a sophisticated industrial control panel, this IC offers the perfect blend of simplicity, accuracy, and professional-grade performance in a compact 20-pin PLCC package.

Technically, the LM3914V is engineered to handle a wide range of input voltages, operating effectively from a supply as low as 1.35V up to 25V DC. This broad operating window makes it compatible with a variety of power environments, from low-voltage battery-powered devices to high-voltage industrial systems. Each of the ten outputs is capable of driving up to 30mA, which is more than sufficient for most modern high-brightness LEDs, and the current is internally regulated. This internal regulation is a key benefit, as it eliminates the need for individual current-limiting resistors for each LED, significantly simplifying the circuit board layout and reducing the overall component count. The IC's internal voltage reference and 10-step divider are calibrated to provide a linear response, ensuring that each step in the display represents an equal increment in the input signal level.

The versatility of the LM3914V is further enhanced by its dual-mode functionality, allowing users to choose between a 'dot' or 'bar' display format. In bar mode, the LEDs light up cumulatively, creating a solid bar of light that is easy to read from a distance and ideal for level monitoring. In dot mode, only a single LED is illuminated at any given time, which is perfect for precision tuning or for applications where power efficiency is a priority, such as in portable or handheld equipment. Switching between these modes is achieved simply by changing the connection of a single pin, providing designers with the flexibility to adapt the display to the specific needs of the end-user. This adaptability has made the LM3914V a favorite in the electronics industry for decades, and this new stock ensures you have access to the highest quality silicon available.

For those building high-resolution displays, the LM3914V is designed to be easily cascaded. By connecting multiple ICs in series, you can create 20, 50, or even 100-segment displays that maintain perfect linearity across the entire range. This is particularly useful in laboratory equipment or high-fidelity audio gear where a 10-segment display might not provide the necessary granularity. The PLCC20 package is designed for surface-mount technology (SMT), offering a small footprint and robust thermal performance. This makes it suitable for modern, high-density PCB designs where space is at a premium but reliability cannot be compromised. As a brand-new component, you can expect full compliance with original specifications, including low offset voltages and precise comparator thresholds, which are critical for maintaining the accuracy of the visual readout.

Durability and long-term stability are hallmarks of the LM3914V. This IC is built to withstand the rigors of professional use, maintaining its calibration even under varying temperature conditions. Its rugged design ensures a long service life, making it a dependable choice for mission-critical applications where failure is not an option. The use of a dedicated display driver like the LM3914V also offloads the processing requirements from a system's main CPU or microcontroller, allowing for smoother operation and more responsive visual updates. This hardware-based approach to signal visualization remains the preferred method for many designers who value the instantaneous response and high reliability of analog circuitry over digital alternatives. Investing in new LM3914V ICs ensures that your production run or repair project is supported by components with a full lifecycle ahead of them.

Elevate your project's interface with the professional performance of the LM3914V Dot/Bar Display Driver IC. This component is the ideal solution for anyone seeking to add a clear, intuitive, and highly responsive visual indicator to their electronic devices. With its wide voltage range, internal current regulation, and flexible display modes, it provides an unmatched level of convenience and functionality. By choosing this new, high-quality IC, you are guaranteeing the best possible performance and longevity for your equipment. Don't settle for inferior display solutions when you can implement an industry-standard driver that has proven its worth in countless professional applications. Order your LM3914V ICs today and take the first step toward creating a superior user experience with precise and reliable analog visualization. Your design deserves the best, and the LM3914V delivers exactly that.
