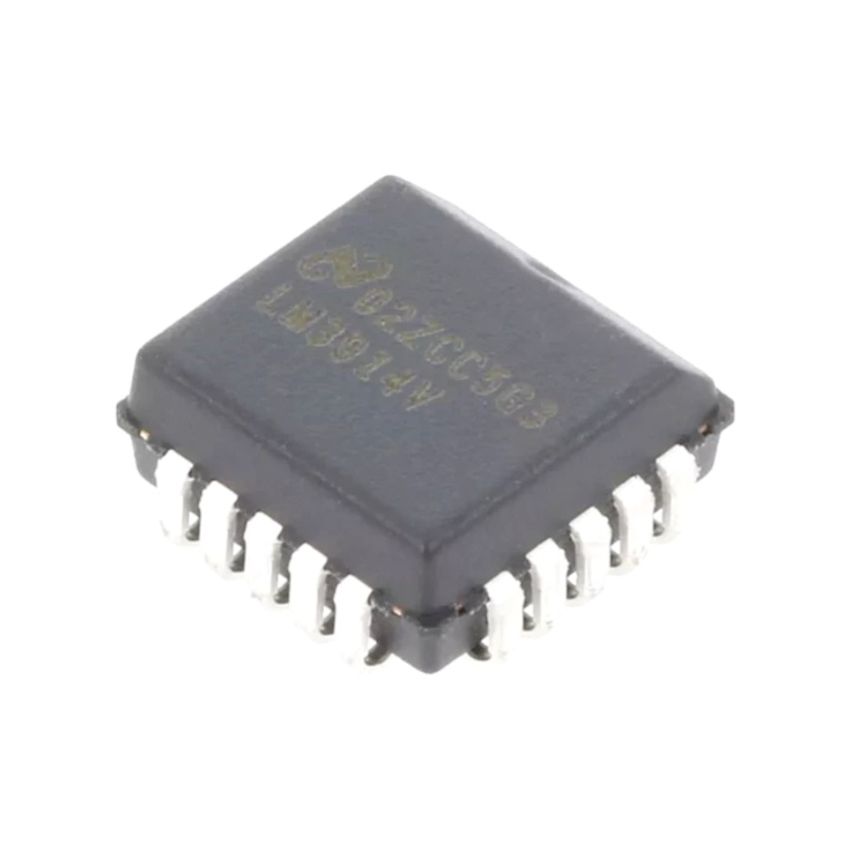

LM3914V IC DRIVER DOT BAR DISPLAY 20PLCC *REFURB

The LM3914V Dot/Bar Display Driver is a highly versatile integrated circuit designed to sense analog voltage levels and drive a series of ten LEDs, providing a linear analog display. This refurbished version offers an exceptional value proposition for engineers, hobbyists, and repair technicians looking for reliable performance in a cost-effective package. The LM3914 series is renowned for its simplicity and effectiveness, eliminating the need for complex microcontrollers or multiple discrete comparators when building visual indicators. This IC is capable of driving various types of displays, including individual LEDs, 10-segment bar graphs, or even small lamps. By utilizing a refurbished component, you are opting for a part that has been professionally inspected and tested to ensure it meets original functional specifications, making it a sustainable and economical choice for both legacy repairs and new prototyping projects.

At the core of the LM3914V is a precision ten-step voltage divider and ten individual high-gain comparators, which work together to provide a highly accurate representation of the input signal. The device features an internal reference voltage, making it a self-contained system that requires very few external components to operate. One of its standout features is the ability to switch between 'dot' and 'bar' display modes with a simple pin configuration. In bar mode, the display fills up like a traditional level meter, while in dot mode, only a single LED is lit to represent the current voltage level, which is ideal for reducing power consumption in battery-operated devices. This flexibility makes the LM3914V a staple in the design of audio level meters, battery monitors, and industrial process indicators where a quick visual reference of a variable signal is required.

The LM3914V comes in a 20-pin Plastic Leaded Chip Carrier (PLCC) package, which is particularly advantageous for high-density circuit designs and automated assembly processes. This surface-mount package provides excellent mechanical stability and reliable electrical connections, even in environments subject to vibration. For those working on vintage electronics or professional audio equipment, the PLCC20 form factor is often the required standard for existing PCB layouts. Despite being refurbished, these units undergo rigorous quality control to ensure that the lead integrity and thermal characteristics are preserved. The IC's ability to operate over a wide supply voltage range and its internal current limiting for the LED outputs simplify the overall circuit design by removing the need for external resistors, further saving board space and reducing the total bill of materials for your project.

Applications for the LM3914V are vast and varied, spanning across multiple industries. In the automotive sector, it is frequently used for creating custom tachometers, fuel gauges, or temperature monitors. In the world of professional audio, it serves as the foundation for VU meters and signal strength indicators, providing a responsive and aesthetically pleasing visual feedback of sound levels. Electronics enthusiasts often use this IC for DIY projects such as solar charge controllers or laboratory power supply indicators. The refurbished LM3914V provides these users with a high-performance solution that doesn't break the budget, allowing for more complex and visually informative designs. Its ability to be cascaded also means that multiple drivers can be linked together to create longer 20, 30, or even 100-segment displays for high-resolution monitoring applications.

Choosing refurbished electronics components like the LM3914V is a smart move for maintaining older systems where new-old-stock (NOS) may be difficult to find or excessively expensive. These units are salvaged from high-quality equipment and subjected to functional testing to verify that each of the ten outputs and the internal reference are working perfectly. This ensures that the linearity of the display remains within the expected parameters, providing a dependable readout for critical measurements. Furthermore, the use of refurbished components supports a more circular economy by extending the life of functional silicon. For educational institutions and hobbyist workshops, these parts provide a low-risk way to experiment with analog-to-visual conversion circuits without sacrificing the quality of the final output, ensuring that every project is built on a foundation of proven technology.

Incorporate the LM3914V Dot/Bar Display Driver into your next design to achieve professional-grade visual monitoring with ease. Whether you are restoring a classic piece of studio gear or building a custom monitoring solution from scratch, this IC provides the reliability and precision you need. Its dual-mode operation, internal reference, and current-regulated outputs make it one of the most user-friendly display drivers ever produced. By selecting this refurbished PLCC20 version, you gain access to a legendary component at a fraction of the cost of new alternatives, all while ensuring your project remains compatible with industry-standard layouts. Secure your supply of these essential ICs today and add a clear, responsive visual dimension to your electronic devices. Experience the efficiency of a dedicated display driver and give your projects the professional finish they deserve with the LM3914V.
