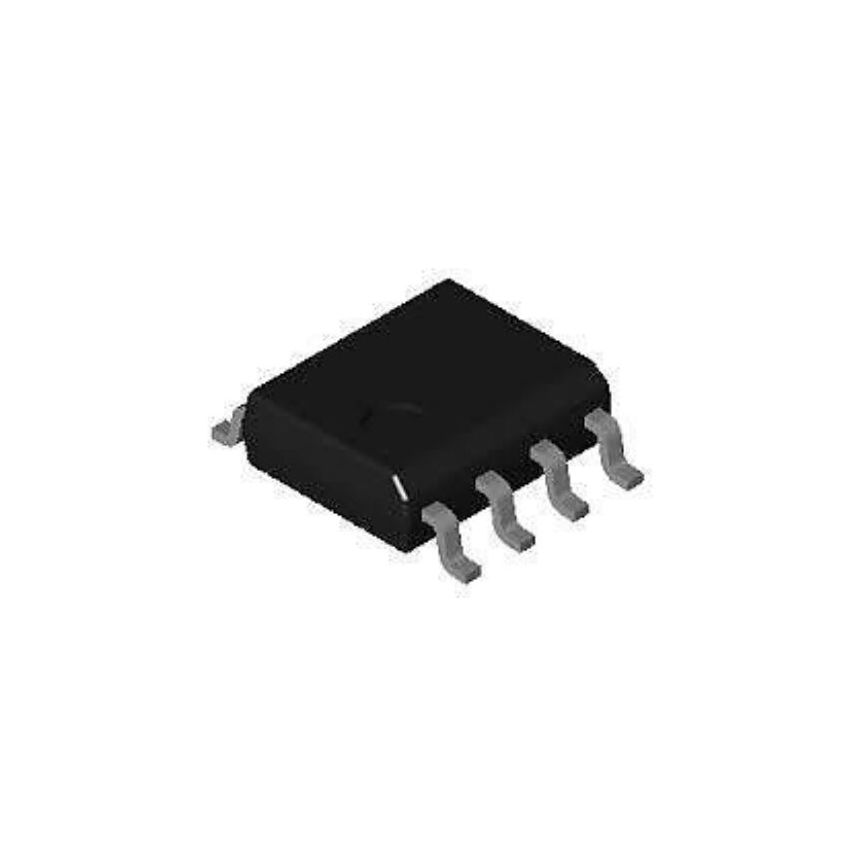

LMT393 SMD INTEGRATED CIRCUIT SOP-8

The LMT393 is a precision dual comparator integrated circuit, available in a compact SOP-8 (Small Outline Package) for surface mount applications. This versatile IC is designed for accurate voltage comparison, making it ideal for a wide range of applications including voltage monitoring, zero-crossing detection, and oscillator circuits. Its low input bias current and high gain ensure precise and reliable performance. The LMT393 is a cost-effective solution for applications requiring accurate voltage level detection and control. Its small size and ease of integration make it a popular choice for modern electronic designs.

Key features of the LMT393 include a wide operating voltage range, low input offset voltage, and high common-mode rejection ratio. These characteristics ensure that the comparator operates accurately and reliably under varying conditions. The wide operating voltage range allows it to be used in both low-voltage and high-voltage applications. The low input offset voltage minimizes errors in voltage comparison, while the high common-mode rejection ratio reduces the effects of noise and interference. The LMT393 also features an open-collector output, allowing it to be easily interfaced with other digital circuits.

The LMT393 finds extensive use in various electronic circuits, including power supply monitoring, over-voltage protection, and signal conditioning. In power supply monitoring, it is used to detect undervoltage and overvoltage conditions, protecting sensitive electronic components from damage. In over-voltage protection circuits, it is used to trigger a shutdown mechanism when the input voltage exceeds a predetermined threshold. In signal conditioning applications, it is used to convert analog signals into digital signals, enabling easy processing by microcontrollers and other digital devices. The comparator is also used in window comparators, level detectors, and other specialized circuits.

When selecting the LMT393 for your electronic projects, consider its electrical characteristics and ensure that they meet the requirements of your application. Check the datasheet for detailed specifications, including the input voltage range, the output current, and the response time. Proper biasing is essential to ensure that the comparator operates correctly and provides accurate voltage comparison. Use appropriate pull-up resistors for the open-collector output to ensure that the output voltage reaches the desired level. Consider using hysteresis to prevent oscillations and improve the stability of the comparator circuit.

Enhance your electronic designs with the LMT393 SMD Integrated Circuit SOP-8 and experience superior performance and reliability. Its compact size, high accuracy, and wide operating voltage range make it an ideal choice for a wide range of applications. Don't settle for inferior components – invest in the LMT393 today and take your electronic projects to the next level. Order now and take advantage of our competitive pricing and fast shipping. Experience the difference that the LMT393 can make in your electronic circuits.
