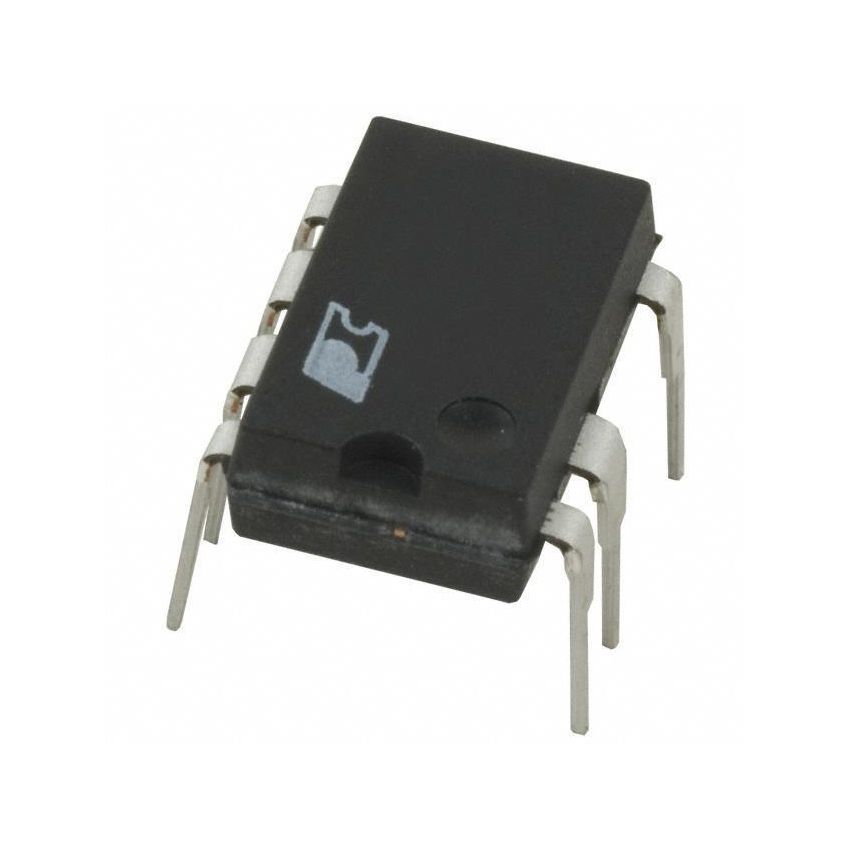

LNK616PG IC OFFLINE SWIT OTP CV/CC 8DIP

The LNK616PG is a versatile offline switch IC designed for applications requiring constant voltage (CV) and constant current (CC) regulation. Encased in an 8DIP package, this integrated circuit offers a cost-effective solution for power supplies needing a wide input voltage range and robust performance. It incorporates a power MOSFET, oscillator, on/off control circuit, high-voltage switched current source, current limit, and thermal shutdown circuitry, simplifying the design and reducing the component count of power supplies. The OTP (Over-Temperature Protection) feature enhances the reliability of the device. This makes it an ideal choice for applications ranging from battery chargers to LED drivers.

This offline switcher IC provides excellent energy efficiency, meeting stringent global energy efficiency standards. Its integrated features minimize external components, leading to a smaller PCB footprint and reduced system cost. The LNK616PG's robust protection features, including over-temperature protection and over-current protection, ensure reliable operation even under fault conditions. The device's high level of integration also simplifies the manufacturing process, reducing assembly time and improving overall product reliability. Its CV/CC regulation capability makes it suitable for applications requiring precise voltage and current control.

Key specifications of the LNK616PG include a wide input voltage range, typically from 85 VAC to 265 VAC, making it suitable for global applications. The integrated power MOSFET offers low on-resistance, minimizing conduction losses and improving efficiency. The device also features accurate current limiting, protecting the power supply from overload conditions. The thermal shutdown circuitry prevents overheating, ensuring safe and reliable operation. The LNK616PG's high switching frequency allows for smaller transformer sizes, further reducing the overall size and cost of the power supply.

The LNK616PG is commonly used in applications such as battery chargers, LED drivers, and small power adapters. Its high efficiency and low standby power consumption make it an excellent choice for energy-conscious designs. The device's robust protection features and wide input voltage range ensure reliable operation in a variety of environments. Its ease of use and integrated features simplify the design process, allowing engineers to quickly develop and deploy efficient and cost-effective power supplies. It is a popular choice for designers seeking a reliable and efficient offline switching solution with CV/CC capabilities.

Enhance your power supply design with the LNK616PG IC offline switch. Benefit from its CV/CC regulation, integrated protection features, and efficient operation. Ideal for battery chargers, LED drivers, and more, this IC simplifies your design process and ensures reliable performance. Order yours today and optimize your power solutions!
