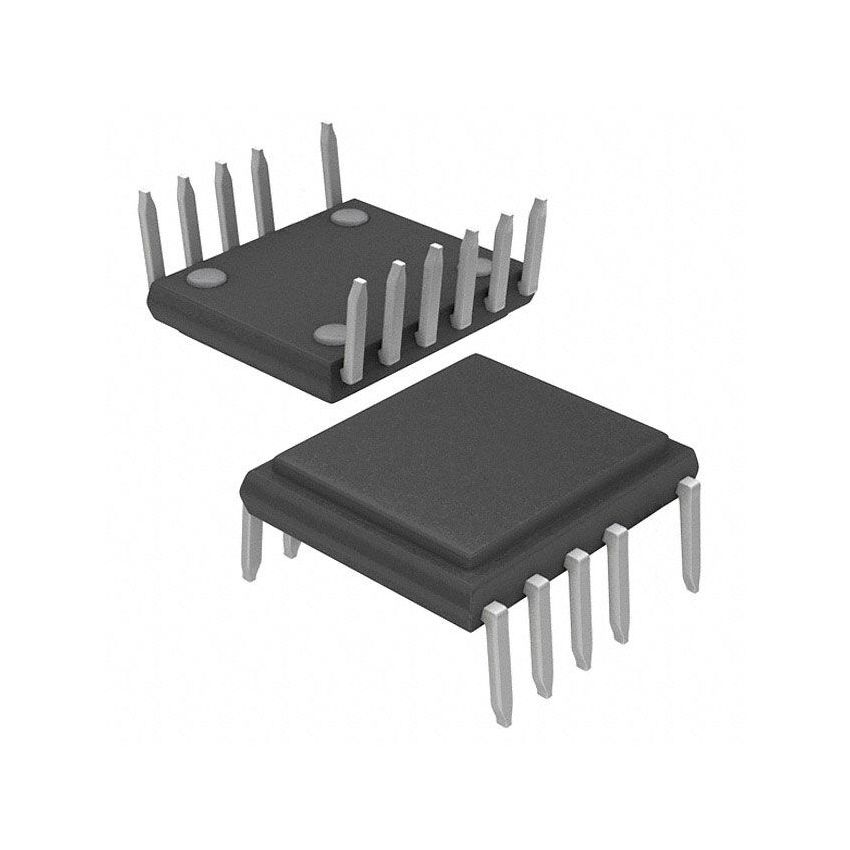

LNK6768V IC OFFLINE SWITCH FLYBACK 12EDIP

The LNK6768V is a highly integrated offline switch IC designed for flyback converter applications, packaged in a 12EDIP form factor. This integrated circuit simplifies power supply designs by incorporating a power MOSFET, oscillator, on/off control, high-voltage switched current source, current limit, and thermal shutdown circuitry all within a single package. It's an ideal solution for creating efficient and reliable power supplies for a wide range of electronic devices, including appliances, consumer electronics, and industrial controls. The LNK6768V minimizes the need for external components, reducing overall system costs and improving the power supply's reliability. Its robust design ensures stable operation, even under harsh environmental conditions, making it a dependable choice for demanding applications.

This offline switch IC offers exceptional performance characteristics, including high energy efficiency and low standby power consumption. The integrated power MOSFET is optimized for flyback topology, providing efficient power conversion and reducing switching losses. The oscillator ensures a stable and predictable switching frequency, while the on/off control allows for precise regulation of the output voltage. The high-voltage switched current source provides a stable current supply to the load, and the current limit function protects the IC from overcurrent conditions. The thermal shutdown circuitry prevents overheating, ensuring the IC's long-term reliability. These features contribute to a robust and efficient power supply design.

The LNK6768V is designed for ease of use, simplifying the design process and reducing time-to-market. The 12EDIP package is easy to handle and solder, making it suitable for both automated and manual assembly processes. The integrated features minimize the need for external components, reducing the bill of materials and simplifying the PCB layout. The IC is also compatible with a wide range of input voltages, making it suitable for global applications. Its robust design and comprehensive protection features ensure reliable operation even under challenging conditions, making it a dependable choice for power supply designs.

Applications for the LNK6768V include power supplies for home appliances, such as refrigerators, washing machines, and air conditioners. It is also suitable for consumer electronics, such as televisions, set-top boxes, and audio equipment. In industrial controls, it can be used in power supplies for motor drives, programmable logic controllers (PLCs), and other industrial automation equipment. The LNK6768V's high efficiency and reliability make it an excellent choice for any application requiring a compact and efficient power supply. Its integrated features and ease of use simplify the design process and reduce overall system cost.

Upgrade your power supply designs with the LNK6768V IC. Experience enhanced efficiency, reliability, and simplified design. Order yours today and revolutionize your power solutions!
