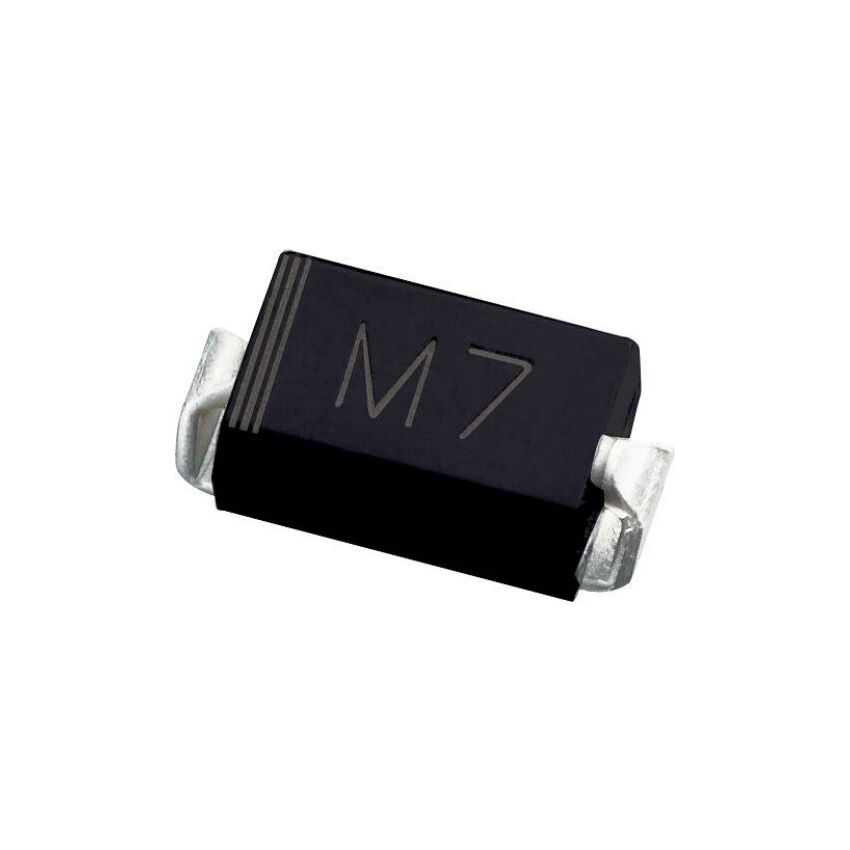

M7 DIODE 1N4007 SMD - Type M7 DIODE (LOT OF 10)

The M7 diode, a surface-mount device (SMD) variant of the popular 1N4007 diode, is a versatile and reliable rectifier diode designed for a wide range of electronic applications. This lot of 10 M7 diodes offers a cost-effective solution for projects requiring efficient AC to DC conversion in a compact form factor. The M7 diode boasts a high voltage rating of 1000V and a forward current capacity of 1A, making it suitable for various low to medium power rectification needs. Its small size and SMD packaging allow for easy integration into densely populated circuit boards, saving valuable space and simplifying assembly. The M7 diode is a staple in power supplies, signal rectification, and general-purpose applications.

This SMD rectifier diode offers several key features, including a low forward voltage drop, high surge current capability, and excellent reliability. The low forward voltage drop minimizes power losses, improving overall efficiency. The high surge current capability allows the diode to withstand transient overloads, enhancing its robustness and protecting the connected circuitry. The M7 diode is designed to provide stable and consistent performance over a wide range of operating conditions. Its small size and SMD packaging make it ideal for applications where space is limited. The M7 diode is a cost-effective and reliable solution for AC to DC conversion.

The M7 diode finds applications in diverse fields, including power supplies for small electronic devices, battery chargers, and LED lighting. It is commonly used in signal rectification circuits for demodulation, signal processing, and noise reduction. The device can also be employed in voltage doublers, voltage multipliers, and other voltage conversion circuits. Its high voltage rating and current capacity make it suitable for protecting sensitive electronic components from reverse voltage and overvoltage conditions. The M7 diode is a dependable choice for any application requiring efficient and reliable AC to DC rectification in a compact form factor.

When integrating the M7 diode into a circuit, it is essential to observe the correct polarity. The diode should be connected in series with the load, with the cathode (marked with a band) connected to the positive side of the DC output. The SMD package allows for easy soldering onto a printed circuit board (PCB) using standard reflow soldering techniques. It is recommended to use a solder paste and a reflow oven for optimal soldering results. The M7 diode is designed to be robust, but it should be protected from excessive heat and mechanical stress during soldering and operation. Consider using a bypass capacitor to smooth the rectified DC voltage and reduce noise.

In conclusion, the M7 diode (1N4007 SMD) is a reliable and versatile component suitable for a wide range of AC to DC rectification applications. Its high voltage and current ratings, low forward voltage drop, and compact SMD package make it an excellent choice for power supplies, signal rectification, and general-purpose applications. Whether you are building a power supply, rectifying a signal, or protecting sensitive components, the M7 diode provides efficient and dependable AC to DC conversion in a small form factor. Order your lot of 10 M7 diodes today and experience the peace of mind that comes with using a high-quality rectifier diode. Ensure your projects are powered with precision and reliability – choose the M7 diode for your rectification needs.
