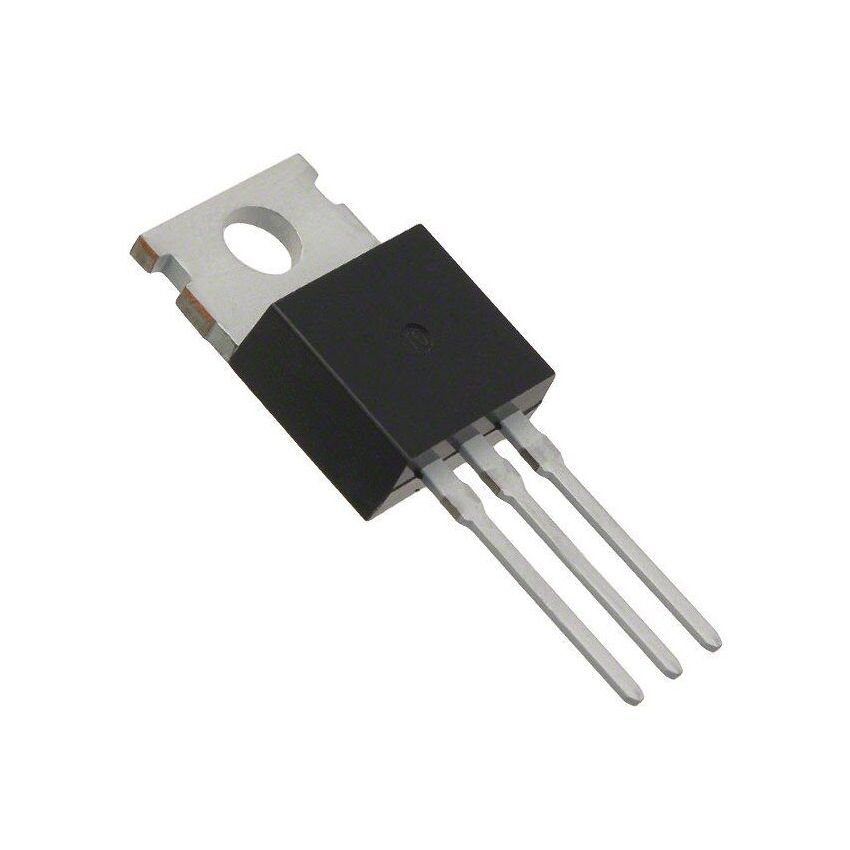

MBR41H100CTG DIODE ARRAY SCHOTTKY 100V TO220

The MBR41H100CTG is a high-performance Schottky diode array designed for high-efficiency rectification and freewheeling applications. Packaged in a TO-220 configuration, this diode array comprises two individual Schottky diodes with a reverse voltage rating of 100V. This dual-diode configuration is ideal for applications such as center-tapped rectifiers, OR-ing circuits, and freewheeling diodes in motor control circuits. The common cathode configuration simplifies circuit design and reduces component count. The Schottky barrier technology employed in the MBR41H100CTG offers a low forward voltage drop (VF) and fast switching speed, resulting in reduced power dissipation and improved efficiency compared to traditional PN junction diodes. This makes it suitable for high-frequency switching applications.

The TO-220 package provides excellent thermal performance, allowing the MBR41H100CTG to handle high currents without overheating. The large surface area of the package facilitates efficient heat dissipation, ensuring reliable operation. The MBR41H100CTG is designed with robust protection features, including surge current protection and avalanche capability, ensuring reliable operation even under demanding conditions. It is commonly used in applications such as switch-mode power supplies (SMPS), freewheeling diodes in motor drives, and reverse polarity protection circuits. Its high efficiency, fast switching speed, and robust construction make it a versatile choice for a wide range of power electronic applications. Improve your power supply efficiency with the MBR41H100CTG Schottky diode array.

Benefit from low forward voltage drop and fast switching speed. Simplify your board layout and reduce component count with this versatile device. Order the MBR41H100CTG today and enhance the performance of your power conversion systems. Get superior rectification performance. Add the MBR41H100CTG to your cart now.
