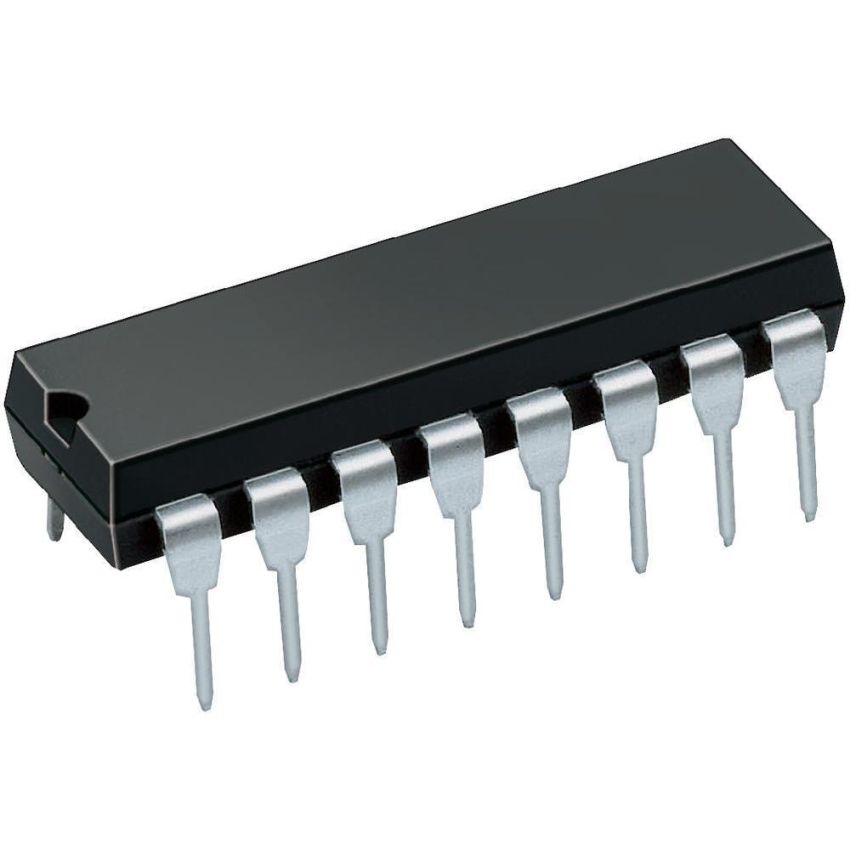

MC14051BCP Multiplexer Switch ICs 3-18V SP DIP-16

The MC14051BCP is a versatile single 8-channel analog multiplexer/demultiplexer IC housed in a 16-pin DIP (Dual In-Line Package). Designed to operate over a wide voltage range of 3V to 18V, this integrated circuit provides efficient signal routing for a variety of analog and digital applications. As a multiplexer, the MC14051BCP selects one of eight input channels and connects it to a single output channel. Conversely, as a demultiplexer, it routes a single input signal to one of eight output channels. This bidirectional capability makes it suitable for applications where signal selection or distribution is required. The MC14051BCP features low ON resistance, typically in the range of tens of ohms, minimizing signal loss and distortion.

Its low OFF leakage current ensures that signals are not inadvertently routed to other channels when they are not selected. The control inputs of the MC14051BCP are compatible with TTL and CMOS logic levels, allowing for easy interfacing with a wide range of digital circuits. The IC requires a binary address to select the desired channel, with three address lines (A, B, C) used to specify one of the eight channels. An enable input is also provided, allowing the multiplexer/demultiplexer to be disabled when not in use, further reducing power consumption. The DIP-16 package is a through-hole package that offers easy installation and soldering on standard printed circuit boards (PCBs). The MC14051BCP is commonly used in applications such as analog signal routing, data acquisition systems, audio and video switching, and test equipment.

Its wide operating voltage range, low ON resistance, and TTL/CMOS compatibility make it a versatile choice for a variety of applications. When using the MC14051BCP, it is important to ensure that the input signals are within the specified voltage range and that the control signals are properly biased. Proper grounding and decoupling techniques should also be employed to minimize noise and interference. If you are looking for a reliable and versatile analog multiplexer/demultiplexer IC, the MC14051BCP is an excellent choice. Its wide operating voltage range, low ON resistance, and TTL/CMOS compatibility make it a valuable addition to any electronic design. Simplify your signal routing with the MC14051BCP multiplexer IC.

Order now and experience efficient and reliable signal selection!
