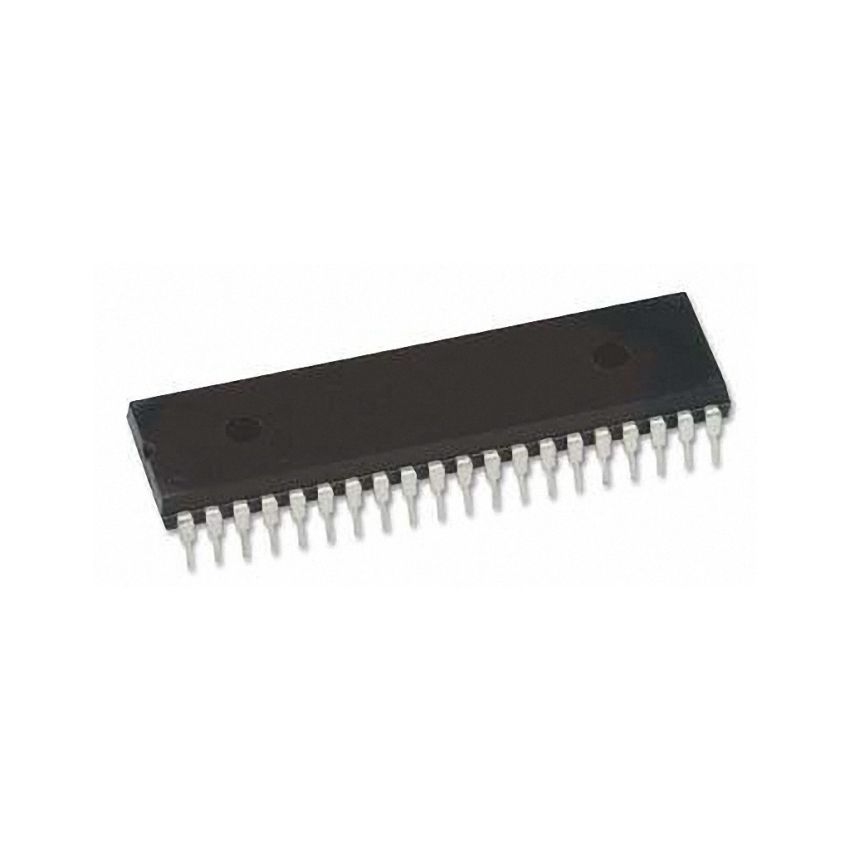

MC6821P MOTOROLA INTEGRATED CIRCUIT DIP-40

The MC6821P is a versatile Peripheral Interface Adapter (PIA) integrated circuit manufactured by Motorola, housed in a DIP-40 (Dual In-line Package) package. This IC serves as a crucial interface between microprocessors and peripheral devices, enabling seamless communication and control. The MC6821P provides two 8-bit bidirectional I/O ports, along with control lines, allowing microprocessors to interact with a wide array of external devices such as sensors, actuators, and displays. Its programmable nature allows for flexible configuration to meet the specific requirements of various applications, making it a cornerstone in many legacy and embedded systems.

The MC6821P features two independent 8-bit ports (Port A and Port B), each with its own data direction register (DDR) and control register. The DDR determines whether each pin on the port is configured as an input or an output, providing granular control over the data flow. The control registers manage interrupt handling, handshaking signals, and other control functions, enabling sophisticated communication protocols. The DIP-40 package ensures easy integration into breadboards and through-hole PCBs, making it accessible for both prototyping and production environments. Its robust design and wide operating voltage range contribute to its reliability and longevity.

The MC6821P finds extensive use in industrial control systems, where it facilitates communication between microprocessors and various sensors and actuators. It is also commonly employed in data acquisition systems, enabling the collection and processing of real-world data. In embedded systems, the MC6821P serves as a vital link between the processor and peripheral devices such as LCD displays, keypads, and motor controllers. Its programmable nature allows it to be adapted to a wide range of applications, making it a versatile and cost-effective solution for interfacing with external hardware. The MC6821P's ability to handle interrupts and handshaking signals ensures reliable and efficient data transfer.

When selecting a peripheral interface adapter for your project, the MC6821P stands out due to its combination of versatility, reliability, and ease of use. Its two 8-bit bidirectional ports provide ample connectivity for a wide range of peripheral devices, while its programmable nature allows for flexible configuration to meet the specific requirements of your application. Whether you are designing industrial control systems, data acquisition systems, or embedded systems, the MC6821P is a proven and dependable solution. Its DIP-40 package ensures easy integration into your existing hardware setup.

Unlock the potential of your legacy and embedded systems with the MC6821P Motorola Integrated Circuit. Experience seamless communication between your microprocessor and peripheral devices with its versatile 8-bit bidirectional I/O ports. Perfect for industrial control, data acquisition, and embedded applications. Order yours today and bridge the gap between your processor and the external world. Don't let outdated technology hold you back – choose the MC6821P for reliable and efficient peripheral interfacing. Click here to purchase now and revitalize your projects!
