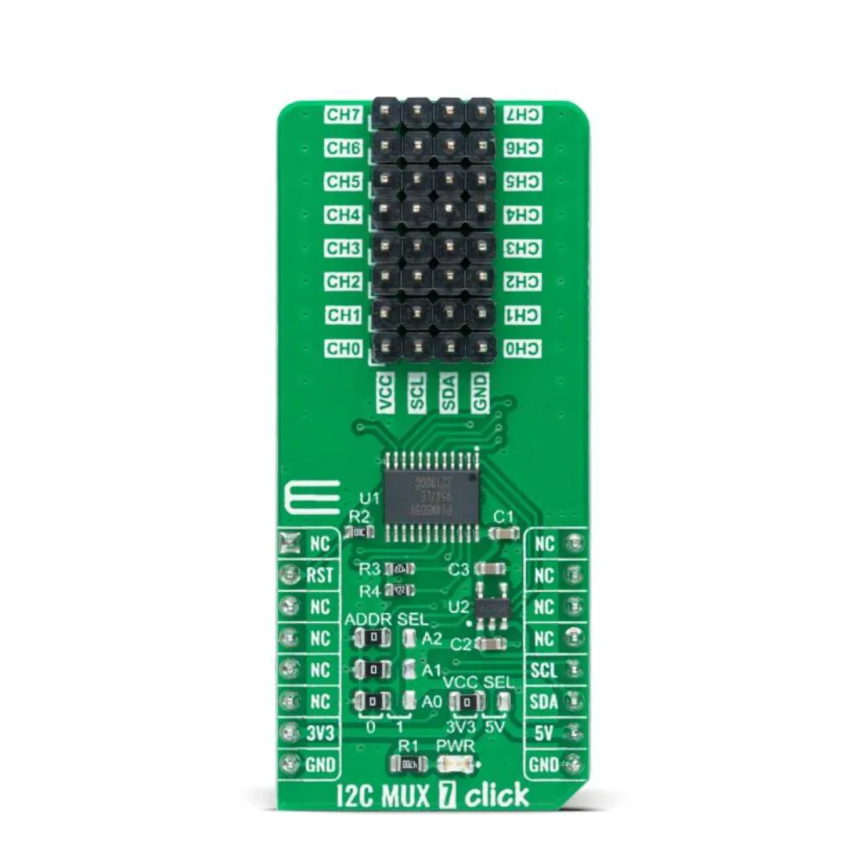

MIKROE-5069 Interface Development Tools I2C MUX 7 Click

The MIKROE-5069 Interface Development Tools I2C MUX 7 Click is a versatile and user-friendly development tool designed to simplify the integration of multiple I2C devices into your projects. This Click board features an I2C multiplexer, allowing you to connect up to seven different I2C devices to a single I2C bus. This is particularly useful when you have multiple devices with the same I2C address or when you need to expand the number of I2C devices connected to your microcontroller. The MIKROE-5069 is characterized by its ease of use, compact design, and compatibility with MikroElektronika's mikroBUS standard, making it an ideal choice for both beginners and experienced developers.

The I2C MUX 7 Click board simplifies the process of managing multiple I2C devices by providing a convenient way to select which device is active on the I2C bus. This eliminates the need for complex address decoding logic and reduces the number of pins required on your microcontroller. The Click board is equipped with a PCA9547 I2C multiplexer, which offers low on-resistance and fast switching speeds, ensuring reliable communication with your I2C devices. The mikroBUS interface provides a standardized connection to MikroElektronika development boards, making it easy to integrate the I2C MUX 7 Click into your existing projects.

The MIKROE-5069 I2C MUX 7 Click finds extensive use in sensor networks, where multiple sensors need to be connected to a single microcontroller. It is also commonly employed in robotics projects, where various I2C-based sensors and actuators need to be controlled. In addition, this Click board is well-suited for use in data logging applications, where multiple I2C memory devices need to be accessed. Its ability to multiplex up to seven I2C devices makes it an excellent choice for these demanding applications. The I2C MUX 7 Click is also used in industrial automation systems, allowing for the integration of multiple I2C-based sensors and control devices.

When using the MIKROE-5069, consider the I2C address of each device connected to the multiplexer. You will need to select the appropriate channel on the multiplexer to communicate with each device. The Click board is supplied with example code and documentation to help you get started quickly. Proper power supply and grounding are also crucial to ensure stable operation. By carefully considering these factors, designers can leverage the full potential of the MIKROE-5069 to create efficient and reliable I2C communication systems. Its ease of use and versatility make it a valuable tool in any embedded development toolkit.

In conclusion, the MIKROE-5069 Interface Development Tools I2C MUX 7 Click is a versatile and reliable development tool that offers excellent performance in a wide range of I2C communication applications. Its ease of use, compact design, and compatibility with the mikroBUS standard make it an ideal choice for demanding environments. Whether you are designing sensor networks, robotics projects, or data logging systems, the MIKROE-5069 can help you achieve optimal efficiency and reliability. Don't miss out on the opportunity to enhance your designs with this high-performance I2C multiplexer. Order your MIKROE-5069 today and experience the difference!
