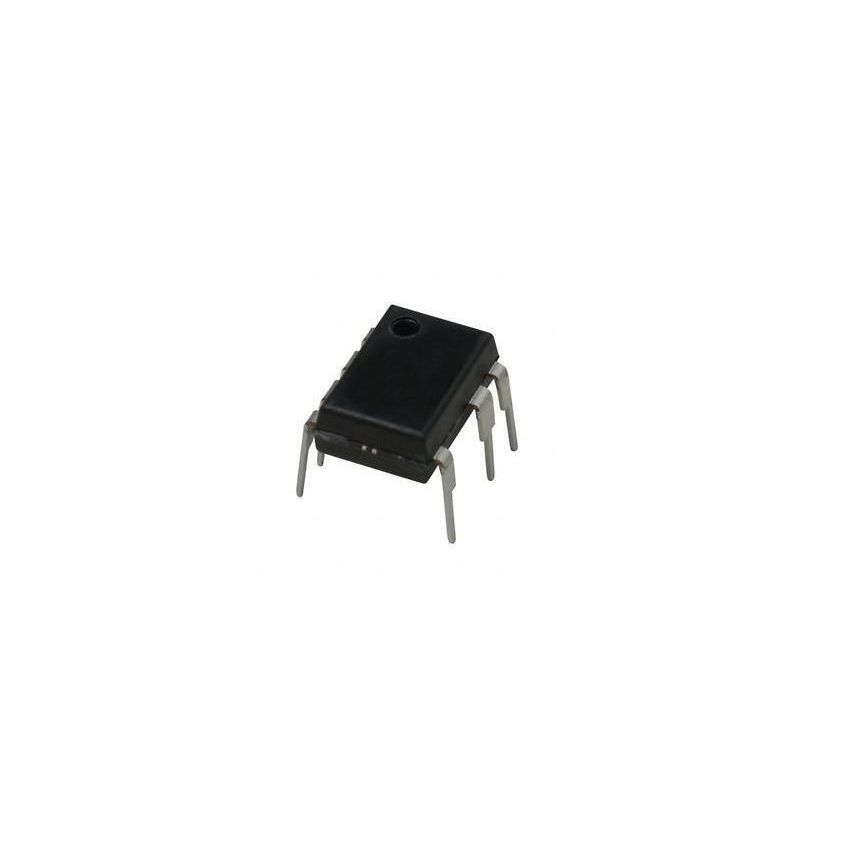

MIP2C4 INTEGRATED CIRCUIT DIP-7

The MIP2C4 is a highly integrated power management integrated circuit (IC) designed for efficient and compact power supply solutions. Encased in a DIP-7 (Dual In-line Package with 7 pins) package, this IC simplifies the design process by integrating a PWM (Pulse Width Modulation) controller, a high-voltage power MOSFET, and comprehensive protection circuitry into a single chip. This integration minimizes the need for external components, reducing board space and overall system costs. The DIP-7 package facilitates easy prototyping and seamless integration into existing circuit designs, making it a popular choice for both new projects and replacements in legacy systems. Known for its reliability and stable performance, the MIP2C4 is well-suited for a broad spectrum of power supply applications, ensuring consistent and dependable operation.

Key specifications of the MIP2C4 include a high-voltage start-up circuit, which eliminates the requirement for an external start-up resistor, further streamlining the design. The IC operates at a fixed switching frequency, typically around 65 kHz, which aids in minimizing electromagnetic interference (EMI). The MIP2C4 also incorporates robust protection features, such as over-voltage protection (OVP), over-current protection (OCP), and over-temperature protection (OTP), guaranteeing safe and reliable operation under various conditions. The IC's low start-up current and minimal operating current contribute to enhanced efficiency. The MIP2C4 is capable of delivering output power ranging from a few watts to several tens of watts, depending on the specific application and operating parameters. The operating temperature range generally spans from -20°C to +85°C, making it suitable for diverse environmental conditions.

The MIP2C4 integrated circuit is widely used in various power supply applications. It is commonly found in AC-DC adapters for consumer electronics, including chargers for mobile phones, power supplies for laptops, and set-top boxes. Its high level of integration and comprehensive protection features make it an ideal choice for these applications. The MIP2C4 is also employed in auxiliary power supplies for industrial equipment, providing a stable and reliable power source for control circuits and other low-power components. Additionally, it is utilized in standby power supplies for appliances, minimizing energy consumption when the appliance is not in active use. The DIP-7 package allows for straightforward replacement of older power supply ICs, making it a cost-effective solution for upgrading existing systems and improving their efficiency.

When selecting a power management IC for your specific application, consider the MIP2C4 for its high level of integration, built-in protection mechanisms, and ease of implementation. Ensure that the IC's voltage, current, and power ratings align with the requirements of your circuit. Proper layout techniques are crucial for minimizing EMI and ensuring stable operation. Consider incorporating a snubber circuit to mitigate voltage spikes and enhance overall efficiency. Always refer to the datasheet for detailed specifications and application guidelines to ensure correct implementation. Pay close attention to the thermal management of the IC, as overheating can compromise performance and reliability, potentially leading to premature failure.

In conclusion, the MIP2C4 integrated circuit is a versatile and economical solution for simplifying power supply designs. Its high level of integration, comprehensive protection features, and ease of use make it an excellent choice for a wide array of applications, ranging from AC-DC adapters to auxiliary power supplies. Reduce your component count, improve efficiency, and ensure dependable operation with the MIP2C4. Add the MIP2C4 to your cart today and experience the benefits of a highly integrated power management solution. Don't miss out on this essential component for your next power supply project, designed to deliver performance and reliability!
