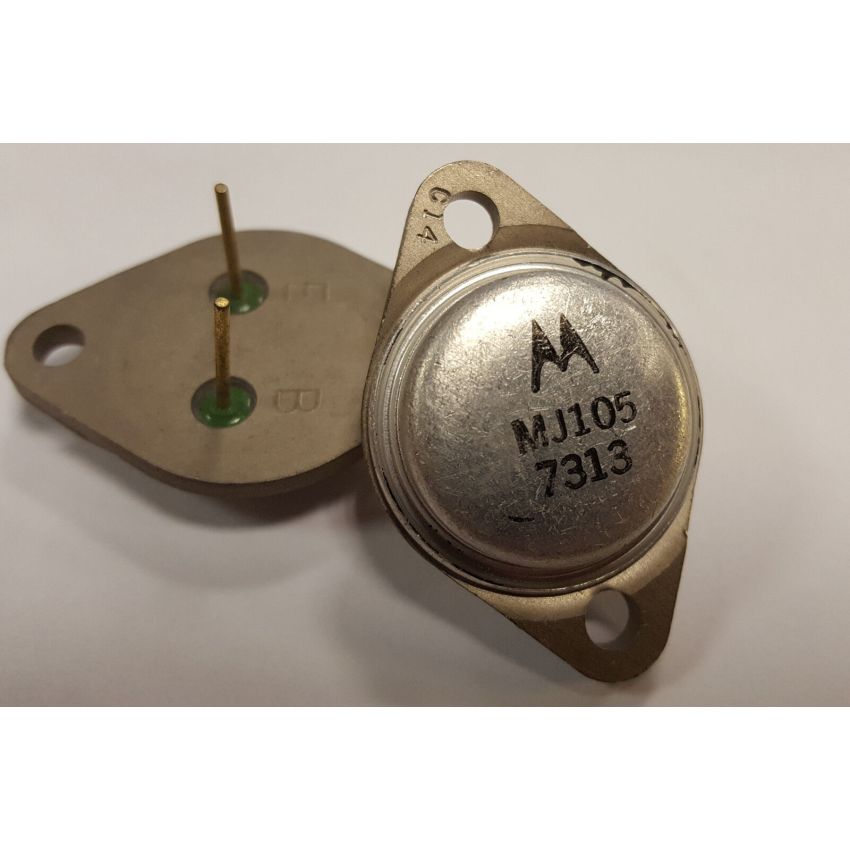

Motorola MJ105 NPN Power Transistor, TO-3 Package (2-Pack)

FAQs for Products

1. What are the primary thermal management considerations when installing the Motorola MJ105 NPN Power Transistor in high-current power supplies?

   The Motorola MJ105 NPN Power Transistor is housed in a rugged TO-3 metal can package, which is specifically designed for superior heat dissipation in demanding environments. When integrating this transistor into high-current power supplies or linear regulators, it is crucial to use a high-quality heatsink with a low thermal resistance. Because the case of the Motorola MJ105 NPN Power Transistor serves as the collector terminal, you must use a mica or silicone insulator pad along with plastic shoulder washers if the heatsink is grounded to the chassis. We recommend applying a thin, even layer of zinc-oxide thermal grease to both sides of the insulator to minimize interface thermal resistance. For long-term reliability in industrial applications, the junction temperature should be kept well below the maximum rating. Given that this is a 2-pack, ensuring both transistors are mounted to a common thermal mass can help maintain consistent operating temperatures, which is especially important if they are used in parallel configurations to share a heavy current load.

2. Is the Motorola MJ105 NPN Power Transistor suitable for vintage audio amplifier restoration and push-pull output stages?

   Yes, the Motorola MJ105 NPN Power Transistor is an excellent choice for restoring vintage high-fidelity audio equipment that requires robust TO-3 NPN power devices. Motorola transistors from this era are highly regarded by audiophiles and technicians for their build quality and predictable gain characteristics. In push-pull output stages, the Motorola MJ105 NPN Power Transistor provides the necessary current handling to drive low-impedance speaker loads with minimal distortion. This 2-pack is particularly useful for stereo repairs or for replacing a failed output pair in a single channel. While modern equivalents exist, using the original Motorola MJ105 NPN Power Transistor ensures that the circuit maintains its original design parameters, including the specific frequency response and damping factor intended by the manufacturer. When replacing transistors in older amplifiers, always check the bias current and DC offset after installation to ensure the Motorola MJ105 NPN Power Transistor is operating within its linear region for optimal acoustic performance.

3. How does the collector current (IC) and voltage (VCEO) rating of the Motorola MJ105 NPN Power Transistor affect its performance in motor control circuits?

   The Motorola MJ105 NPN Power Transistor is engineered to handle significant voltage and current levels, making it a staple for DC motor speed controllers and solenoid drivers. Its high collector current capability allows it to manage the high inrush currents typically associated with starting inductive loads. When designing with the Motorola MJ105 NPN Power Transistor, engineers must account for the VCEO rating to ensure the device can withstand the supply voltage plus any back-EMF generated by the motor during PWM switching. The TO-3 package's ability to handle high peak power dissipation is a major advantage here, as it prevents thermal runaway during rapid switching cycles. By using the Motorola MJ105 NPN Power Transistor, you gain a high safety margin compared to smaller plastic-packaged transistors. It is also advisable to use a flyback diode in parallel with the inductive load to protect the Motorola MJ105 NPN Power Transistor from voltage spikes that could exceed its breakdown voltage during the 'off' state of the switching cycle.

4. What are the benefits of the TO-3 metal package used in the Motorola MJ105 NPN Power Transistor compared to modern TO-247 or TO-220 alternatives?

   The TO-3 package of the Motorola MJ105 NPN Power Transistor offers several distinct advantages for high-power applications that modern plastic packages often struggle to match. Firstly, the hermetic seal of the metal can provides superior protection against moisture and atmospheric contaminants, ensuring a longer operational lifespan in harsh industrial or outdoor environments. Secondly, the large surface area of the TO-3 base plate allows for much lower junction-to-case thermal resistance, which means the Motorola MJ105 NPN Power Transistor can dissipate more power for a given temperature rise. In legacy systems designed specifically for TO-3 footprints, the Motorola MJ105 NPN Power Transistor provides a direct mechanical fit, eliminating the need for awkward mounting brackets or PCB modifications. Furthermore, the physical robustness of the metal housing makes the Motorola MJ105 NPN Power Transistor more resistant to mechanical stress and vibration, which is a critical factor in automotive or heavy machinery electronics where reliability is paramount.

5. Can the Motorola MJ105 NPN Power Transistor be used in switching regulator applications that require high efficiency?

   The Motorola MJ105 NPN Power Transistor is highly effective in switching regulator designs, particularly those operating at lower frequencies where its saturation characteristics are most beneficial. With a low collector-emitter saturation voltage (VCE(sat)), the Motorola MJ105 NPN Power Transistor minimizes conduction losses, which directly translates to higher efficiency and reduced heat generation during the 'on' phase of the duty cycle. This makes the Motorola MJ105 NPN Power Transistor an ideal component for high-power DC-DC converters and battery-operated equipment where energy conservation is important. However, designers should pay close attention to the base drive requirements; providing sufficient base current is essential to ensure the Motorola MJ105 NPN Power Transistor enters full saturation quickly. Utilizing the 2-pack allows for the implementation of redundant switching paths or interleaved regulator designs, which can further enhance system reliability and distribute the thermal load across multiple Motorola MJ105 NPN Power Transistor units for better heat management.

6. What specific mounting hardware and insulation techniques are required for the Motorola MJ105 NPN Power Transistor?

   Proper installation of the Motorola MJ105 NPN Power Transistor requires specific hardware to ensure both electrical isolation and thermal efficiency. Since the TO-3 metal case is electrically connected to the collector, it must be isolated from the heatsink if the heatsink is part of the chassis ground. You will need a TO-3 mounting kit, which typically includes a mica or Kapton insulator and two plastic shoulder bushings to prevent the mounting screws from shorting the collector to the heatsink. When installing the Motorola MJ105 NPN Power Transistor, it is vital to apply a high-quality thermal compound to bridge the microscopic air gaps between the transistor, the insulator, and the heatsink. Tighten the mounting screws evenly to ensure uniform pressure across the base of the Motorola MJ105 NPN Power Transistor, but avoid over-tightening, which could warp the base plate or crack the insulator. Using original Motorola MJ105 NPN Power Transistor components ensures compatibility with standard TO-3 sockets, facilitating easy replacement in modular electronic systems.

7. Does the Motorola MJ105 NPN Power Transistor have a Safe Operating Area (SOA) suitable for driving high-wattage incandescent or halogen lamps?

   The Motorola MJ105 NPN Power Transistor features a robust Safe Operating Area (SOA), which is a critical specification when driving resistive loads like high-wattage lamps that exhibit very low cold resistance. When a lamp is first turned on, the inrush current can be several times higher than the steady-state operating current. The Motorola MJ105 NPN Power Transistor is designed to handle these momentary surges without crossing the second breakdown limit, provided that the pulse duration stays within the datasheet's specified SOA curves. This makes the Motorola MJ105 NPN Power Transistor an excellent choice for theater lighting dimmers, automotive headlamp controllers, and industrial signaling equipment. Because this product comes as a 2-pack, you can easily implement a dual-channel driver or use them in parallel to increase the total current capacity for exceptionally large lighting arrays. Motorola’s conservative engineering standards mean that the Motorola MJ105 NPN Power Transistor provides a dependable solution for applications where unexpected current spikes are a common occurrence.
