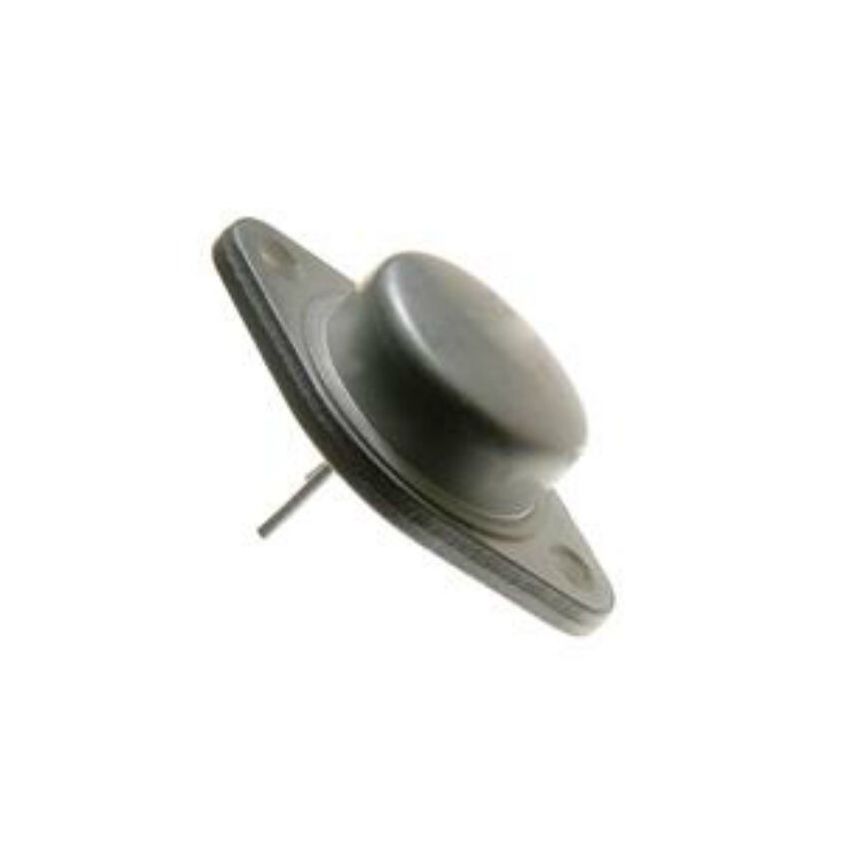

MJ15024 + MJ15025 TRANSISTOR TO-3 (PAIR)

The MJ15024 and MJ15025 transistors are a complementary pair (NPN and PNP respectively) of high-power silicon bipolar junction transistors (BJTs) housed in the rugged TO-3 package. These transistors are designed for high-power audio amplifier applications and other linear power applications where high current and voltage handling capabilities are required. The TO-3 package provides excellent thermal conductivity, allowing for efficient heat dissipation and reliable operation even under demanding conditions. The MJ15024 (NPN) and MJ15025 (PNP) form a complementary pair, meaning they have similar electrical characteristics but opposite polarities. This makes them ideal for push-pull amplifier configurations, where one transistor conducts during the positive half-cycle of the signal and the other conducts during the negative half-cycle. These transistors are known for their high collector current (Ic) rating, high power dissipation (Pd), and high breakdown voltage (Vceo), making them capable of delivering significant power to a load.

The high ft (transition frequency) ensures good high-frequency performance, while the low saturation voltage (Vce(sat)) minimizes power dissipation. Audio amplifier designers frequently utilize this pair because their robust characteristics contribute to excellent linearity and low distortion. The MJ15024 and MJ15025 can also be used in power supplies, motor control circuits, and other high-power switching applications. Using a matched pair ensures symmetrical performance, reduces harmonic distortion, and enhances overall amplifier stability. Each transistor is designed for optimal performance, delivering exceptional audio fidelity and reliability. The TO-3 package allows for secure mounting and efficient heat sinking, which is crucial for maintaining stable operation at high power levels.

The MJ15024 and MJ15025 transistors offer a compelling combination of power handling capability, ruggedness, and audio performance. Upgrade your audio amplifiers with a component engineered for superior sound quality. Invest in a solution that delivers power and stability. Add the MJ15024 + MJ15025 transistor pair to your cart today and experience the difference in your audio designs!
