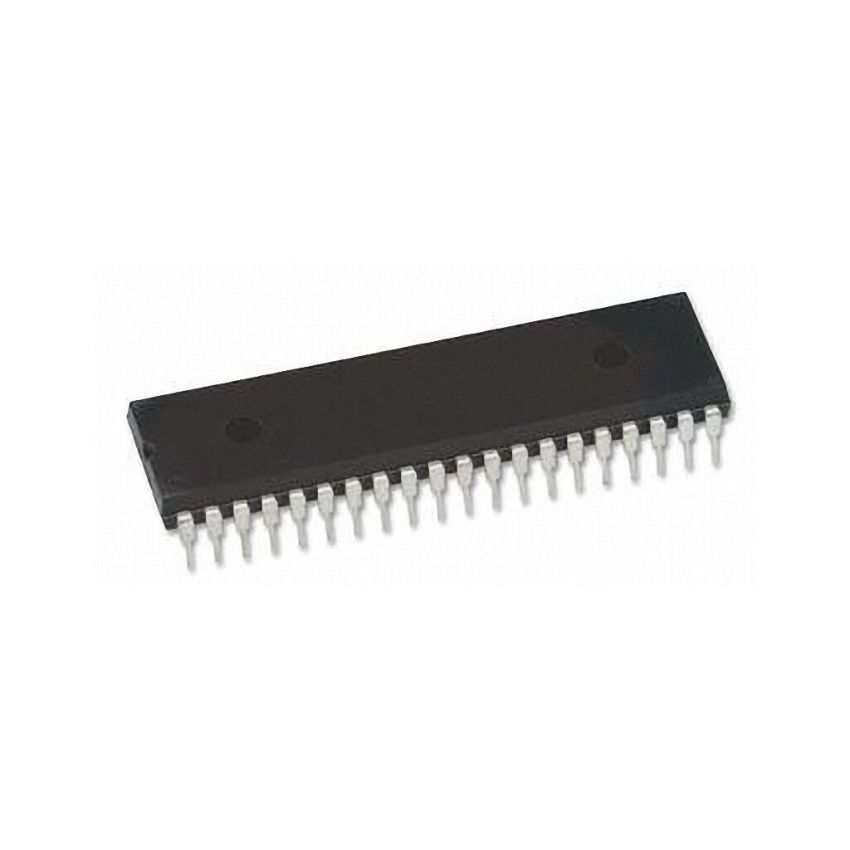

MM5316N DIGITAL ALARM CLOCK INTEGRATED CIRCUIT DIP-40

The MM5316N is a monolithic integrated circuit designed specifically for use in digital alarm clocks. Housed in a 40-pin Dual In-Line Package (DIP-40), this IC provides all the necessary functions to implement a fully functional digital clock with alarm capabilities. The MM5316N simplifies the design process by integrating the oscillator, counter, decoder, and display drivers into a single chip. This reduces the component count and board space required, making it an ideal choice for clock manufacturers and hobbyists alike. The DIP-40 package allows for easy prototyping and experimentation.

The MM5316N features a built-in oscillator that requires an external crystal to establish the clock frequency. It includes counters to track seconds, minutes, and hours, as well as a decoder to convert the binary count values into a format suitable for driving seven-segment LED displays. The alarm function allows the user to set a desired alarm time, and the IC provides an output signal when the current time matches the alarm time. The snooze function provides a short delay before the alarm sounds again. The integrated display drivers simplify the interface to LED displays.

The MM5316N is commonly used in digital alarm clocks, timers, and other timekeeping devices. Its integrated design reduces the complexity of the circuit and simplifies the manufacturing process. The alarm function provides a convenient way to wake up or remind users of important events. The snooze function allows for a few extra minutes of sleep. The seven-segment display drivers enable clear and easy-to-read time displays. The MM5316N is a cost-effective solution for implementing digital clocks.

When working with the MM5316N, it is important to follow proper handling procedures for CMOS devices. This includes using anti-static precautions to prevent damage from electrostatic discharge (ESD). Ensure that the power supply voltage is within the specified range to avoid damaging the IC. Consult the datasheet for detailed information on pin configurations, electrical characteristics, and recommended operating conditions. Proper grounding is essential for stable operation. The MM5316N is a specialized IC for clock applications.

Whether you're building a digital alarm clock, a timer, or another timekeeping device, the MM5316N provides the functionality and integration you need. Its built-in oscillator, counters, decoder, and display drivers simplify the design process and reduce the component count. Don't miss out on this opportunity to enhance your electronics projects with this specialized IC. Order your MM5316N digital alarm clock integrated circuit today and unlock the potential of your timekeeping designs. Start building your project now!
