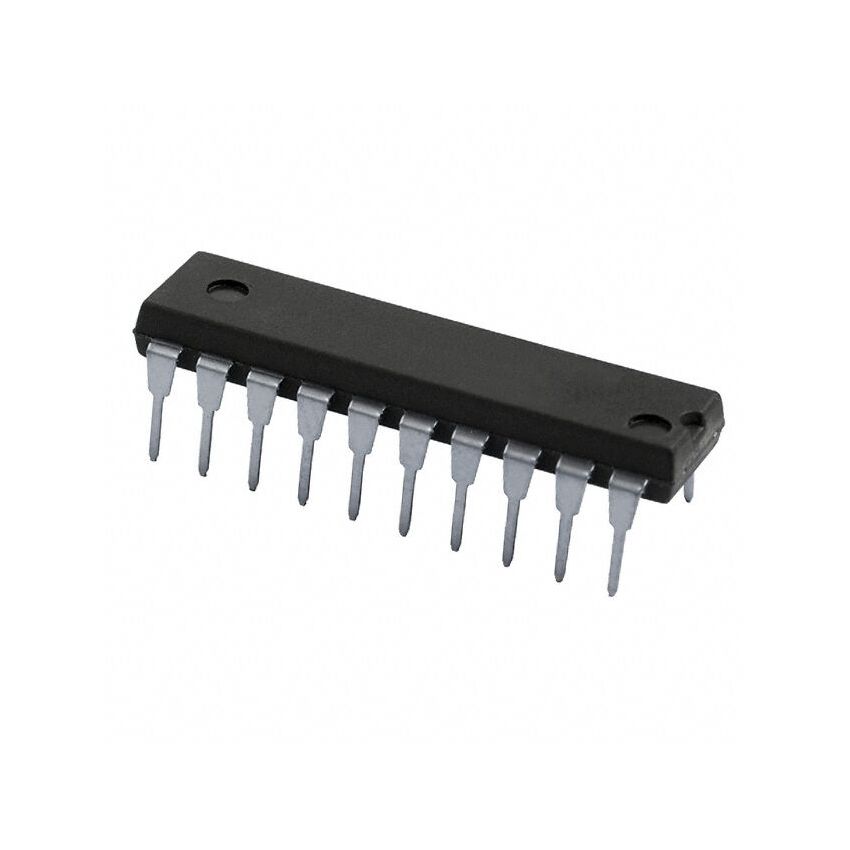

MM74C923N INTEGRATED CIRCUIT DIP-20

The MM74C923N is a monolithic CMOS integrated circuit featuring a 4-digit multiplexed 7-segment LED display driver. Encased in a 20-pin DIP (Dual In-line Package), this IC simplifies the interface between digital logic and 7-segment displays, making it ideal for applications requiring numerical or alphanumeric readouts. Commonly used in digital clocks, counters, and instrumentation panels, the MM74C923N reduces component count and simplifies circuit design, leading to more compact and cost-effective solutions. Its CMOS technology ensures low power consumption and high noise immunity, making it suitable for a variety of environments. Key features of the MM74C923N include direct drive capability for common cathode 7-segment LED displays, multiplexed output for reduced pin count, and a built-in BCD-to-7 segment decoder. The internal decoder converts binary coded decimal (BCD) data into the appropriate signals to drive the 7-segment display, eliminating the need for external decoding logic.

The multiplexed output reduces the number of pins required to drive multiple digits, simplifying the wiring and board layout. Applications of the MM74C923N integrated circuit include digital clocks, counters, frequency meters, panel meters, and digital displays. Its ease of use and minimal external component requirements make it suitable for hobbyist projects and professional designs alike. The IC's CMOS technology ensures compatibility with a wide range of power supply voltages and digital logic levels. When incorporating the MM74C923N into your display system, consider the LED current limiting resistors, power supply voltage, and display brightness to optimize performance and prevent damage to the LEDs. Proper decoupling capacitors should be used to minimize noise and ensure stable operation.

Datasheets and application notes provide detailed specifications and guidelines for proper implementation. Looking for a simple and efficient solution for driving 7-segment LED displays. The MM74C923N in the DIP-20 package is the perfect choice. With its built-in decoder and multiplexed output, this integrated circuit simplifies display interfacing and reduces component count. Enhance your digital displays with the MM74C923N and experience the difference in simplicity and efficiency. Don't wait, order your MM74C923N integrated circuits today and streamline your display projects!
