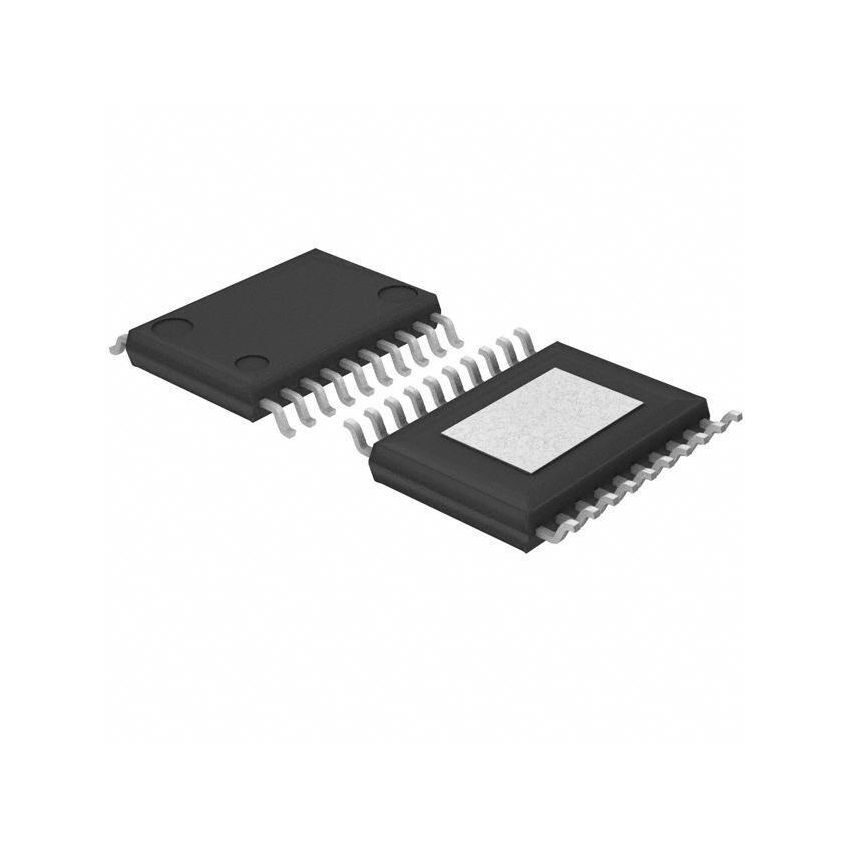

MP7782DF-LF-Z IC AUDIO AMP CLASS D 20TSSOPF

The MP7782DF-LF-Z is a high-efficiency Class D audio amplifier integrated circuit (IC) designed for portable audio devices, multimedia systems, and other applications requiring high-quality audio output with minimal power consumption. Housed in a compact 20-TSSOPF package, this amplifier delivers exceptional audio performance while occupying minimal board space. Its advanced modulation scheme and low on-resistance MOSFETs contribute to high efficiency, reducing heat dissipation and extending battery life. The MP7782DF-LF-Z is a versatile and energy-efficient solution for a wide range of audio amplification needs.

Key features of the MP7782DF-LF-Z include a wide supply voltage range of 2.5V to 5.5V, a high output power of up to 3W into a 4Ω load, and a low total harmonic distortion plus noise (THD+N) of typically 0.1%. The Class D architecture ensures high efficiency, typically exceeding 90%, which minimizes power consumption and extends battery life. The 20-TSSOPF package is compact and easy to solder, simplifying board layout and assembly. Furthermore, the amplifier includes built-in protection features such as over-current protection, over-temperature protection, and under-voltage lockout, ensuring reliable operation under various conditions.

The MP7782DF-LF-Z Class D audio amplifier offers several benefits to electronic circuit designers. Its high efficiency minimizes power consumption, extending battery life in portable devices. The compact 20-TSSOPF package saves valuable board space, allowing for smaller and more compact designs. The low THD+N ensures high-quality audio output with minimal distortion. The built-in protection features enhance reliability and prevent damage to the amplifier and other components. The wide supply voltage range provides flexibility in power supply design. The MP7782DF-LF-Z is a cost-effective solution for high-performance audio amplification.

Typical applications for the MP7782DF-LF-Z include portable audio players, smartphones, tablets, laptops, and multimedia speakers. In portable audio players, it provides high-quality audio output with minimal power consumption, extending battery life. In smartphones and tablets, it enhances the audio experience for music playback, video streaming, and gaming. In laptops, it improves the audio quality for multimedia presentations and video conferencing. In multimedia speakers, it delivers clear and powerful sound. Its versatility and energy efficiency make it a popular choice among electronic engineers and product designers.

Elevate your audio experience with the MP7782DF-LF-Z Class D audio amplifier. Its high efficiency, compact size, and exceptional audio performance make it the perfect choice for your next audio project. Don't compromise on sound quality or battery life. Invest in the MP7782DF-LF-Z today and enjoy crystal-clear audio with minimal power consumption. Order now and bring your audio projects to life!
