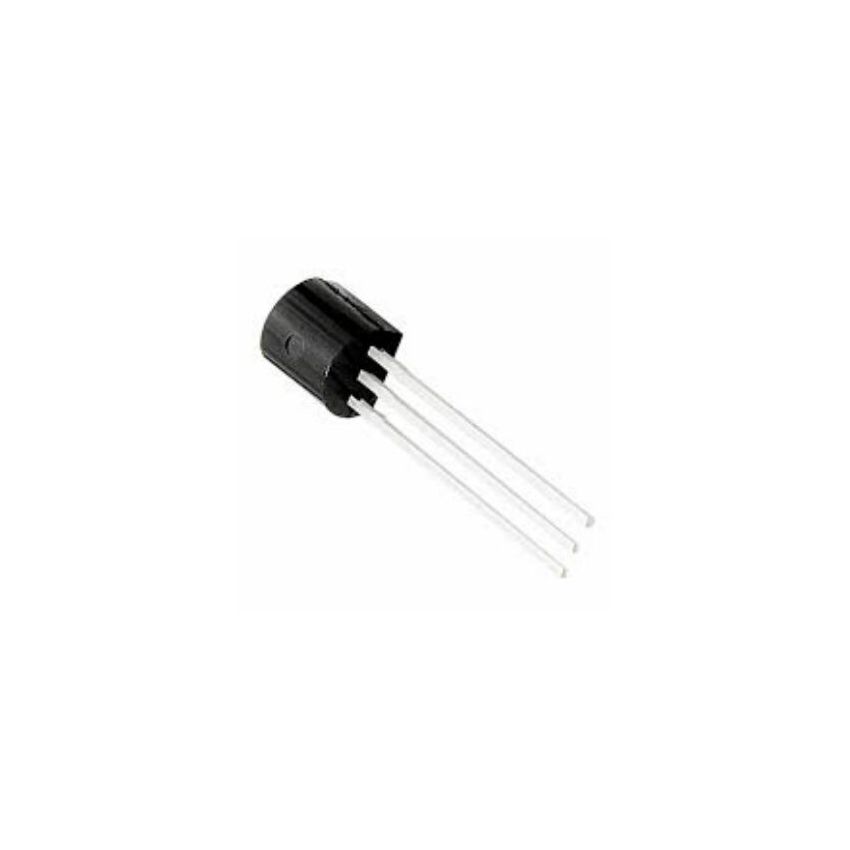

MPS6523 TRANSISTOR TO-92

The MPS6523 is a versatile NPN bipolar junction transistor (BJT) housed in the ubiquitous TO-92 package. This transistor is designed for general-purpose amplification and switching applications, making it a staple component in a wide array of electronic circuits. Its compact size and ease of use render it ideal for both prototyping and mass production. The MPS6523 offers a reliable solution for signal amplification, voltage regulation, and switching functions in diverse electronic projects. Its robust construction ensures consistent performance and longevity, making it a preferred choice among electronics enthusiasts and professionals alike.

Key specifications of the MPS6523 include a collector-emitter voltage (VCEO) of 30V, a collector current (IC) of 500mA, and a power dissipation of 625mW. These parameters make it suitable for low to medium power applications. The transistor's high gain (hFE), typically ranging from 40 to 400, allows for efficient amplification of weak signals. Its fast switching speed further enhances its utility in high-frequency circuits. The TO-92 package facilitates easy mounting on printed circuit boards (PCBs), contributing to streamlined assembly processes. The MPS6523 is a cost-effective and reliable component for various electronic designs.

The MPS6523 finds application in numerous circuits, including audio amplifiers, signal processing circuits, and switching regulators. In audio amplifiers, it can be used in preamplifier stages to boost weak audio signals. In signal processing, it can perform tasks such as signal inversion and filtering. As a switching element, it can control the flow of current in circuits, enabling functions like turning LEDs on and off or activating relays. Its versatility extends to use in oscillator circuits, timer circuits, and simple logic gates. The MPS6523's broad applicability makes it an indispensable component in any electronics toolkit.

When using the MPS6523, it's crucial to adhere to its maximum ratings to prevent damage. Ensure that the collector-emitter voltage, collector current, and power dissipation remain within the specified limits. Proper biasing is essential for optimal performance and stability. A well-designed biasing network ensures that the transistor operates in its active region, providing linear amplification. Heat sinking may be necessary in applications where the transistor dissipates significant power. Always consult the datasheet for detailed information on device characteristics and application guidelines. The MPS6523 is a dependable and efficient transistor when used correctly.

In summary, the MPS6523 transistor in the TO-92 package is a highly versatile and reliable component suitable for a wide range of electronic applications. Its key features include a high gain, fast switching speed, and ease of use. Whether you're building audio amplifiers, signal processing circuits, or switching regulators, the MPS6523 offers a cost-effective and efficient solution. Add this essential component to your inventory today and unlock its potential in your next electronic project. Order now and experience the performance and reliability of the MPS6523!
