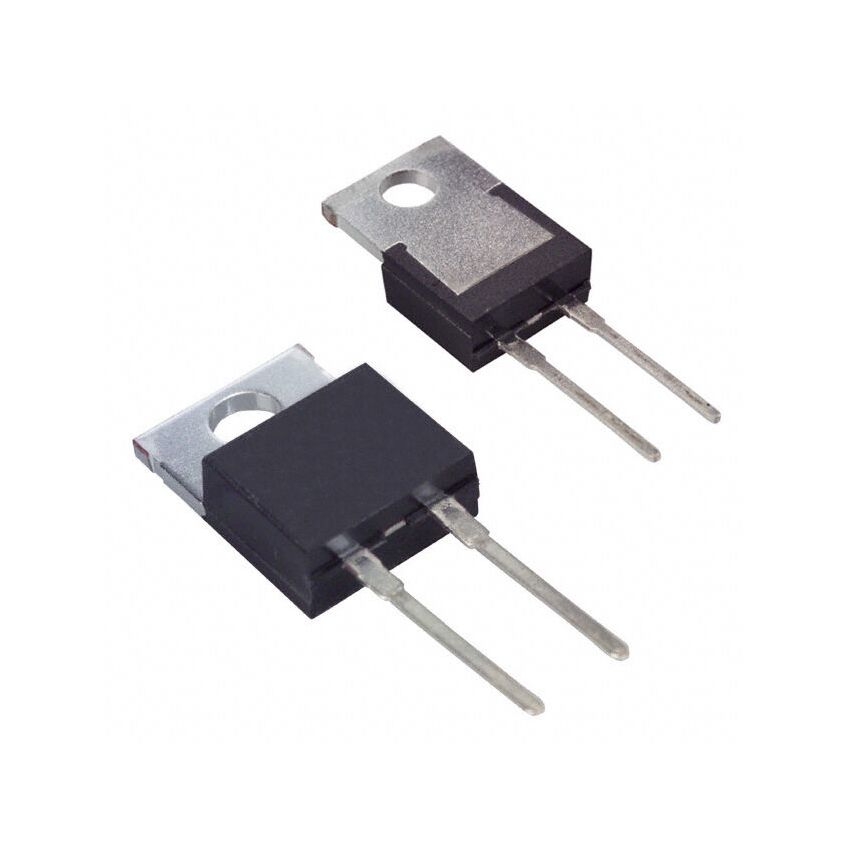

MUR1520G SOFT RECOVERY DIODE | Buy MUR1520G SOFT RECOVERY DIODE Online

The MUR1520G is a high-performance, glass-passivated soft recovery diode, meticulously engineered for applications demanding rapid switching speeds and minimal reverse recovery losses. This diode excels in reducing electromagnetic interference (EMI) and voltage overshoot, making it an ideal component for power supplies, inverters, and other high-frequency circuits. Its soft recovery characteristic ensures a seamless transition from forward conduction to reverse blocking, thereby reducing stress on other circuit elements and enhancing overall system reliability. The MUR1520G is designed for optimal performance and longevity, ensuring consistent operation in demanding environments.

Key features of the MUR1520G include a reverse voltage (VR) of 200V and a forward current (IF) of 15A, making it suitable for applications requiring moderate voltage and current handling. The fast recovery time (trr) minimizes switching losses, contributing to improved system efficiency and reduced heat generation. The soft recovery characteristic effectively reduces EMI and voltage overshoot, enhancing the overall performance and reliability of the circuit. The glass-passivated junction ensures high reliability and stable performance over a wide range of operating temperatures. The device is designed for ease of integration, with a standard DO-201AD package that simplifies incorporation into both new and existing designs.

The MUR1520G diode finds extensive applications across various sectors, including power factor correction (PFC) circuits, freewheeling diodes in motor control systems, and output rectifiers in switching power supplies. In PFC circuits, it helps to improve the power factor and reduce harmonic distortion, ensuring efficient and stable power delivery. As a freewheeling diode, it protects switching transistors from voltage spikes and ensures smooth operation of the motor. In switching power supplies, it rectifies the output voltage, providing a stable and regulated DC voltage. Furthermore, its robust design and reliable performance make it a preferred choice for automotive applications, such as alternator rectifiers and electronic control units.

When selecting the MUR1520G, carefully consider its key specifications and application requirements to ensure optimal performance. Verify that the voltage and current ratings are adequate for the intended application, and pay close attention to the recovery time to minimize switching losses. The DO-201AD package should be properly heatsinked to maintain the diode's operating temperature within specified limits. Proper circuit design is also essential to ensure optimal performance and reliability. By meticulously considering these factors, you can maximize the performance and reliability of the MUR1520G in your application. Its combination of high performance, soft recovery characteristics, and ease of use makes it a versatile choice for a wide range of power electronic applications.

Upgrade your power electronics designs with the MUR1520G soft recovery diode. Experience superior efficiency, reduced EMI, and unwavering reliability in demanding applications. Don't settle for less – choose the MUR1520G for your power supplies, inverters, and motor control systems. Order yours online today and revolutionize your designs!
