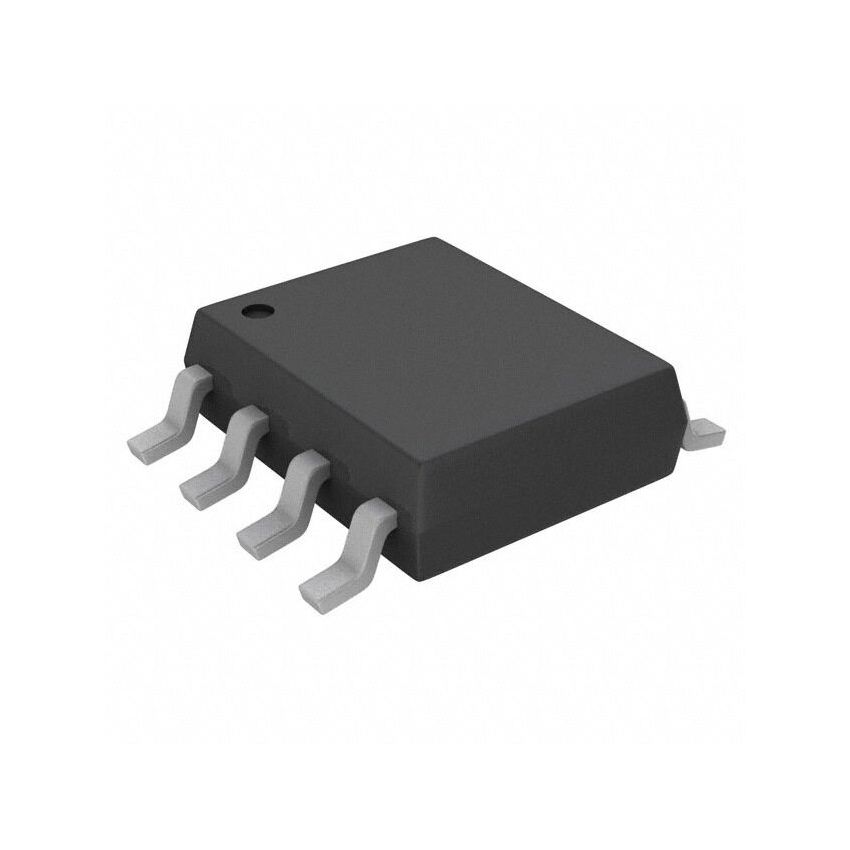

JRC NJM2114M High Performance Low Noise Dual Op-Amp (SOP-8)

FAQs for Products

1. How does the JRC NJM2114M High Performance Low Noise Dual Op-Amp (SOP-8) compare to the industry-standard NE5532 in high-end audio applications?

   The JRC NJM2114M High Performance Low Noise Dual Op-Amp (SOP-8) is often considered a significant evolutionary step up from the classic NE5532. While they share a similar pinout, the JRC NJM2114M offers superior technical specifications that directly impact audio fidelity. Specifically, it features a much higher slew rate of 15V/µs compared to the 9V/µs typically found in the NE5532. This higher speed allows the JRC NJM2114M to track complex audio waveforms and fast transients with significantly less dynamic distortion. Additionally, the gain-bandwidth product is improved to 13MHz, providing better loop gain at high frequencies for lower total harmonic distortion (THD). Perhaps most importantly for sensitive audio stages, the JRC NJM2114M boasts a lower equivalent input noise voltage of approximately 0.9nV/√Hz at 1kHz. For professional audio engineers, these improvements mean the JRC NJM2114M provides a more transparent, detailed soundstage with a lower noise floor, making it an ideal drop-in upgrade for existing NE5532-based designs in preamplifiers, mixers, and DAC output stages.

2. What are the power supply requirements and stability considerations for the JRC NJM2114M High Performance Low Noise Dual Op-Amp (SOP-8)?

   The JRC NJM2114M High Performance Low Noise Dual Op-Amp (SOP-8) is designed for versatile power configurations, supporting a wide operating voltage range from ±3V to ±22V. This high maximum rail voltage provides significant headroom for professional audio signals, preventing clipping in high-output scenarios. However, to maintain the high performance of the JRC NJM2114M, proper power supply decoupling is essential. Because of its high slew rate and wide bandwidth, the device can be sensitive to power supply noise or parasitic oscillations if not bypassed correctly. It is highly recommended to place 0.1µF ceramic capacitors as close as possible to the V+ and V- pins (pins 8 and 4) relative to a solid ground plane. In high-precision instrumentation or low-noise audio circuits, adding a larger 10µF tantalum or electrolytic capacitor in parallel with the ceramic bypass can further stabilize the rails. The JRC NJM2114M is internally compensated for unity-gain stability, but designers should still pay close attention to PCB layout and minimize trace lengths to the inverting inputs to prevent phase margin degradation.

3. Can the JRC NJM2114M High Performance Low Noise Dual Op-Amp (SOP-8) drive low-impedance loads like headphones directly?

   The JRC NJM2114M High Performance Low Noise Dual Op-Amp (SOP-8) is remarkably robust when it comes to output drive capability. It is specifically characterized to drive loads as low as 600 ohms with a high output voltage swing, making it exceptionally well-suited for line-level drivers and professional audio interfaces. While it can technically drive higher-impedance headphones (such as 150-600 ohm models) directly, it is not primarily designed as a high-current power op-amp for low-impedance (32 ohm) loads. For 32-ohm headphones, the JRC NJM2114M is best utilized as a voltage gain stage or a buffer driving a dedicated high-current output transistor pair. However, in many high-fidelity preamplifier designs, the JRC NJM2114M is used in a 'parallel' configuration or with a small series resistor to successfully drive a wide range of monitoring equipment. Its low output impedance ensures that the JRC NJM2114M maintains excellent control over the connected load, minimizing frequency response deviations caused by reactive impedance curves often found in professional audio gear.

4. What makes the JRC NJM2114M High Performance Low Noise Dual Op-Amp (SOP-8) suitable for precision instrumentation and active filters?

   Beyond audio, the JRC NJM2114M High Performance Low Noise Dual Op-Amp (SOP-8) is an excellent choice for precision instrumentation due to its impressive DC characteristics. It features a low input offset voltage, typically around 0.2mV, and a low input bias current of 500nA. These specs are critical for DC-coupled circuits where offset errors can multiply through gain stages, leading to significant output inaccuracies. In the context of active filters, the JRC NJM2114M provides the high open-loop gain and wide bandwidth necessary to maintain filter accuracy into the upper kilohertz range. Whether you are designing a Sallen-Key low-pass filter or a complex state-variable filter, the JRC NJM2114M ensures that the filter's Q-factor and cutoff frequency remain stable and predictable. Its low noise floor is also beneficial in instrumentation amplifiers where small sensor signals must be amplified without adding significant background hiss. The SOP-8 package of the JRC NJM2114M further assists in these applications by allowing for a compact PCB footprint, reducing the loop area for electromagnetic interference (EMI) pickup.

5. What are the thermal management and soldering best practices for the JRC NJM2114M High Performance Low Noise Dual Op-Amp (SOP-8)?

   The JRC NJM2114M High Performance Low Noise Dual Op-Amp (SOP-8) is housed in a Small Outline Package (SOP-8), which is designed for efficient surface-mount assembly. While the device is highly efficient, thermal management should be considered when operating at the maximum supply voltage of ±22V with heavy loads. The SOP-8 package typically has a power dissipation rating of around 300mW to 500mW depending on the PCB copper area. To ensure long-term reliability of the JRC NJM2114M, it is advisable to provide adequate copper pours connected to the ground traces to act as a heatsink. Regarding soldering, the JRC NJM2114M is compatible with standard lead-free reflow profiles. If hand-soldering for prototyping, use a temperature-controlled iron set to approximately 350°C and avoid prolonged contact with the leads to prevent internal thermal stress. Using a high-quality flux will ensure clean solder joints, which is particularly important for the JRC NJM2114M to maintain high-impedance paths at the input pins and prevent leakage currents that could degrade the ultra-low noise performance.

6. How does the input stage of the JRC NJM2114M High Performance Low Noise Dual Op-Amp (SOP-8) handle high-impedance signal sources?

   The JRC NJM2114M High Performance Low Noise Dual Op-Amp (SOP-8) utilizes a bipolar input stage, which is the primary reason for its exceptionally low voltage noise. Bipolar inputs generally offer lower voltage noise than FET inputs but have higher input bias currents. When interfacing the JRC NJM2114M with high-impedance sources (above 10k-20k ohms), designers must be mindful of the noise current, which can react with the source impedance to create additional voltage noise. However, for most professional audio applications like low-impedance microphone preamps or moving-magnet phono stages, the JRC NJM2114M is perfectly optimized. To get the best performance from the JRC NJM2114M with higher source impedances, it is critical to balance the impedances seen by both the inverting and non-inverting inputs. This balancing cancels out the effects of the input bias current, minimizing DC offset at the output. For very high impedance sensors (like piezo elements), a FET-input op-amp might be used as a buffer, followed by the JRC NJM2114M to handle the primary voltage gain and output drive.

7. Is the JRC NJM2114M High Performance Low Noise Dual Op-Amp (SOP-8) a suitable choice for modern 24-bit/192kHz DAC output stages?

   Absolutely, the JRC NJM2114M High Performance Low Noise Dual Op-Amp (SOP-8) is a premier choice for the I/V (current-to-voltage) conversion and low-pass filtering stages of modern high-resolution DACs. In 24-bit audio systems, the dynamic range can exceed 120dB, meaning the noise floor of the op-amp is a critical bottleneck. The ultra-low 0.9nV/√Hz noise of the JRC NJM2114M ensures that the DAC's signal-to-noise ratio (SNR) is not compromised. Furthermore, the 15V/µs slew rate is vital for the I/V stage, where the op-amp must respond to the extremely fast current steps from the DAC modulator without inducing slew-induced distortion. The JRC NJM2114M also exhibits excellent linearity across the entire audio spectrum, which is necessary to preserve the low Total Harmonic Distortion + Noise (THD+N) figures expected in high-fidelity 192kHz playback. Many audiophile-grade equipment manufacturers select the JRC NJM2114M specifically for its balance of high-speed performance and musicality, as it avoids the 'sterile' sound sometimes associated with ultra-wideband video op-amps while providing much better precision than general-purpose components.
