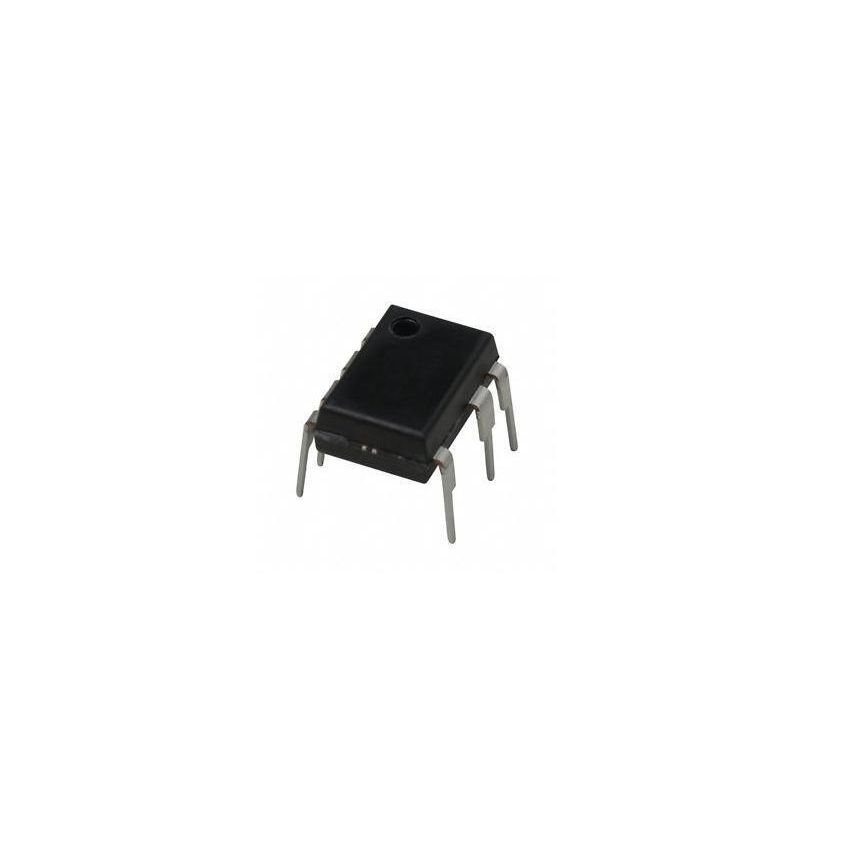

P1015AP10 INTEGRATED CIRCUIT DIP-7 NCP1015

The P1015AP10 Integrated Circuit, also known as the NCP1015, is a highly efficient and compact power management solution housed in a DIP-7 package. This IC is designed for offline switch-mode power supplies (SMPS), providing a cost-effective and reliable solution for converting AC voltage to DC voltage. Its integrated design minimizes the need for external components, simplifying circuit design and reducing overall system cost. The DIP-7 package allows for easy integration into existing circuit boards and prototyping setups. At its core, the P1015AP10/NCP1015 incorporates a fixed-frequency current-mode controller and a high-voltage power MOSFET. This combination enables efficient power conversion with minimal energy loss.

The IC also features built-in protection mechanisms, such as overvoltage protection (OVP), overcurrent protection (OCP), and thermal shutdown protection, ensuring safe and reliable operation. Key features of the P1015AP10/NCP1015 include its high efficiency, low standby power consumption, and integrated protection features. The high efficiency minimizes energy waste and reduces heat generation. The low standby power consumption helps to meet stringent energy efficiency standards. The integrated protection features safeguard the IC and connected components from damage. Applications for the P1015AP10/NCP1015 are diverse.

It can be used in AC-DC adapters for mobile devices, chargers for power tools, and auxiliary power supplies for appliances. Its compact size and high efficiency make it suitable for space-constrained applications. When selecting a power management IC, consider the input voltage range, output voltage, output current, and efficiency. The P1015AP10/NCP1015 offers a balanced combination of these parameters, making it a versatile choice for many power supply applications. Its integrated design and protection features further enhance its appeal. Whether you're designing an AC-DC adapter, a charger, or an auxiliary power supply, the P1015AP10/NCP1015 provides a dependable and efficient power management solution.

Streamline your power supply design with the P1015AP10 Integrated Circuit. Order yours today and experience the benefits of integrated power management.
