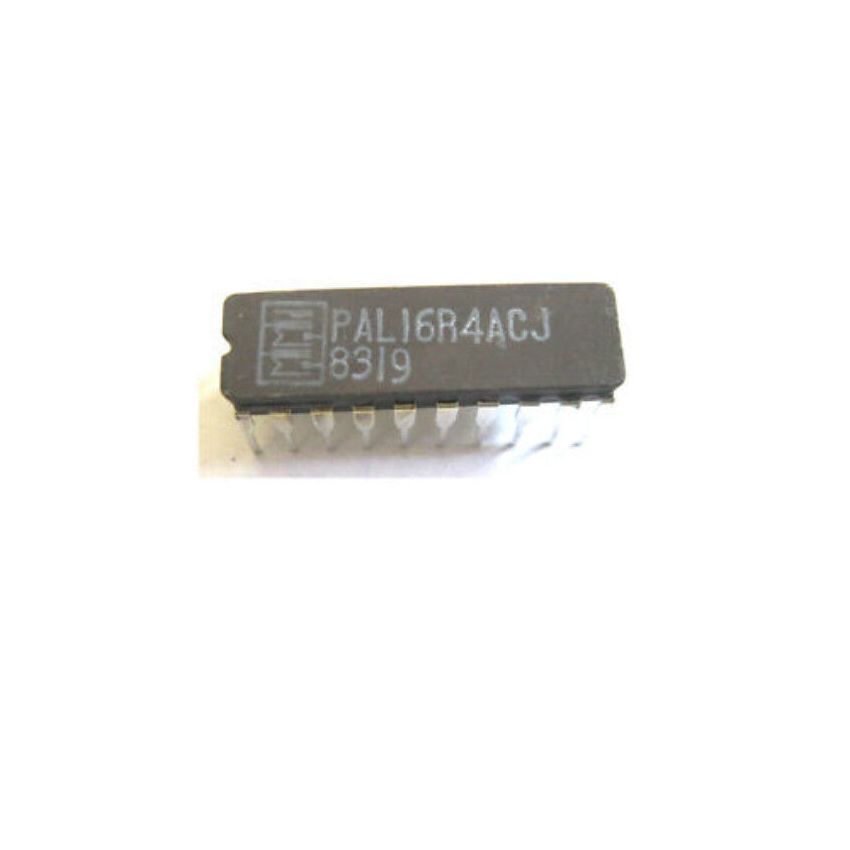

PAL16R4ACJ INTEGRATED CIRCUIT CDIP-20

The PAL16R4ACJ is a Programmable Array Logic (PAL) integrated circuit, offering a versatile solution for implementing custom logic functions in digital systems. This particular PAL comes in a CDIP-20 (Ceramic Dual In-line Package) package, known for its enhanced reliability and performance, especially in harsh environments. Like other PALs, the PAL16R4ACJ allows designers to replace numerous discrete logic gates with a single programmable device, streamlining circuit design and reducing component count. Its programmability enables rapid prototyping and easy modification of logic functions, making it a valuable tool for both development and production.

The PAL16R4ACJ features 16 inputs and 4 registered outputs, providing a flexible platform for implementing a variety of logic functions. The internal architecture consists of a programmable AND array and a fixed OR array, allowing for the creation of complex logic expressions by combining multiple input signals. The registered outputs, clocked for synchronous operation, ensure precise timing control and improved system stability. Programming the PAL16R4ACJ involves using specialized PAL programmers to configure the internal connections, tailoring the device to implement the desired logic functions. This programmability allows for easy adaptation to changing requirements and design iterations.

This integrated circuit finds applications in a wide range of digital systems, including address decoding, state machine implementation, and custom logic control. Its programmability makes it particularly well-suited for prototyping and experimentation, allowing designers to quickly test and refine their logic designs. The PAL16R4ACJ can also be deployed in production systems, offering a cost-effective and space-saving alternative to discrete logic gates. The CDIP-20 package provides enhanced reliability and performance, making it suitable for applications in demanding environments, such as industrial control systems and aerospace applications.

The benefits of using the PAL16R4ACJ extend beyond its programmability and versatility. The CDIP-20 package offers superior reliability and performance compared to plastic DIP packages, ensuring long-term stability and resistance to environmental factors. The registered outputs provide synchronous operation and improved timing control, enhancing system performance. The programmable AND array allows for the creation of complex logic expressions, enabling the implementation of sophisticated logic functions. Whether you're prototyping a new circuit or designing a production system for a harsh environment, the PAL16R4ACJ is a reliable and efficient choice.

Elevate your digital logic designs with the PAL16R4ACJ Integrated Circuit. Experience the flexibility and reliability of programmable logic in a robust ceramic package. With its 16 inputs, 4 registered outputs, and programmable AND array, the PAL16R4ACJ is the perfect choice for demanding applications requiring high reliability and performance. Order yours today and unlock the potential of custom logic design in challenging environments!
