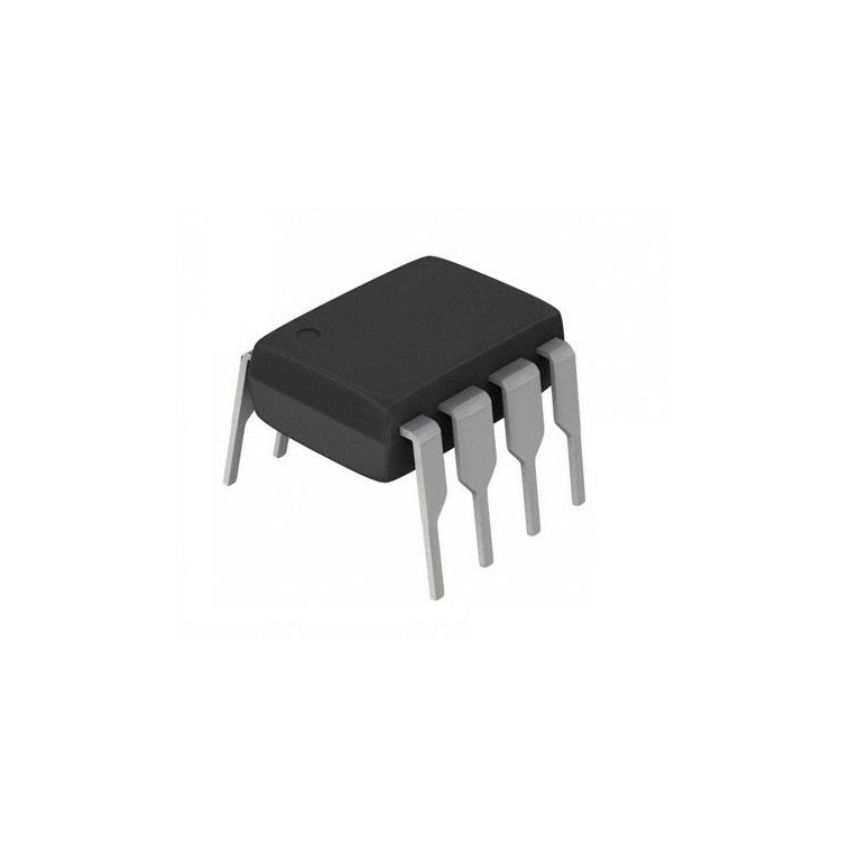

PC902 AC Input Type OPIC Photocoupler DIP-8

The PC902 AC Input OPIC Photocoupler is a high-performance optoisolator designed to provide a secure and reliable interface between high-voltage AC circuits and low-voltage digital logic. This component is essential for applications requiring signal isolation to protect sensitive microcontrollers and control systems from electrical noise and high-voltage transients. Unlike standard photocouplers that only accept DC inputs, the PC902 is specifically engineered to handle AC signals directly. This is achieved through its internal configuration, which includes two light-emitting diodes connected in inverse parallel. This design allows the device to respond to both halves of the AC cycle, making it an ideal choice for zero-crossing detection, AC line monitoring, and mains-powered switching applications where maintaining electrical separation is a critical safety requirement.

At the heart of the PC902 is Sharp's proprietary OPIC (Optical IC) technology. Unlike traditional phototransistor outputs, an OPIC device integrates a photodiode and a signal processing circuit onto a single chip. This integration results in much faster response times and higher data transfer rates compared to standard optocouplers. The PC902 provides a digital output that is compatible with TTL and CMOS logic levels, eliminating the need for additional amplification or wave-shaping circuitry. This makes it incredibly easy to integrate into modern digital designs. The device is housed in a standard DIP-8 package, which is perfect for through-hole mounting on printed circuit boards or for use in breadboarding during the prototyping phase. The robust isolation voltage rating ensures that even in the event of a catastrophic failure on the high-voltage side, your control logic remains safe.

The PC902 is widely used in industrial automation, where it serves as a bridge between the noisy environment of factory floor machinery and the precision of programmable logic controllers (PLCs). It is particularly effective at eliminating ground loops and suppressing electromagnetic interference that can otherwise cause data errors or system instability. In consumer electronics, the PC902 is often found in home appliances like washing machines and air conditioners, where it monitors the AC line status to synchronize internal timing with the 50Hz or 60Hz frequency of the power grid. This synchronization is vital for controlling motors and heating elements with high precision. By providing a clean, isolated digital signal, the PC902 ensures that the appliance operates efficiently and safely, regardless of the fluctuations or noise present on the power line.

One of the key advantages of the PC902 is its high common-mode rejection (CMR) ratio. This technical specification indicates the device's ability to ignore high-speed transients and noise that may appear on the input side. In environments with heavy electrical machinery, these transients are common and can easily trigger false signals in lesser-quality optoisolators. The PC902's advanced optical coupling and integrated circuitry ensure that only the intended signal is transmitted across the isolation barrier. This reliability makes it a preferred choice for telecommunications equipment and power supply feedback loops where signal integrity is paramount. Furthermore, the PC902 is designed to operate over a wide temperature range, ensuring consistent performance in both indoor consumer products and outdoor industrial installations where environmental conditions can be harsh.

For engineers and designers, the PC902 offers a streamlined solution for AC signal interfacing. Its internal logic output simplifies the design process, reducing the total component count and saving valuable PCB real estate. The DIP-8 form factor is also compatible with standard IC sockets, allowing for easy replacement or testing during the maintenance phase of a product's life. The high isolation voltage, typically rated in the thousands of volts, provides peace of mind that the device meets international safety standards for electrical separation. Whether you are designing a smart home power meter, an industrial motor controller, or a sophisticated medical device, the PC902 provides the high-speed, AC-compatible isolation you need to ensure system safety and performance. Its proven track record in the industry makes it a reliable staple for any high-voltage interfacing task.

When you source the PC902 AC Input OPIC Photocoupler from our store, you are choosing a component that has been vetted for quality and performance. We understand that isolation is a critical safety feature, which is why we only provide genuine parts that meet the original manufacturer's strict specifications. Each PC902 is carefully packaged to prevent damage during transit, ensuring it arrives at your door ready for installation. Whether you are an industrial engineer looking for reliable components for a large-scale rollout or a hobbyist working on a custom home automation project, the PC902 offers the perfect combination of AC compatibility and high-speed digital output. Protect your circuits and enhance your signal integrity today with the PC902. Order now to take advantage of our competitive pricing and ensure your next project is built on a foundation of safety and technical excellence.
