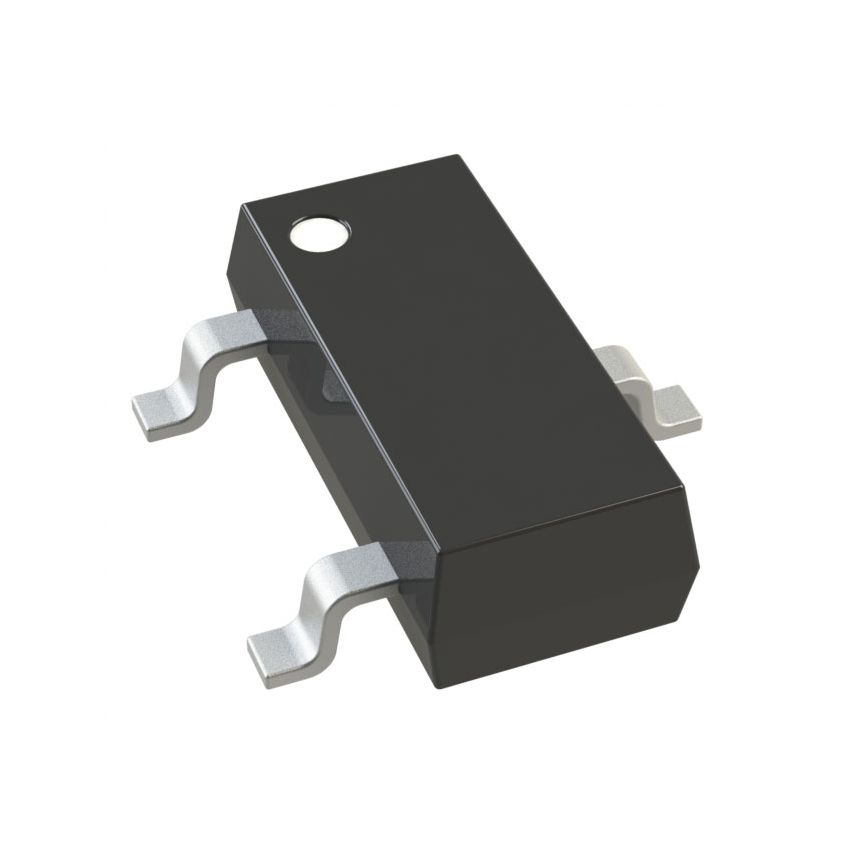

PMV48XPAR Transistor: P-MOSFET; unipolar; -20V; -2.2A; Idm: -14A

The PMV48XPAR is a P-channel MOSFET designed for efficient switching and amplification in various electronic applications. This unipolar transistor features a drain-source voltage (Vds) rating of -20V and a continuous drain current (Id) rating of -2.2A, making it suitable for low to medium power applications. It also boasts a pulsed drain current (Idm) rating of -14A, indicating its ability to handle short-duration high current surges. This MOSFET is designed for surface mount technology (SMT) assembly, enabling high-density circuit designs. Its robust design and stable electrical characteristics ensure reliable performance in a wide range of operating conditions.

This P-channel MOSFET operates by controlling the current flow between the drain and source terminals using a voltage applied to the gate terminal. A negative voltage applied to the gate enhances the channel conductivity, allowing current to flow. The PMV48XPAR features a low on-resistance (Rds(on)), which minimizes power losses and improves efficiency. The fast switching speed enables its use in high-frequency applications. The surface mount package provides excellent thermal performance, allowing for efficient heat dissipation. The device is designed to be RoHS (Restriction of Hazardous Substances) compliant, ensuring environmental friendliness. Its robust design and stable electrical characteristics ensure long-term performance and minimal drift over time.

The PMV48XPAR transistor finds applications in various electronic circuits, including load switching, power management, and motor control. In load switching applications, it can be used to control the power supply to various components or subsystems. In power management applications, it can be used in DC-DC converters and battery chargers. In motor control applications, it can be used to drive small DC motors and other inductive loads. Its low on-resistance and fast switching speed make it suitable for applications requiring high efficiency and fast response times. The surface mount package allows for easy integration into densely populated circuit boards.

When selecting a MOSFET for your application, consider the key specifications of the PMV48XPAR, including its drain-source voltage, drain current, on-resistance, and pulsed drain current. Ensure that these parameters meet the requirements of your circuit to ensure optimal performance and reliability. The surface mount package simplifies assembly and provides good thermal performance. The transistor's low gate charge and fast switching speed enable efficient operation in high-frequency circuits. Its robust design and stable electrical characteristics ensure long-term reliability.

Power up your electronic designs with the PMV48XPAR P-channel MOSFET. Its compact size, low on-resistance, fast switching speed, and high pulsed current capability make it an excellent choice for a wide range of applications. Whether you're designing power supplies, load switches, or motor controllers, this MOSFET will provide the performance and reliability you need. Don't compromise on quality – choose the PMV48XPAR for your next project. Add to cart now and experience the difference!
