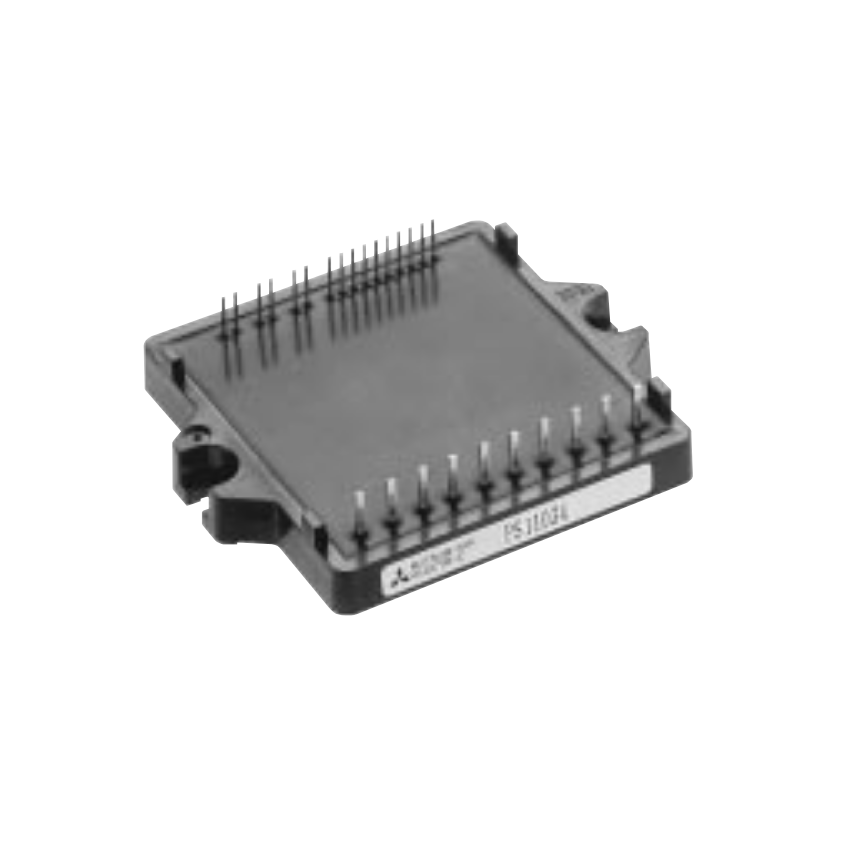

PS11034 MOD IPM 3PHASE IGBT 600V 15A

The PS11034 is a high-performance Intelligent Power Module (IPM) designed for controlling three-phase AC motors in a wide range of applications. This module integrates six IGBTs (Insulated Gate Bipolar Transistors) rated for 600V and 15A, along with gate drivers and protection circuitry, into a single compact package. The PS11034 simplifies the design and implementation of motor control systems, reducing the number of external components required and improving overall system reliability. Its integrated gate drivers provide optimal switching performance for the IGBTs, minimizing switching losses and improving efficiency. The module also incorporates various protection features, such as overcurrent protection, short-circuit protection, and undervoltage lockout, safeguarding the IGBTs and the motor from damage. The PS11034 is commonly used in variable frequency drives (VFDs), servo drives, and other motor control applications.

Its robust design and comprehensive protection features make it a preferred choice for both industrial and commercial applications. The module's compact size and integrated functionality simplify the assembly process, reducing manufacturing time and costs. The PS11034 also features a built-in bootstrap diode, simplifying the design of the high-side gate drive circuitry. This feature further reduces the number of external components required and improves overall system efficiency. The PS11034 is manufactured using advanced semiconductor technology, ensuring high reliability and long-term stability. Its low thermal resistance allows for efficient heat dissipation, enabling operation at high power levels.

Whether you are designing a new motor control system or upgrading an existing one, the PS11034 offers a cost-effective and high-performance solution. Its integrated functionality, comprehensive protection features, and robust design make it an ideal choice for a wide range of applications. Ensure efficient and reliable motor control with the PS11034 IPM. Order yours today and experience the benefits of advanced power module technology!
