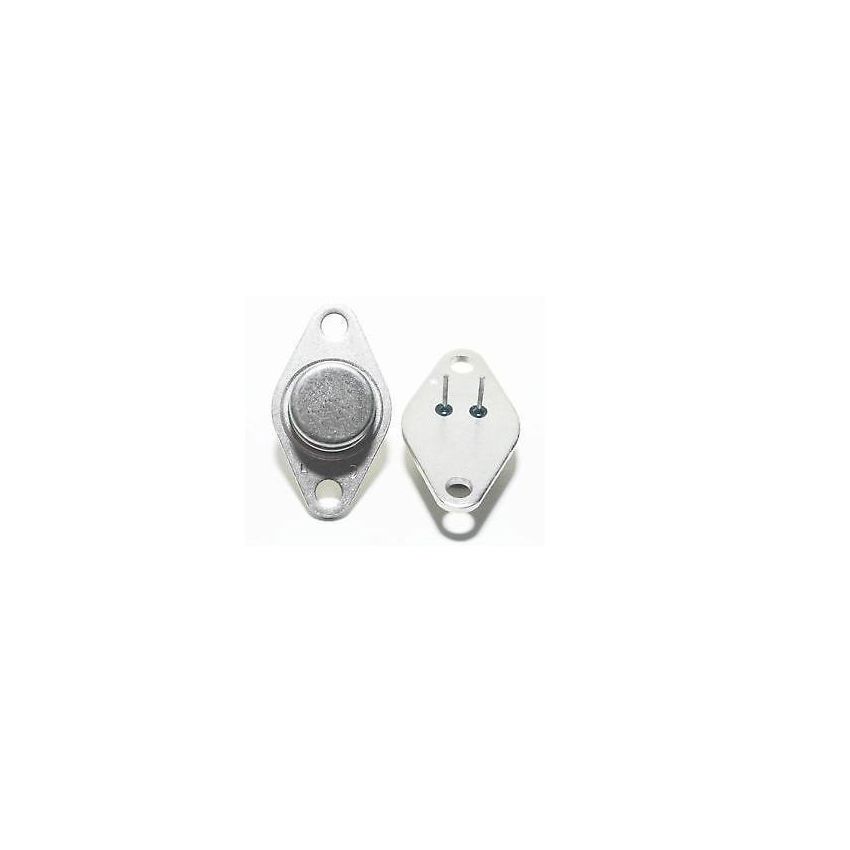

RC4194TK Dual Tracking Voltage Regulators TO66

The RC4194TK is a specialized dual tracking voltage regulator designed to provide balanced positive and negative supply rails for precision analog circuitry. In the world of high-fidelity audio, instrumentation, and sensitive signal processing, maintaining a perfectly symmetrical power supply is crucial for minimizing distortion and ensuring accurate signal reproduction. The RC4194TK simplifies this task by offering a single-chip solution that tracks both outputs with remarkable precision. This device is particularly valued in legacy systems and high-reliability industrial equipment where the stability of the analog ground and the balance between power rails are paramount. By integrating both regulators into one package, the device ensures that thermal variations affect both rails equally, maintaining the tracking accuracy across a wide range of operating temperatures and load conditions.

One of the primary advantages of the RC4194TK is its ease of use and minimal requirement for external components. The output voltages can be adjusted simultaneously with a single external resistor, allowing designers to set the desired rail voltage for both the positive and negative sides with a single adjustment point. This feature not only saves board space but also eliminates the need for matched pairs of resistors that would otherwise be required to keep two independent regulators in sync. The internal reference and error amplifiers are designed for high stability and low noise, ensuring that the regulated output is clean and free from the ripples that can degrade the performance of operational amplifiers and data converters. This makes the RC4194TK an excellent choice for powering precision measurement front-ends.

The RC4194TK is housed in a robust TO-66 metal can package, which is renowned for its excellent thermal properties and mechanical durability. Unlike plastic packages, the TO-66 metal enclosure provides a low thermal resistance path to an external heatsink, allowing the regulator to dissipate significant amounts of power without reaching critical junction temperatures. This makes it ideal for applications where the input-to-output voltage differential is high or where the load current is substantial. The hermetic nature of the metal package also provides superior protection against environmental factors such as humidity and atmospheric contaminants, which is vital for equipment intended for use in harsh industrial or aerospace environments. The physical design of the TO-66 package also offers a secure mounting method that can withstand high levels of vibration.

Safety features are deeply integrated into the RC4194TK to protect both the regulator itself and the sensitive circuitry it powers. It includes internal current limiting, which prevents the device from being destroyed in the event of an output short circuit. Additionally, a thermal shutdown circuit is incorporated to turn off the regulator if it exceeds its safe operating temperature, providing a secondary layer of protection against cooling failures or excessive ambient heat. These features ensure that the RC4194TK is a reliable component that adds to the overall longevity of the system. For engineers maintaining older equipment or designing new systems that require the utmost in power supply stability, these built-in safeguards offer peace of mind and reduce the risk of costly and unexpected system-wide failures.

In terms of application, the RC4194TK has a long-standing history of performance in professional audio consoles, laboratory instrumentation, and medical diagnostic equipment. Its ability to provide a clean, balanced supply makes it the heart of many high-performance analog systems. While newer surface-mount technologies have become common, the RC4194TK remains a critical component for repair and maintenance of high-value legacy hardware, as well as for specialized new builds where the thermal and electrical characteristics of a TO-66 package are preferred. Its tracking accuracy ensures that the common-mode rejection ratio of the powered op-amps is maximized, leading to cleaner signals and better overall system performance. This regulator is a testament to the enduring value of well-engineered analog power solutions in a digital world.

Whether you are refurbishing a classic piece of studio gear or developing a new precision instrument, the RC4194TK Dual Tracking Voltage Regulator offers the performance and reliability you need. Its unique ability to provide perfectly balanced power rails with minimal external circuitry makes it a standout choice for any designer focused on analog excellence. By choosing the RC4194TK, you are opting for a proven solution that has supported some of the most sensitive electronic systems for decades. We provide high-quality, authentic units to ensure your projects meet their original specifications or reach new heights of precision. Don't compromise on your power supply architecture; invest in the stability and accuracy of the RC4194TK today. Order now to take advantage of our specialized inventory and ensure your analog systems have the balanced power they deserve.
