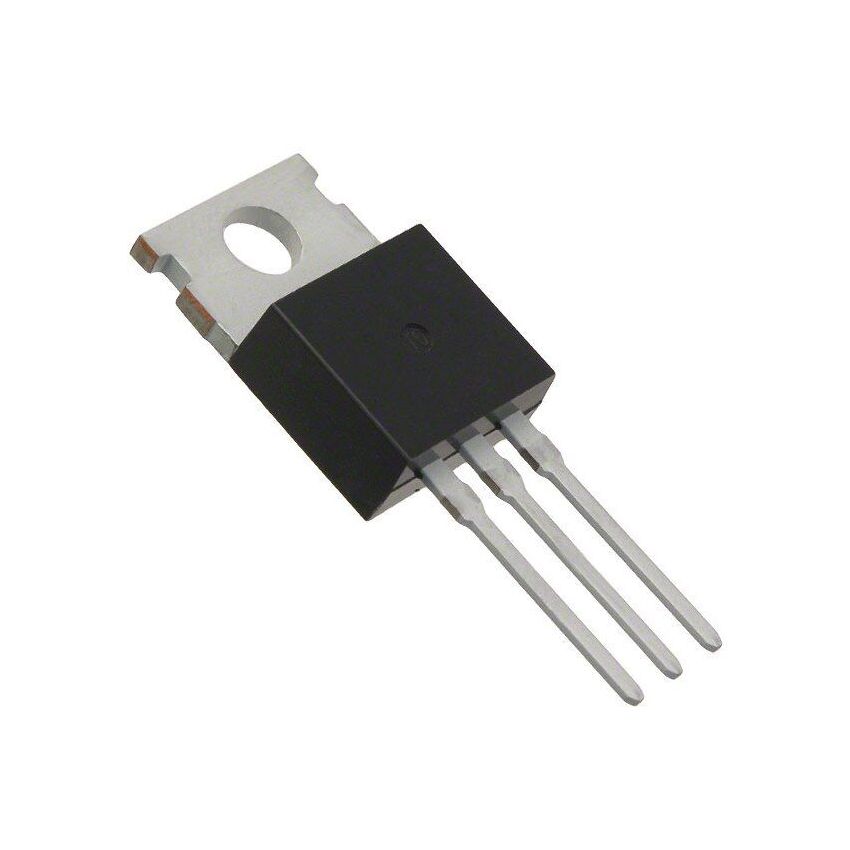

RFP14N05L TRANSISTOR TO-220

The RFP14N05L is a robust and efficient N-channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) designed for a wide range of power switching and amplification applications. Encased in a TO-220 package, this transistor offers excellent thermal performance and ease of mounting, making it suitable for both through-hole and heatsink applications. With a drain-source voltage (Vds) rating of 50V and a continuous drain current (Id) rating of 14A, the RFP14N05L can handle significant power levels, making it ideal for power supplies, motor control circuits, and other high-current applications. Its low on-resistance (Rds(on)) minimizes power losses and improves overall efficiency. This transistor is a reliable choice for various electronic designs.

The RFP14N05L features a low gate threshold voltage (Vgs(th)), allowing it to be easily driven by logic-level signals, simplifying circuit design and reducing the need for complex gate drive circuitry. The TO-220 package provides excellent thermal conductivity, allowing for efficient heat dissipation when mounted on a heatsink. The transistor's fast switching speeds enable efficient operation in high-frequency applications. The RFP14N05L is designed for reliable performance and long-term stability, making it a trusted choice for demanding applications. Its robust construction and high-quality materials ensure consistent performance even under harsh operating conditions. This MOSFET is a versatile component for any power electronics project.

The RFP14N05L finds applications in a wide range of power switching and amplification circuits. It is commonly used in DC-DC converters, motor drivers, and power inverters. It is also suitable for use in lighting control circuits, solenoid drivers, and other high-current applications. Its low on-resistance and fast switching speeds make it ideal for applications requiring high efficiency and low power losses. The RFP14N05L's ability to handle significant power levels makes it a versatile component for various power electronics designs. Whether you are building a power supply, a motor controller, or any other power-related circuit, the RFP14N05L is a reliable and efficient choice.

When working with the RFP14N05L, it is important to follow proper design and application guidelines to ensure optimal performance and prevent damage to the transistor. Use appropriate gate resistors to limit the gate current and prevent oscillations. Ensure proper heatsinking to dissipate heat generated by the transistor, especially at high power levels. Avoid exceeding the maximum voltage and current ratings specified in the datasheet. Use appropriate decoupling capacitors to minimize noise and improve stability. When soldering the transistor to a PCB, use a low-wattage soldering iron and avoid overheating the pins. By following these guidelines, you can ensure the reliable and efficient operation of the RFP14N05L in your power electronics circuits.

Enhance the performance and reliability of your power switching circuits with the RFP14N05L Transistor. Its robust design, low on-resistance, and versatile applications make it an essential component for any electronics enthusiast or professional. Don't compromise on the quality and efficiency of your power circuits – choose the RFP14N05L for its superior performance. Order your RFP14N05L today and experience the difference it makes in your power electronics projects. Take advantage of our competitive pricing and fast shipping. Add the RFP14N05L to your cart now and start building with confidence.
