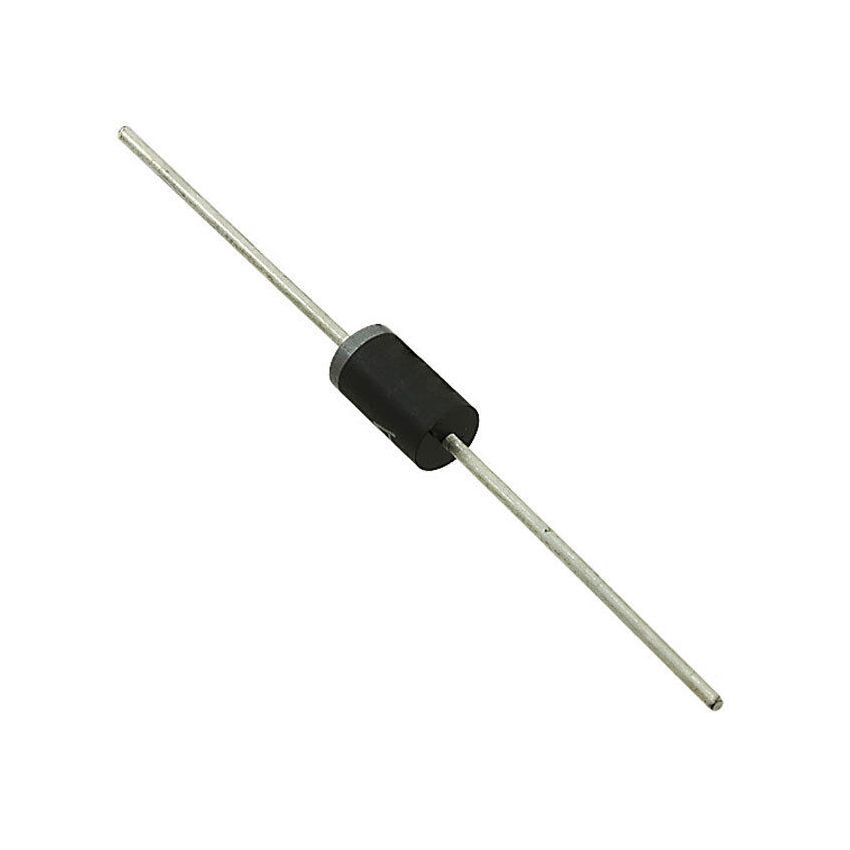

RU3A Fast Recovery Rectifier Diode

FAQs for Products

1. What is the typical reverse recovery time (Trr) of the RU3A Fast Recovery Rectifier Diode, and how does it impact high-frequency switching performance?

   The RU3A Fast Recovery Rectifier Diode is specifically engineered for high-speed switching environments, featuring a reverse recovery time typically in the range of 100 to 400 nanoseconds. In high-frequency applications such as Switch Mode Power Supplies (SMPS) or DC-DC converters, the recovery time is a critical parameter. When a diode transitions from a conducting to a non-conducting state, a brief period occurs where current flows in the reverse direction. The RU3A Fast Recovery Rectifier Diode minimizes this duration, which significantly reduces the energy lost as heat during each switching cycle. For engineers designing circuits operating at 20kHz or higher, using this fast recovery component ensures higher efficiency and lower electromagnetic interference (EMI) compared to standard recovery diodes. By reducing the 'switching stress' on associated transistors like MOSFETs or IGBTs, the RU3A Fast Recovery Rectifier Diode helps extend the overall lifespan of the power stage and improves the thermal profile of the entire PCB assembly, making it a preferred choice for precision industrial electronics.

2. How should thermal dissipation be managed when operating the RU3A Fast Recovery Rectifier Diode at its maximum 3A forward current rating?

   Operating the RU3A Fast Recovery Rectifier Diode at its maximum rated forward current of 3A requires careful consideration of thermal management to prevent junction overheating and potential thermal runaway. While the RU3A Fast Recovery Rectifier Diode is designed for robustness, the forward voltage drop (typically around 1.1V to 1.3V) generates internal heat that must be dissipated through the leads and into the surrounding environment. To ensure long-term reliability, it is highly recommended to use wide PCB traces or dedicated copper pours around the solder pads to act as a heat sink. Maintaining shorter lead lengths can also improve heat transfer from the diode body to the board. In high-density enclosures with limited airflow, engineers should consider derating the RU3A Fast Recovery Rectifier Diode or implementing active cooling. Monitoring the ambient temperature is essential, as the maximum current capacity decreases as the temperature rises. Proper thermal design ensures that the RU3A Fast Recovery Rectifier Diode maintains its fast switching characteristics without suffering from performance degradation or catastrophic failure due to excessive heat accumulation.

3. What is the Peak Repetitive Reverse Voltage (VRRM) for the RU3A Fast Recovery Rectifier Diode, and what safety margins are recommended?

   The RU3A Fast Recovery Rectifier Diode typically features a Peak Repetitive Reverse Voltage (VRRM) of 600V, making it suitable for a wide variety of AC-to-DC rectification tasks in both 110V and 220V systems. When selecting the RU3A Fast Recovery Rectifier Diode for industrial power supplies, it is a standard engineering practice to maintain a safety margin of at least 20% to 50% above the expected peak voltage spikes. In environments where inductive loads or line transients are common, the reverse voltage can momentarily exceed the nominal input voltage. Utilizing the RU3A Fast Recovery Rectifier Diode in a 400V DC bus application provides a comfortable buffer, ensuring that the semiconductor junction does not reach its breakdown point during transient events. Furthermore, if your application involves high-speed motor control or inverter stages, the 600V rating of the RU3A Fast Recovery Rectifier Diode provides the necessary durability to withstand the back-EMF generated by inductive components. Always consult the specific datasheet for the RU3A Fast Recovery Rectifier Diode to verify the exact VRRM for your manufacturing batch to ensure compliance with safety standards.

4. How does the RU3A Fast Recovery Rectifier Diode compare to standard recovery diodes like the 1N5408 in inverter applications?

   Choosing the RU3A Fast Recovery Rectifier Diode over a standard recovery diode like the 1N5408 is essential for any application involving high-frequency inversion or PWM (Pulse Width Modulation). While both might share a similar 3A current rating, a standard diode like the 1N5408 has a very slow reverse recovery time, often measured in microseconds. If used in a high-speed inverter, a standard diode would remain conductive for too long during the switch-off phase, leading to massive power losses and potentially causing a short circuit (shoot-through) across the power rails. The RU3A Fast Recovery Rectifier Diode, with its nanosecond-range recovery, clears the stored charge almost instantly. This allows the RU3A Fast Recovery Rectifier Diode to operate coolly and efficiently at frequencies where a standard diode would simply overheat and fail. For engineers upgrading existing designs or building high-efficiency solar inverters and UPS systems, the RU3A Fast Recovery Rectifier Diode is the technically superior choice to ensure signal integrity and minimize switching-related power dissipation.

5. Can the RU3A Fast Recovery Rectifier Diode handle high inrush currents during the startup of capacitive loads?

   Yes, the RU3A Fast Recovery Rectifier Diode is designed with a substantial non-repetitive peak surge current (IFSM) rating, which is typically around 100A to 150A for a single half-sine wave cycle. This surge capability is critical when the RU3A Fast Recovery Rectifier Diode is used in the input stage of a power supply where large electrolytic filter capacitors are present. At the moment of power-on, these capacitors act as near-short circuits, drawing a massive instantaneous inrush current. The robust internal construction of the RU3A Fast Recovery Rectifier Diode allows it to withstand these brief but intense current peaks without degradation of the silicon junction. However, for designs where frequent power cycling is expected, it is still advisable to use NTC thermistors or soft-start circuits to limit the peak current. By utilizing the RU3A Fast Recovery Rectifier Diode, designers gain a component that balances high-speed performance with the physical durability required to survive the harsh electrical environment of initial power-up sequences in industrial control systems.

6. Is the RU3A Fast Recovery Rectifier Diode suitable for use in snubber circuits for MOSFET and IGBT protection?

   The RU3A Fast Recovery Rectifier Diode is an excellent candidate for RCD (Resistor-Capacitor-Diode) snubber circuits, which are used to protect switching transistors from high-voltage transients. In flyback converters or motor drive stages, the leakage inductance of the transformer or motor windings can cause significant voltage spikes when a MOSFET turns off. The RU3A Fast Recovery Rectifier Diode acts quickly to clamp these spikes, directing the energy into the snubber capacitor. Because snubber diodes must engage and disengage at the same frequency as the main switch, the fast recovery characteristic of the RU3A Fast Recovery Rectifier Diode is vital. If a slow diode were used, the snubber itself would become inefficient and could even resonate with the circuit's parasitic capacitance, creating more noise. The RU3A Fast Recovery Rectifier Diode ensures that the clamping action is crisp and that reverse current flow is minimized, thereby protecting sensitive gate drivers and the primary switching element from overvoltage failure while maintaining the overall efficiency of the snubber network.

7. What are the advantages of the RU3A Fast Recovery Rectifier Diode in terms of Forward Voltage Drop (VF) versus efficiency?

   The RU3A Fast Recovery Rectifier Diode offers a balanced trade-off between forward voltage drop and switching speed. While Schottky diodes have a lower forward voltage drop (VF), they are often limited by lower reverse voltage ratings and higher leakage currents at elevated temperatures. The RU3A Fast Recovery Rectifier Diode provides a VF typically between 1.1V and 1.3V at its rated 3A current, which is standard for fast recovery silicon technology. In high-voltage applications (above 100V), the RU3A Fast Recovery Rectifier Diode is often more efficient than other options because its low reverse leakage current prevents significant power loss during the 'off' state. This is particularly important in battery-powered industrial equipment or energy-efficient LED drivers where every milliwatt counts. By using the RU3A Fast Recovery Rectifier Diode, you ensure that the power lost during conduction is kept within manageable limits while gaining the high-speed benefits necessary for modern, compact power conversion. This makes the RU3A Fast Recovery Rectifier Diode a versatile component for engineers who need reliability across a wide range of operating voltages and frequencies.
