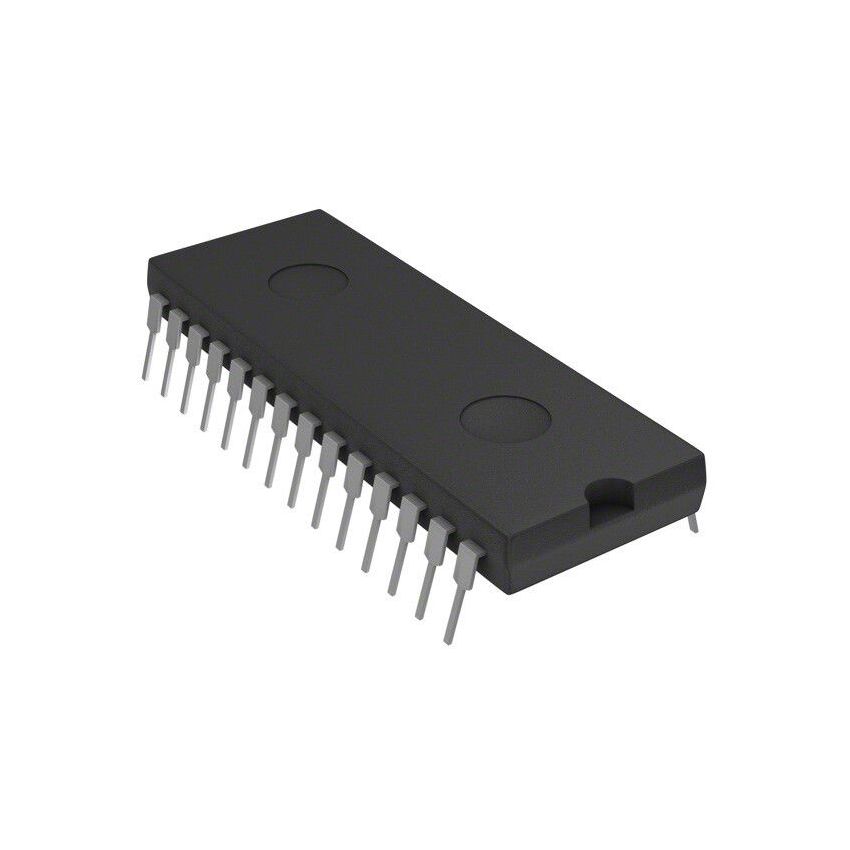

SAA3010P INTEGRATED CIRCUIT DIP-28

The SAA3010P is a highly specialized integrated circuit designed primarily for infrared remote control systems utilizing the industry-standard RC-5 transmission protocol. This sophisticated component acts as the central processor for handheld remote units, converting user inputs into precise digital signals that are transmitted via infrared light to a receiving device. In the world of consumer electronics, the SAA3010P is renowned for its reliability and its ability to provide stable, interference-free communication across a wide range of household appliances. Its integration into a DIP-28 package makes it an accessible choice for both professional manufacturing and hobbyist repair projects, offering a straightforward mounting process on standard printed circuit boards. By choosing this IC, you are ensuring that your remote control hardware operates with the level of precision expected in high-end audio-visual equipment and automated home systems.

Technically, the SAA3010P is optimized for low-voltage operation, which is critical for maximizing the battery life of portable remote control devices. It features a wide supply voltage range that allows it to function effectively even as battery levels begin to deplete, ensuring consistent performance over long periods. The internal oscillator requires minimal external components, which simplifies the overall circuit design and reduces the footprint on the PCB. Furthermore, the chip includes advanced debounce logic to prevent double-triggering of commands, ensuring that each button press is registered exactly once. This level of technical refinement makes the SAA3010P a preferred choice for engineers who demand high signal integrity and robust performance in their wireless control solutions, providing a solid foundation for any IR-based project.

One of the primary benefits of using the SAA3010P is its native compatibility with the RC-5 protocol, which is a bi-phase coding system that offers excellent noise immunity. This protocol allows for the control of up to 32 different device addresses and 64 unique commands per address, providing extensive flexibility for complex multi-device environments. Because the RC-5 standard is so widely adopted, using the SAA3010P ensures that your transmitter will be compatible with a vast ecosystem of existing infrared receivers and universal remote systems. This interoperability is a significant advantage for developers looking to create products that fit into modern smart homes or for technicians repairing legacy Hi-Fi systems, televisions, and video players that rely on this specific encoding method for operation.

In terms of application, the SAA3010P is exceptionally versatile, finding its way into everything from high-end home theater systems to industrial control panels. Its 28-pin configuration allows for a large matrix of buttons, enabling the creation of full-featured remotes with numerous function keys without the need for additional multiplexing hardware. For DIY enthusiasts and electronics students, this IC serves as an excellent educational tool for understanding infrared communication and digital logic. The chip's ability to handle complex signal modulation internally means that users can focus on the ergonomic design and user interface of their remote, rather than getting bogged down in the minutiae of signal timing and pulse-width modulation, which are handled automatically by the silicon.

Durability and long-term stability are key hallmarks of the SAA3010P. Manufactured using high-quality semiconductor processes, this integrated circuit is designed to withstand the typical wear and tear associated with consumer electronics. It operates efficiently across a broad temperature range, ensuring that the remote remains functional in various environmental conditions. The DIP-28 form factor provides excellent mechanical stability when soldered, reducing the risk of connection failure due to physical shocks or drops. This resilience makes it a cost-effective solution for both mass production and individual repairs, as it minimizes the need for future maintenance or replacements. When you integrate the SAA3010P into your electronic designs, you are investing in a proven technology that has powered millions of devices worldwide.

Whether you are a professional engineer sourcing components for a new product line or a dedicated hobbyist looking to restore a piece of classic electronic equipment, the SAA3010P Infrared Remote Control Transmitter IC is the definitive choice for RC-5 based communication. Its combination of low power consumption, high signal integrity, and ease of integration makes it a standout component in the field of infrared technology. Don't settle for inferior clones or generic alternatives when you can have the precision and reliability of an industry-standard IC. Enhance your project's performance and ensure total compatibility by selecting this high-quality integrated circuit today. Order your SAA3010P now to take advantage of professional-grade encoding and bring your wireless control projects to life with unparalleled accuracy and efficiency.
