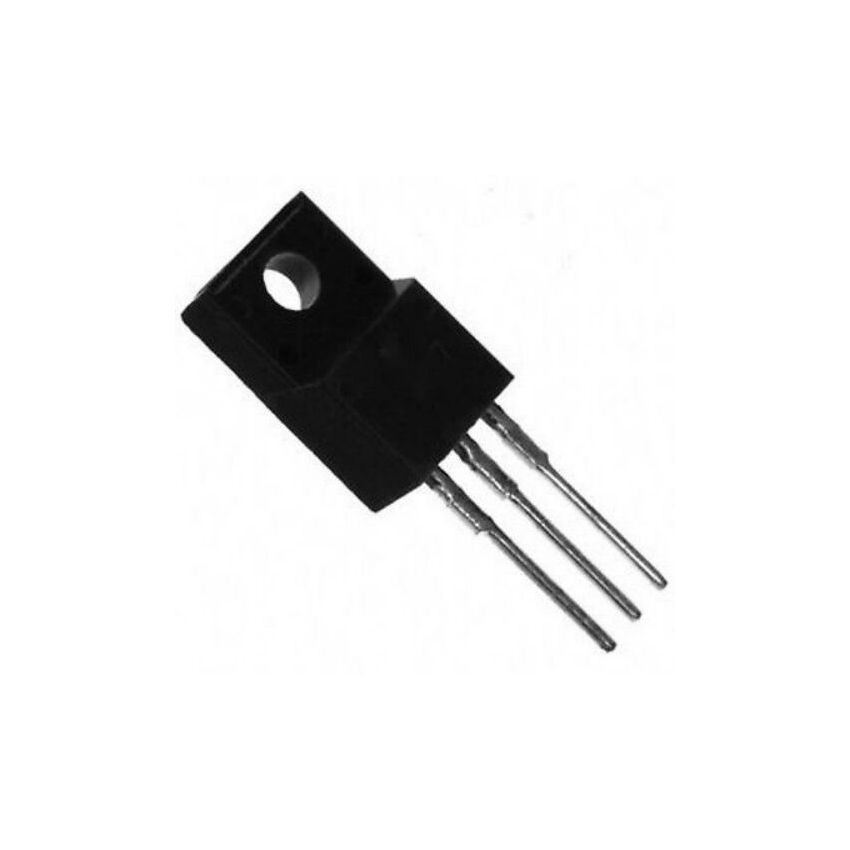

SFS9620 TRANSISTOR TO-220F

The SFS9620 is a high-performance P-channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) housed in a TO-220F package, designed for a wide range of power switching and amplification applications. The “F” suffix indicates a fully insulated package, providing enhanced safety by electrically isolating the transistor from the heatsink, which is crucial in applications where electrical isolation is a priority. This P-channel MOSFET offers excellent switching characteristics, low on-resistance (Rds(on)), and high drain-source voltage (Vds) capabilities, making it suitable for use in power supplies, motor control circuits, and audio amplifiers. Its TO-220F package facilitates efficient heat dissipation, allowing it to handle higher power levels without overheating. The SFS9620 is designed to switch efficiently with minimal power loss, making it an ideal choice for energy-conscious applications. Its fully insulated package simplifies mounting and eliminates the need for additional insulation materials, reducing assembly time and costs.

When implementing the SFS9620, consider its key electrical parameters, such as gate threshold voltage (Vgs(th)), gate charge (Qg), and continuous drain current (Id), to ensure proper operation and optimize performance. Understanding the datasheet specifications is essential for effective circuit design and component selection. The SFS9620 P-channel MOSFET offers a reliable and cost-effective solution for power switching and amplification needs. Its robust design and fully insulated package make it a versatile component for both professional and hobbyist applications. Common applications include DC-DC converters, load switches, and audio power amplifiers. The SFS9620's low on-resistance minimizes power losses, contributing to improved overall efficiency and reduced heat generation.

Its fast switching speed enables efficient operation in high-frequency circuits. The integrated body diode facilitates freewheeling operation in inductive load applications. Whether you are designing a power supply, a motor control circuit, or an audio amplifier, the SFS9620 provides the performance and reliability you need. Its insulated package simplifies mounting and enhances safety, making it a preferred choice for demanding applications. The SFS9620's P-channel configuration allows for easy interfacing with low-side drivers, simplifying circuit design and reducing component count. Its robust construction ensures long-term reliability and stable performance under various operating conditions.

Upgrade your power switching and amplification circuits with the SFS9620 P-channel MOSFET and experience the benefits of its high performance, efficient operation, and enhanced safety features. Don't miss out on the opportunity to improve the reliability and efficiency of your electronic designs. Order the SFS9620 now and take your projects to the next level.
