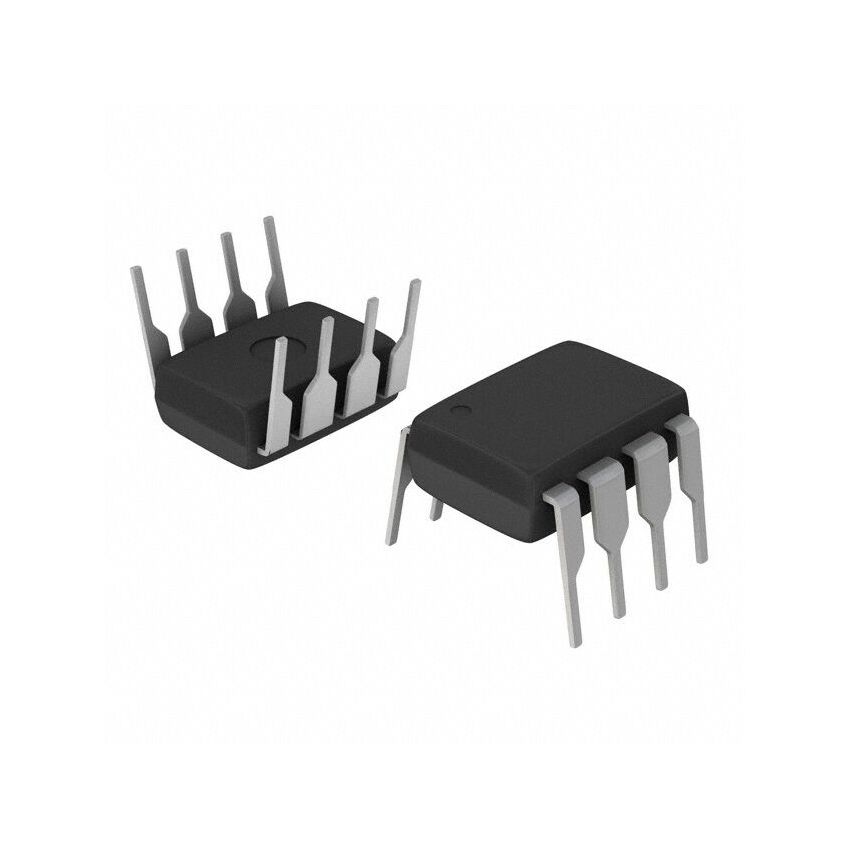

SG3842M INTEGRATED CIRCUIT SG3842M DIP-8

The SG3842M INTEGRATED CIRCUIT is a high-performance, fixed-frequency current-mode PWM controller, widely used in off-line and DC-to-DC converter applications. Encased in a DIP-8 package, the SG3842M offers ease of integration and robust performance, making it a staple in power supply designs. This IC is designed to provide the necessary control signals for driving external MOSFETs or bipolar transistors, enabling efficient and reliable power conversion. Its features include a precision oscillator, a current sense comparator, a PWM logic, and a totem-pole output driver, all integrated into a single chip.

This integrated circuit is engineered to deliver stable and precise PWM control, ensuring efficient power conversion and minimal output ripple. The SG3842M features a current-mode control architecture, which provides inherent line voltage feed-forward, improved noise immunity, and simplified loop compensation. Its high-frequency operation allows for smaller and lighter power supply designs, reducing overall system cost and size. The IC also includes built-in protection features, such as over-voltage protection, under-voltage lockout, and current limiting, enhancing the reliability and safety of the power supply.

The SG3842M is designed for ease of use, with a straightforward pinout and minimal external components required. Its DIP-8 package allows for easy prototyping and integration into existing designs. The IC's high-performance oscillator ensures stable and accurate PWM control, while its current sense comparator provides precise current limiting and over-current protection. The totem-pole output driver is capable of driving a wide range of MOSFETs and bipolar transistors, making the SG3842M a versatile choice for various power supply applications.

Ideal for use in power adapters, battery chargers, and industrial power supplies, the SG3842M offers a cost-effective solution for PWM control needs. Its high-frequency operation and current-mode control architecture enable efficient and reliable power conversion. The IC's built-in protection features ensure safe and stable operation, even under demanding conditions. Whether you are designing a new power supply or upgrading an existing one, the SG3842M can help you achieve superior performance and reliability.

Upgrade your power supply designs with the SG3842M INTEGRATED CIRCUIT. Benefit from its high performance, ease of use, and robust protection features. Order yours today and take your designs to the next level. Don't miss out on the opportunity to improve the efficiency and reliability of your power supplies. Purchase the SG3842M now and experience the power of advanced PWM control technology. Invest in quality, invest in performance, invest in the SG3842M.
