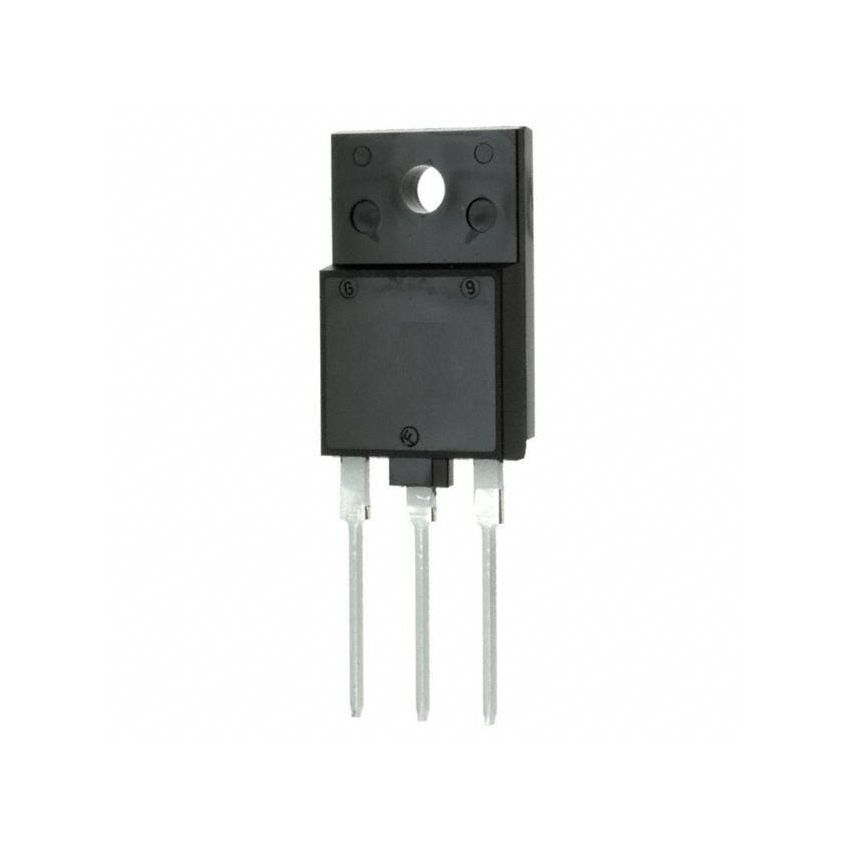

SGF80N60UFTU TRANSISTOR TO -3PF

The SGF80N60UFTU is a high-performance N-channel MOSFET transistor designed for demanding power switching applications. Encased in a robust TO-3PF package, this transistor offers exceptional thermal performance and reliability. Its ultra-fast recovery diode enhances its suitability for applications requiring rapid switching speeds, such as power supplies, motor drives, and inverters. The SGF80N60UFTU is engineered to minimize switching losses and improve overall system efficiency, making it an ideal choice for energy-conscious designs. Its high voltage and current ratings ensure reliable operation in high-power environments, providing a stable and efficient solution for various industrial and commercial applications.

Key specifications of the SGF80N60UFTU include a drain-source voltage (VDS) of 600V, a continuous drain current (ID) of 80A, and a pulsed drain current (IDM) of 240A. The transistor's low on-resistance (RDS(on)) of typically 0.065 ohms minimizes conduction losses, contributing to improved efficiency. Its gate charge (Qg) of 65 nC ensures fast switching speeds and reduces switching losses. The TO-3PF package provides excellent thermal conductivity, allowing for efficient heat dissipation and ensuring reliable operation even at high power levels. The SGF80N60UFTU also features an avalanche energy rating, providing added protection against voltage transients and ensuring robust performance in demanding applications.

In practical applications, the SGF80N60UFTU is commonly used in switch-mode power supplies (SMPS), where its fast switching speed and low on-resistance contribute to high efficiency and reduced heat generation. It is also employed in motor drives, providing precise control and efficient power delivery to electric motors. In inverter applications, the SGF80N60UFTU enables the conversion of DC power to AC power with minimal losses. Its robust design and high voltage rating make it suitable for use in renewable energy systems, such as solar inverters and wind turbine converters. Furthermore, the SGF80N60UFTU is used in uninterruptible power supplies (UPS) to provide reliable backup power in the event of a power outage.

When selecting the SGF80N60UFTU, consider its key parameters in relation to your specific application requirements. Ensure that the voltage and current ratings are sufficient for the intended circuit. Pay attention to the on-resistance (RDS(on)) to minimize conduction losses. Optimize the gate drive circuitry to achieve the desired switching speed and minimize switching losses. Utilize appropriate heat sinking to ensure efficient heat dissipation and maintain reliable operation. Always refer to the datasheet for detailed specifications and application notes. The SGF80N60UFTU offers a combination of high performance, reliability, and efficiency, making it a valuable component for demanding power switching applications.

Upgrade your power switching applications with the high-performance SGF80N60UFTU transistor. Its fast switching speed, low on-resistance, and robust design ensure efficient and reliable operation in demanding environments. Whether you're designing a power supply, a motor drive, or an inverter, the SGF80N60UFTU will deliver exceptional performance. Order your SGF80N60UFTU transistors today and experience the difference in your circuits. With its superior thermal performance and high voltage rating, the SGF80N60UFTU is the perfect choice for your high-power applications. Add to cart now and take your projects to the next level!
